1. Application of the tri axle flat deck trailer
2. Tri axle flat deck trailer for sale in Nigeria
3. Detailed explanation of the tri axle flat deck trailer
The function of a tri axle trailer for sale is made possible through its structure’s design and manufacture. Basically, it is a transport equipment mainly of a steel construction defining its frame. It also comprises a lighting system, brakes and tires. It is carefully designed to desired heights and weight capacity to safely load and transport cargoes from one location to another. Use flat deck trailers to transfer cargo at the shipper’s warehouse. Unloaded to the consignee’s warehouse, when changing trailer or boat on the way, there is no need to take the goods out of the box and change them.

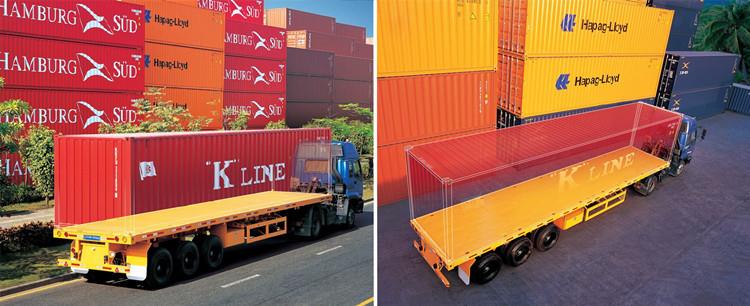

The size of the tri axle flat deck trailer loading area is determined according to the standard container size. A twist lock device for fixing the container is provided at positions corresponding to the four corners of the bottom of the container. Flat deck trailers are special trailers for transporting containers.
Tri Axle Flat Deck Trailer Manufacturer - TITAN Vehicle
The agent from Nigeria purchased 10 units of tri axle trailer. In fact, the customer bought a tri axle flat deck trailer of his own in 2020. The customer is very satisfied with TITAN’s tri axle flat deck trailer. Many local customers have seen the customer’s semi trailer. He said that he helped purchase at TITAN, thinking that many local customers did not understand the import process. In the next year or so, customers gradually became TITAN's agents.
The quality of the semi trailer and the service of our sales manager Barry have exceeded his expectations. Customers also said they would recommend friends to buy TITAN semi trailers.

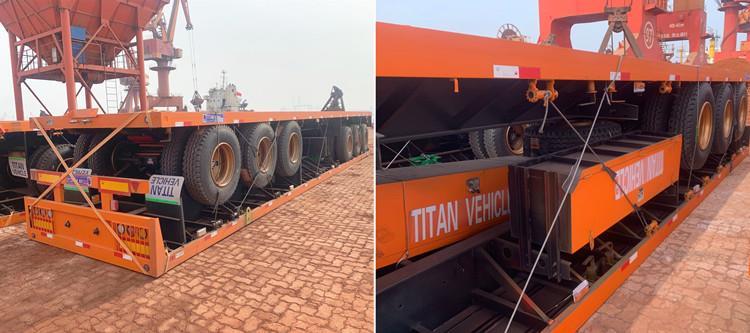

TITAN Tri Axle Flat Deck Trailers Ready to Ship in Port
1. Frame:

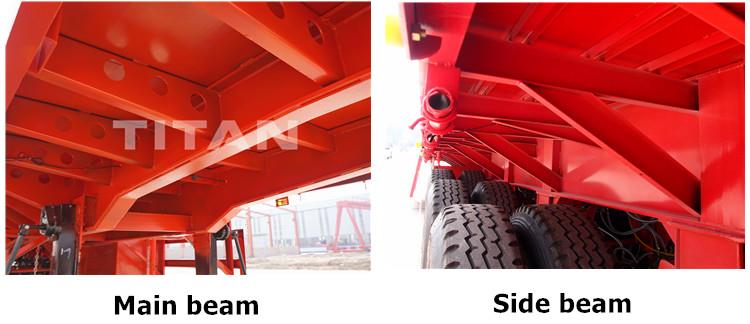

Main beam: We adopts the Low carbon high strength alloy steel T700 to make the main beam , it has a higher carry capacity and service life of more than 10 years.
Bottom plate: The floor plate is the 3 mm and it’s diamond plate, It is thicker than the 2.5mm or 2mm floor plate of other factories. The floor plate is strong and durable, and is not easy to deform.
Side beam: The thickness of the side beam we made is 160mm, 100mm channel for through beam, and all of the through beam are supported by the Inclined support frame, and the distance of these frame no more than 500mm, which can ensure the tri axle flat deck trailer not easy to deform.
Under beam: We have 6 beams under the floor plate, effectively ensure the flatness of the floor plate.
2. Welding process:
We use automatic submerged arc welding process to weld the main beam. There is no interface between the upper, middle and lower plates of the beam, so it can ensure the integrity of the main beam and make the beam more solid and durable.
3. Parts:
We adopts the best parts for our trailer, such as the axle with 16 tons brake system, 3mm base plate, etc. with longer service life.
Landing gear: TITAN optional Jost landing gear which is a world recognized famous brand accessory with a better bearing capacity and long service life

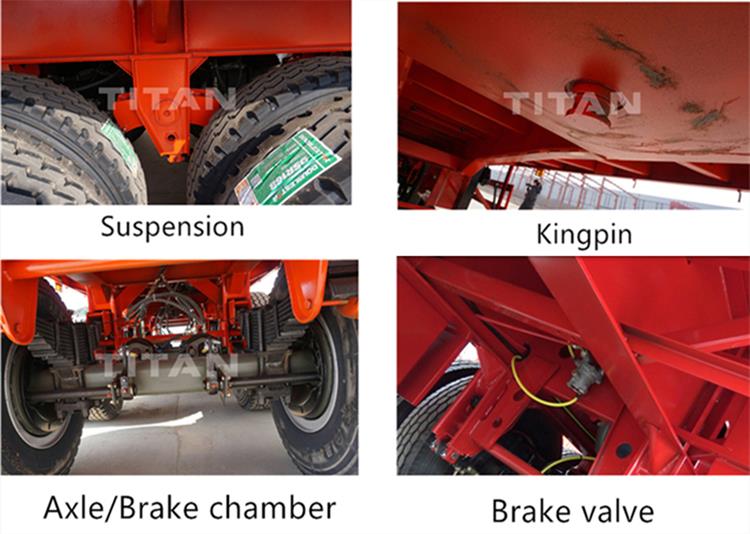

Suspension: We use the reinforced suspension on our tri axle flat deck trailer, 70mm center balance pin. In the front and rear of the suspension, left and right are reinforced. A separate focus on road conditions in Africa, addressing dirt and poor road conditions
For some other factories, they use the light type suspension, the center pin is 45mm only, will make a short service life and lead to serious tire wear.
Axles: We used a 16 ton brake axle ;TITAN's vehicle axle has 9 years of experience in production quality, better bearing capacity and good braking effect. Other factories use 13 ton brake system axle.
Tires: We has been using tires with the company for more than 12 years. The quality is very stable. In China, it can use 200,000 kilometers for two years without any problem
Braking system: Effective braking, fast braking response, braking distance reduction of more than 5 meters. Also available is the WABCO braking system
Brake pipe: TITAN tri axle flat deck trailers brake pipe is a high-pressure rubber pipe, the service life of more than 10 years. Wires are made of cables. Service life over 5 years. Other home is used on the ordinary pair of windpipes and wires, service life of about 1 year.
4. Paint:
We adopts the Polyurethane paint for all of our tri axle flat deck trailers which has high adhesion, more beautiful color, and the cost is twice of ordinary paint. But the paint will not fall off after more than five years of use
You can download video, you can learn about different types of flatbed semi trailer, such as 2 axle flatbed semi trailer,3 axle container semi trailer,4 axle 40ft flatbed semi trailer, etc. As well as the process, testing, packaging and customer feedback, etc.
Flatbed Semi Trailers Video
This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
