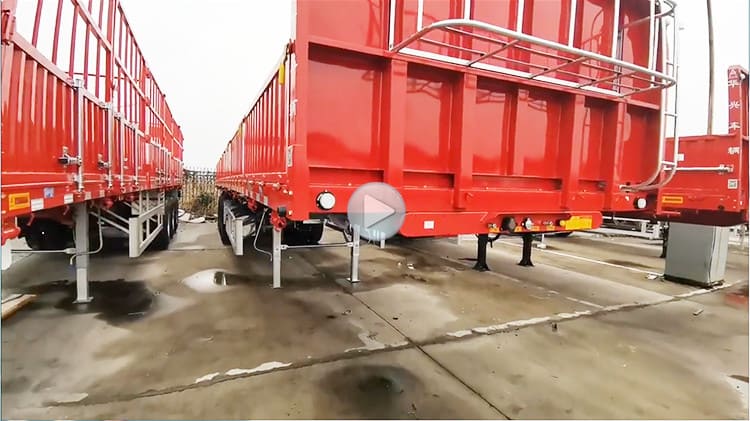

Drop Side trailer is another type of dump truck, and it allows goods to be unloaded from the side. The main types of cargo transported by this semi-trailer are building materials, such as stone, sand, etc.

Advantage of 3 axles drop side trailer

1.Frame body Q345B high strength structure steel, automatic submerged arc welding throughout beams, and other cross-section main stringers structure for optimum carrying effect.

2.Well-known brand axles, suspension systems, high performance, and reliability to use, to ensure the good performance of the vehicle.

3.TITAN 3 axles drop side trailer is equipped with HYVA cylinder, which is more reliable and safer. We supply 34 ton side tipper trailer with multiple customization options.

Drop Side Trailer Purchase Points

1. The most important thing about the side tipper trailer is the hydraulic system and the diagonal brace.

The user must pay attention to the side tipper trailer when purchasing the side tipper trailer. Try to choose a famous brand for the hydraulic top, and the diagonal brace should pay attention to the manufacturer's welder and reinforcement.

2. The number of hydraulic jacks depends on the tonnage. The support must be firm

The hydraulic roof is an important part of rollover. According to the different deadweight tonnage, there are generally several diameters such as 110, 125, 130, 150, etc. Generally, the standard load does not exceed 60 tons with 110 5+1 (5 lifting cylinders, one Shift cylinder) or 130 4+1; heavy load 80 tons-120 tons generally use 6+1 or 7+1 150 cylinders. The displacement top generally uses 160 or 180 cylinders.
