Empty Handler Container Reach Stacker

Empty Handler Machine Price: 300000 USD

Empty reach stackers are equipped with intelligent anti-tipping systems, load monitoring systems, automatic alarms, and other safety devices. Empty handler machines offer a wide field of vision and a simple operating interface, enhancing operational safety.

Empty container stacker cabs are height-adjustable and tiltable, facilitating better observation of stack height and cargo.

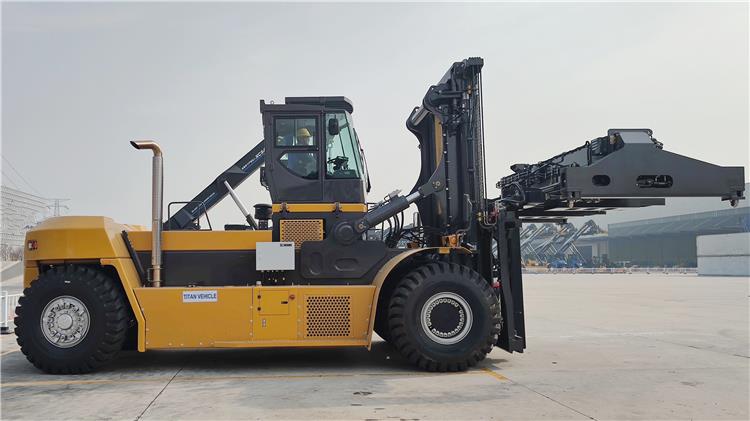

Empty Handler Container Reach Stacker | Heavy Duty Reachstacker

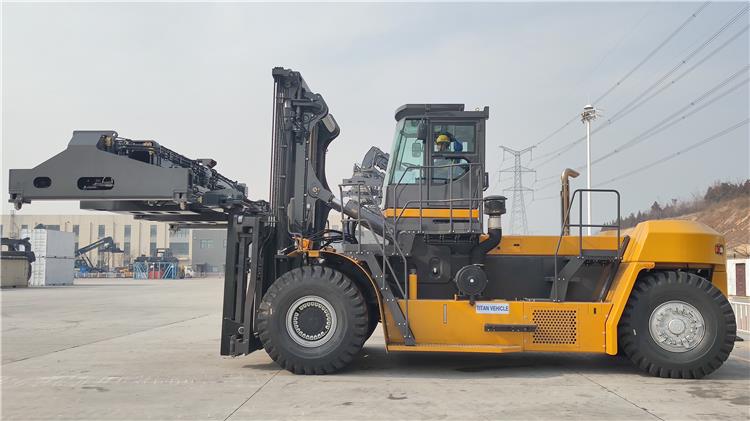

Empty Handler Container Reach Stacker | Heavy Duty Reachstacker

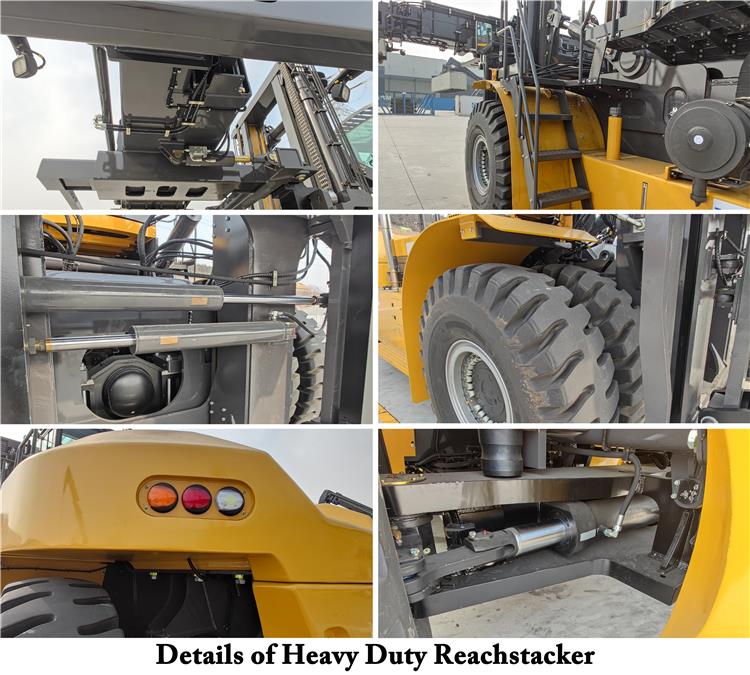

Empty Handler Container Reach Stacker | Heavy Duty Reachstacker

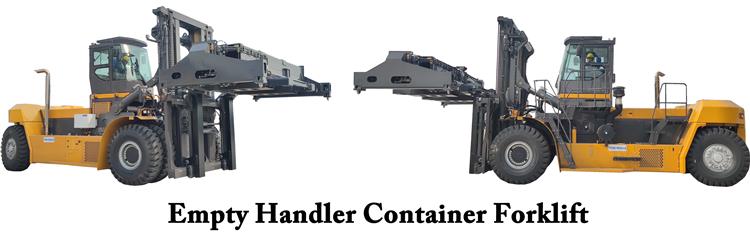

Empty Handler Container Reach Stacker | Heavy Duty Reachstacker

Specification of Empty Reach Stacker

Rated lifting capacity: 46000kg

Load center distance: 1200mm

Standard lifting height: 4000mm

Wheelbase: 5500mm

Model: Imported engine

Rated power: 265/2100kw/rpm, 250/2100kw/rpm, 265/2100kw/rpm

Maximum torque: 1785/1260Nm/rpm, 1674/1400Nm/rpm, 1785/1260Nm/rpm

Emission standard: National III/Euro III/US III

Gearbox: Imported (manual and automatic front 5/rear 3)

Drive axle: Imported (wet heavy load)

Tire: 18.00-25-40PR

Main pump: variable piston pump

Main valve: proportional valve

Advantage of Heavy Duty Reachstacker

Heavy-duty reach stackers enable high-level stacking (typically 5-8 layers), significantly improving site utilization. Empty stackers offer far higher operational efficiency than ordinary forklifts and gantry cranes, meeting high-turnover demands.

Empty reach stackers have a small turning radius, making them suitable for narrow roads in ports, yards, and factories. Empty handler machines feature precise operating systems, allowing for flexible container handling in confined spaces.

Empty container stackers can handle 20ft, 40ft, and 45ft containers. They can handle empty containers and can also be equipped with grippers for loaded container operations.

Heavy-duty reach stackers are typically equipped with engines from internationally renowned brands (such as Cummins and Volvo), offering high torque and low fuel consumption.

Empty stackers feature heavy-duty reinforced chassis and high-strength boom designs, adapting to continuous, long-duration, high-load operations.
