CN Hammar 40ft Side Loader Trailer

CN Hammar 40ft Side Loader Trailer Price: 43500 USD

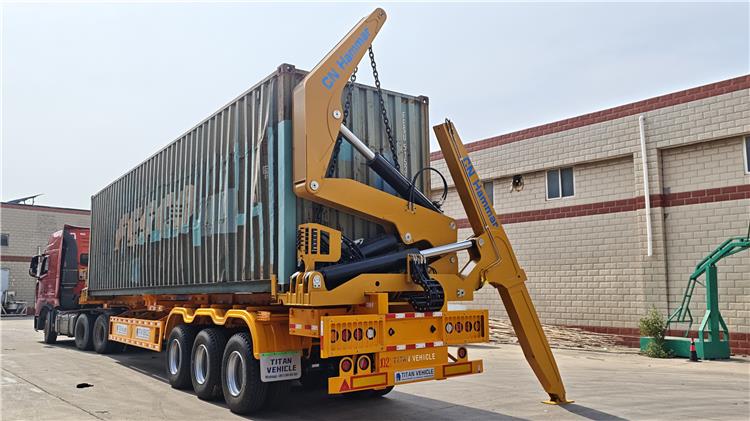

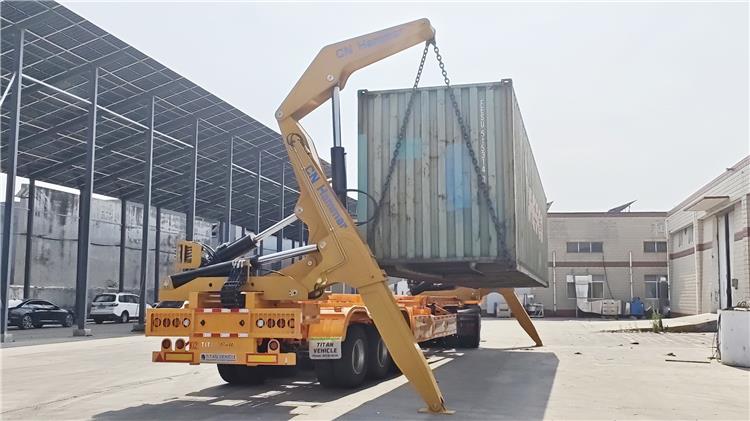

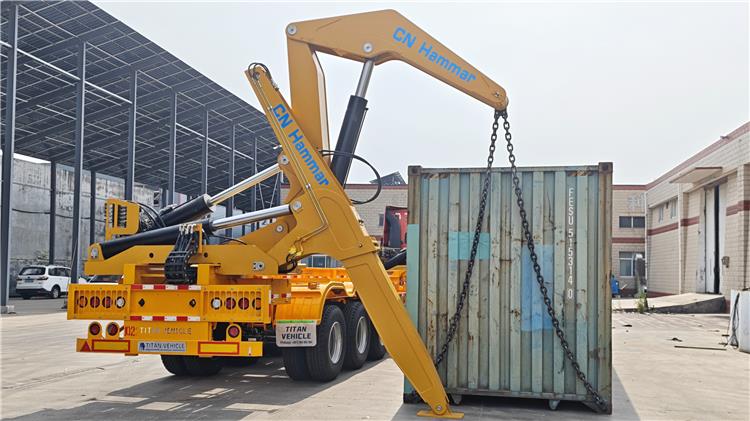

CN hammar side loader trailer for sale integrates transportation and self-loading/unloading functions, making it an efficient solution for modern logistics and multimodal transport. In small ports, freight stations, or private warehouses where large reach stackers or gantry cranes are unavailable, CN hammar side loader trailer for sale can independently complete container lowering, lifting, and transfer operations.

CN hammar side loader trailer for sale can directly drive to the customer’s factory or warehouse entrance and safely place containers on the ground for loading and unloading, eliminating the need for trucks to wait on site for long periods.

CN hammar side loader trailer for sale also supports seamless transfer of containers between itself and other trailers or rail flatbed wagons, significantly improving terminal and yard handling efficiency.

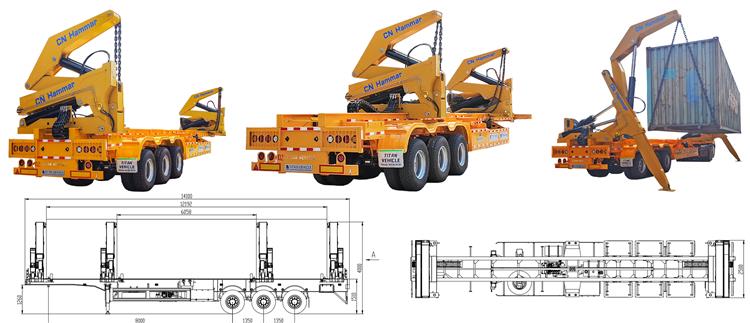

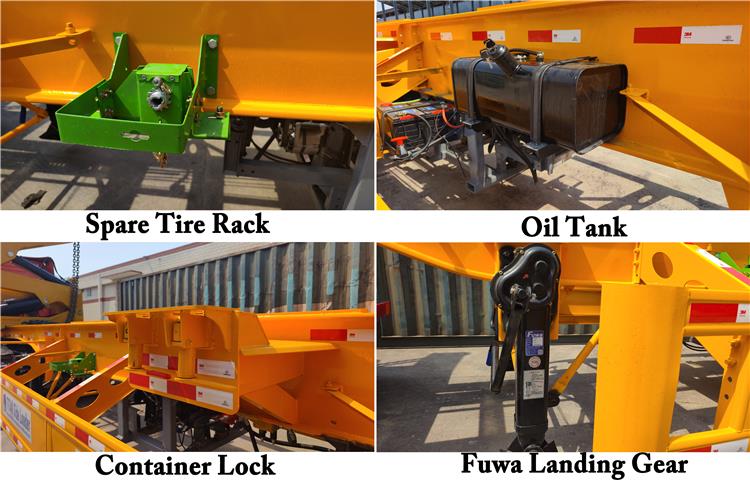

Details of CN Hammar Side Loader

Specifications of 40ft Hammar Side Loader

Crane: CN Hammar Brand

Loading capacity: 37 Ton

Load: 20 ft and 40 ft container

Power source: Diesel engine

Remote control: 1 unit

Chains: 2 chains+4 hooks

Dimension: 14100*2500*4200mm

Axles: 3 axle*13 ton;16 tons brake lining

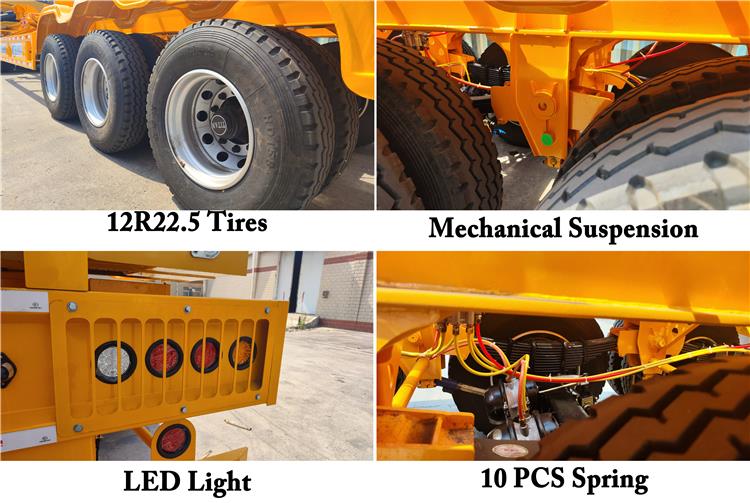

Tires: 12 pcs,12R22.5

Landing gear: FUWA

Braking system: WABCO Emergency valve

Suspension: Mechanical Suspension

Kingpin: 2 inch and 3.5 inch

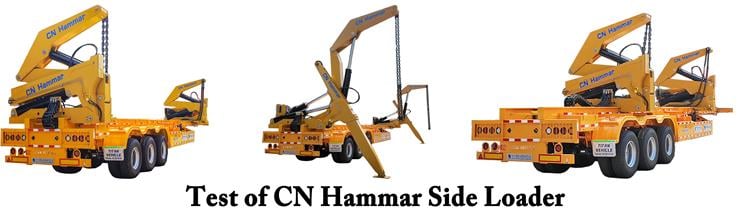

Test of CN Hammar Side Loader

CN hammar side loader trailer for sale undergoes strict factory testing before delivery. The process includes both no-load testing and crane boom extension and retraction calibration (Testing & Calibration). Each CN hammar side loader trailer for sale must pass a series of rigorous static and operational debugging steps before leaving the factory. The no-load test is a key procedure to ensure perfect coordination between the mechanical and hydraulic systems.

Hydraulic system bleeding and preheating: Start the diesel engine and allow the hydraulic oil to circulate throughout the system, checking whether the oil pressure gauge remains stable.

Outrigger leveling test: First test the extension and tilt movements of the hydraulic supporting legs on both sides to ensure they can firmly and smoothly anchor to the ground.

CN hammar side loader trailer for sale full-stroke crane boom test: Operate the remote controller to perform a full cycle of “folding–unfolding–full extension–retraction” for both front and rear lifting booms in synchronization.

Observe the smoothness of the large-bore hydraulic cylinder movement, ensuring that both lifting arms operate in perfect synchronization, with no abnormal noise and no sticking or jamming.

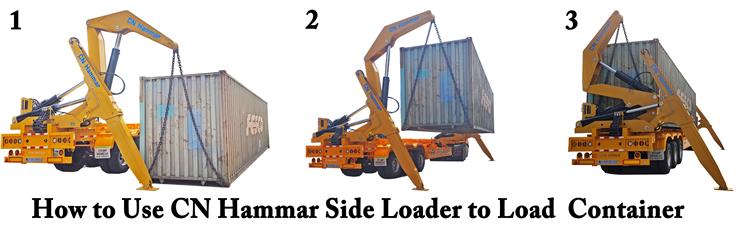

How to Operate the CN Hammar Side Loader to 40ft Container

Advantage of CN Hammar Side Loader

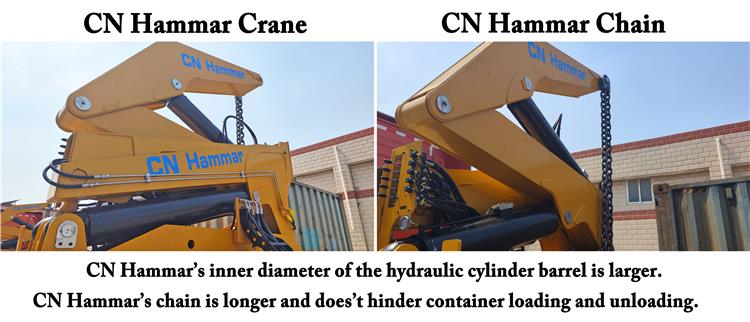

CN hammar side loader trailer for sale is optimized in its core hydraulic and structural design to deliver extremely high stability and safety. With large-bore hydraulic cylinders, CN hammar side loader trailer for sale increases the inner diameter of the hydraulic cylinders. A larger bore means stronger lifting force and smoother pressure control under the same system pressure, ensuring the crane boom remains stable without shaking during operation, making 37-ton full-load lifting easy and effortless.

CN hammar side loader trailer for sale adopts an extended safety lifting chain design. The specially lengthened dual-chain + 4-hook system ensures an optimal slinging angle when handling 20ft or 40ft containers. This design prevents chain jamming and avoids scratching the container edges, making hooking and unhooking operations smooth and efficient.

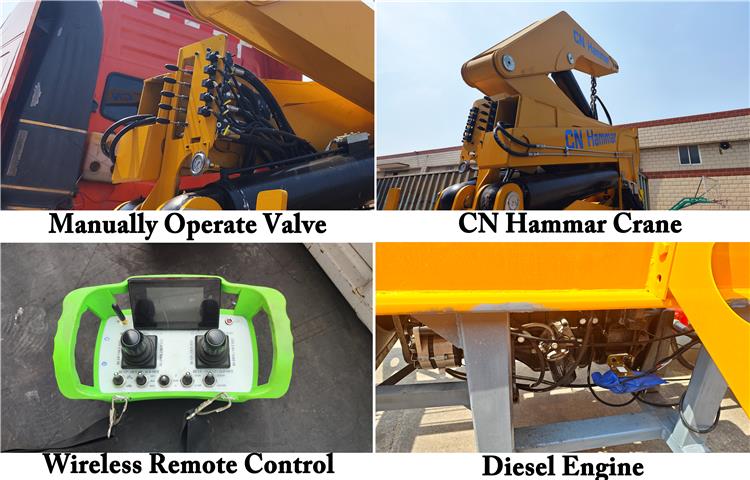

CN hammar side loader trailer for sale is equipped with an independent diesel engine that provides powerful and reliable energy output, and it also comes with a wireless remote control system, allowing the operator to perform precise adjustments within a 360-degree safe, blind-spot-free operating range.

The chassis of CN hammar side loader trailer for sale uses FUWA heavy-duty mechanical suspension with 13-ton axles, combined with FUWA high-strength landing legs. The braking system adopts a German WABCO emergency brake valve, ensuring comprehensive safety during both driving and parking operations.

Package of CN Hammar Side Loader Trailer

The CN Hammar Side Loader Trailer for Sale undergoes comprehensive industrial-grade protective packaging before departure. The entire chassis and structural components are coated with a thick layer of anti-sea fog wax. The core components, including the crane boom, hydraulic cylinders, diesel engine, and electronic control system, are tightly wrapped and sealed with high-strength waterproof and rainproof tarpaulin to fundamentally isolate them from the highly corrosive salt spray at sea, protecting the hydraulic system and precision components from oxidation and rust.

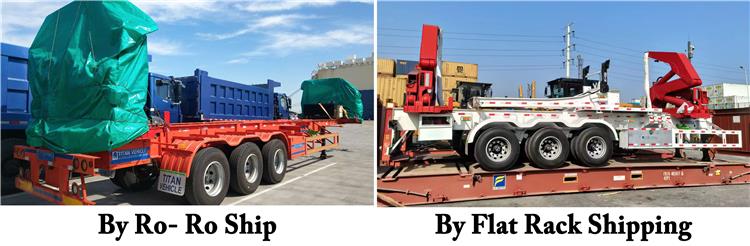

For logistics and transportation, this vehicle primarily utilizes two professional sea freight solutions: Ro-Ro shipping or flat rack shipping. After the CN hammar side loader trailer is loaded onto the ship or secured to the frame pedestal, the port loading and unloading team will use high-strength steel wire ropes, anti-slip mats, and professional rope tensioners to tightly bind and secure the wheels and chassis, ensuring that the vehicle remains as stable as a rock during the turbulent sea voyage and is finally delivered to the customer safely in perfect "new condition".
