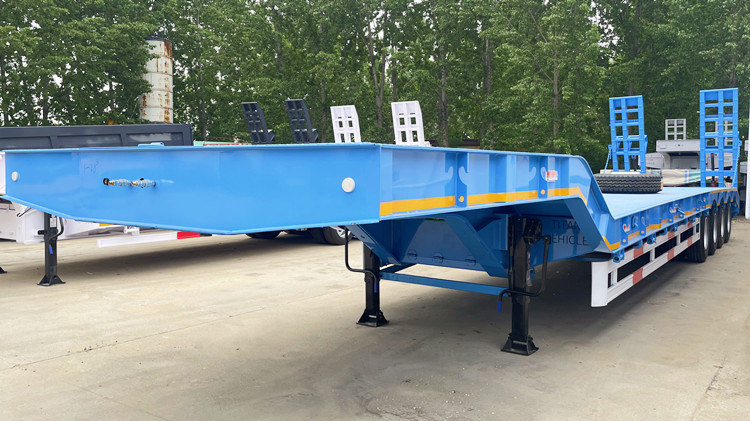

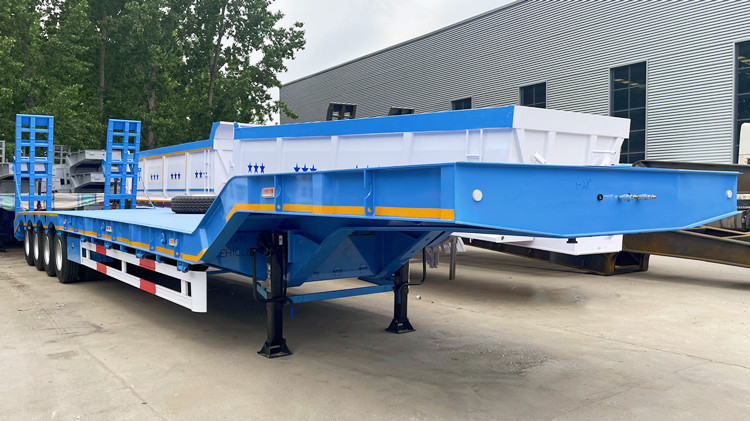

4 Axle Full-Width Gooseneck Low Bed Trailer

Full-Width Gooseneck Low Bed Trailer:

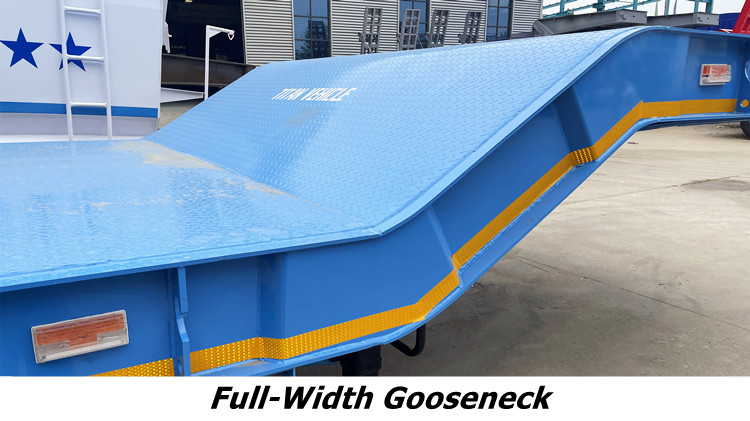

The full-width gooseneck design of 4 axle low bed trailer keeps the same width from the gooseneck to the main loading deck, creating a continuous and wider loading platform. This design makes it much easier to load wide equipment, reduces the risk of tire or track overhang, and improves loading efficiency for excavators, bulldozers, cranes, and other heavy vehicles.

Contact us now for quote and details

Contact us now for quote and details

Specification of 4 Axle Low Bed Trailer:

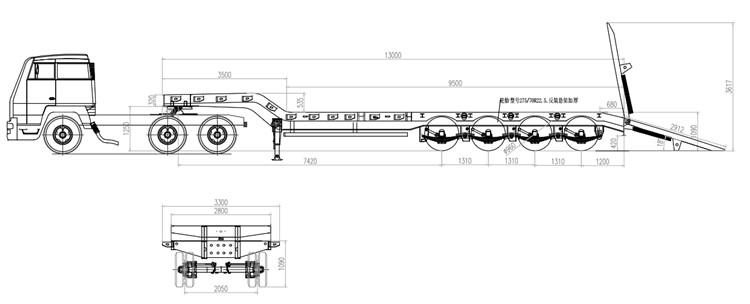

Overall dimension: 13000mm*3000mm*1750mm

Loading capacity: 80-100 ton

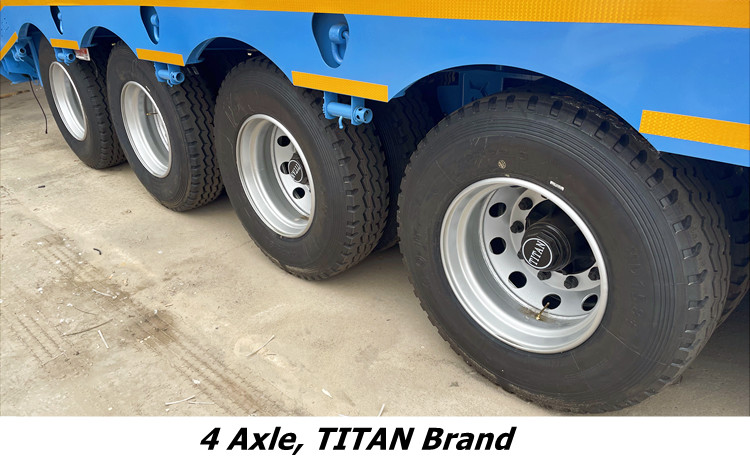

Axles: 4 axles, TITAN Brand

Tire: 16 units, 12R22.5

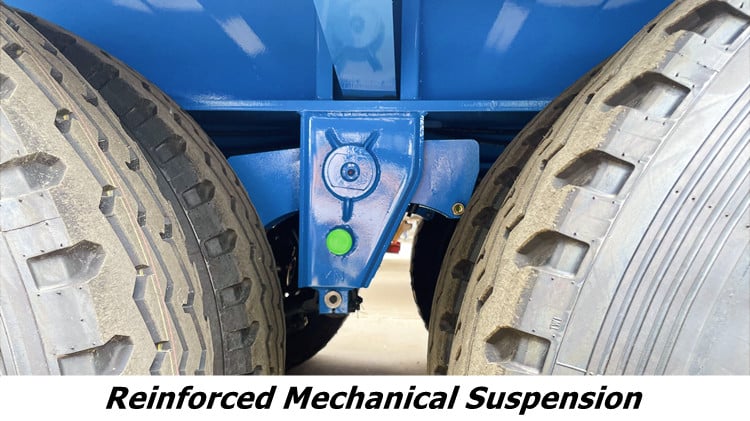

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

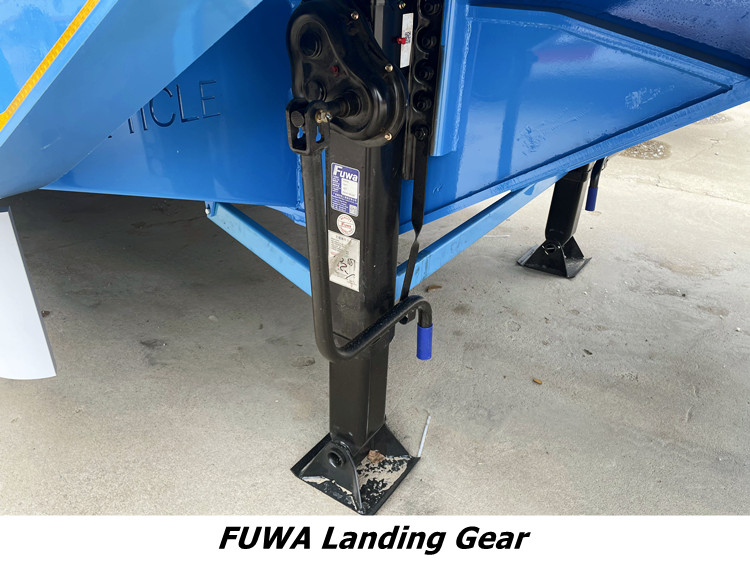

Landing gear: Fuwa brand

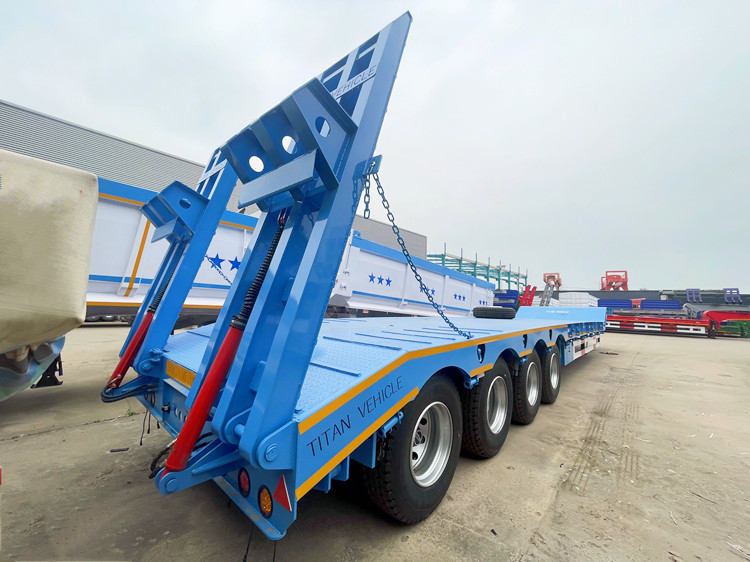

Ramp: Spring Ramp

Kingpin: JOST brand 2.0 or 3.5 inch

Valve: WABCO valve

Light: LED light

Contact us now for quote and details

Advantages of Low Bed Semi Trailer:

The major advantage of the full-width gooseneck design is the increased versatility of the loading platform. Since the gooseneck of low bed semi trailer does not narrow toward the front, operators have more usable deck space for oversized cargo, making it suitable for transporting equipment with wide tracks or large dimensions. The continuous-width platform also simplifies loading and unloading operations, helping reduce loading time and improving overall transport efficiency. This design of 4 axle low bed trailer is especially valuable for customers working in mining, infrastructure development, road construction, and heavy equipment rental industries.

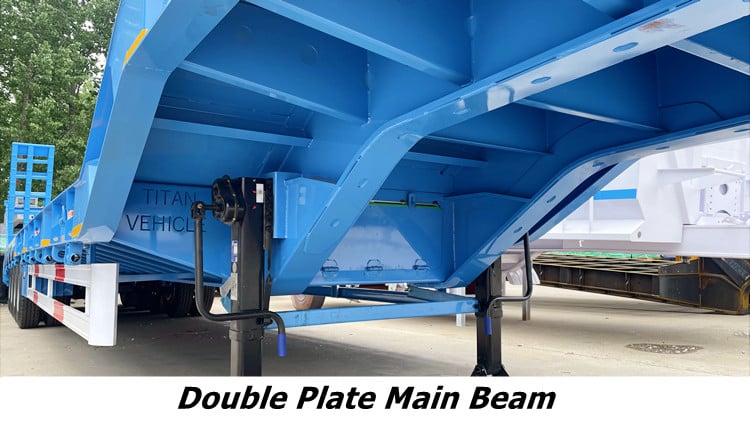

The four axle configuration provides a higher payload capacity and more even weight distribution, allowing the full-width gooseneck low bed trailer to transport extremely heavy loads while reducing stress on individual axles and tires. The reinforced chassis is manufactured from high strength steel with advanced welding technology, ensuring exceptional structural strength and resistance to bending and twisting under demanding operating conditions. Combined with a low center of gravity, the low bed semi trailer offers excellent driving stability and enhanced safety during long-distance transportation, even on uneven roads or construction sites.

The 4 axle full-width gooseneck low bed trailer can also be customized to meet different transportation requirements. Customers can choose the deck length and width, payload capacity, mechanical or air suspension, hydraulic or spring ramps, axle brands such as FUWA or BPW, tire specifications, and other optional features. Built for durability, reliability, and long service life, the 4 axle low bed trailer delivers excellent performance in harsh working environments while minimizing maintenance costs, making it an ideal solution for heavy-haul transportation companies worldwide.
