The TITAN wind turbine transport trailer is mainly designed for transport of wind turbine blades or other heavy loads. When transporting, adjust the wind turbine transport trailer body to maintain the stability of the transported cargo and keep it level when driving uphill, downhill, or incline.
The TITAN wind turbine blade transport trailer adopts three-point support hydraulic suspension, hydraulic all-wheel traction/manual steering, dual-line all-wheel braking, adjustable plate height, uniform axle load, and the wind turbine blade transport trailer can safe and reliable turning
TITAN wind turbine blade transport trailer includes modules such as hydraulic power gooseneck, hydraulic unit (two-axle, three-axle, four-axle, five-axle or six-axle...), loading platform and steering end beam. These modules can be used in combination or independently.

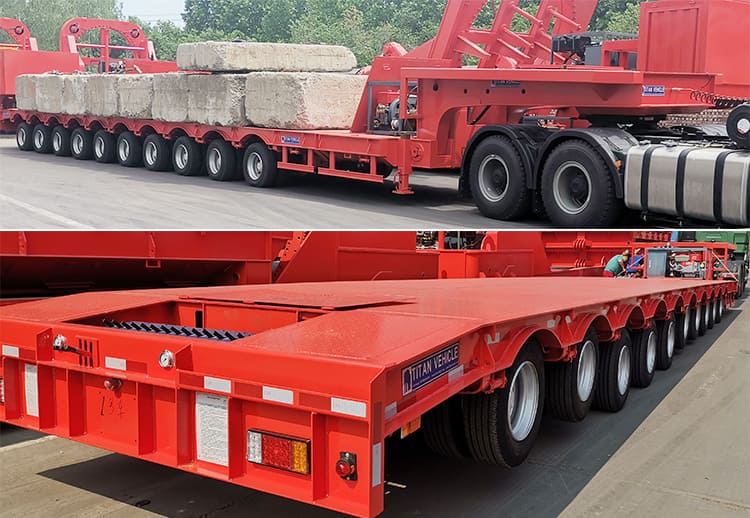

Wind Turbine Blade Transport Trailer for Transport of Wind Turbine Blades

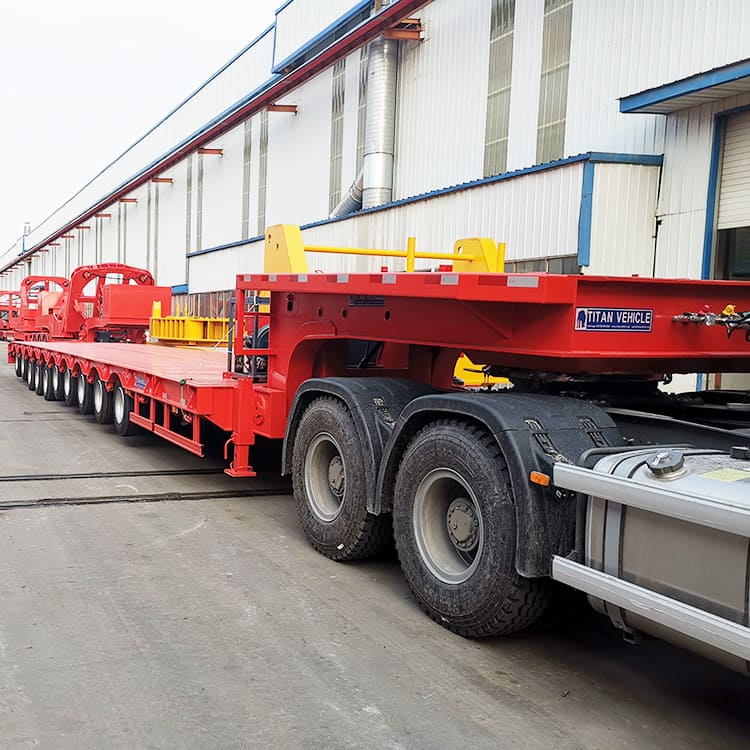

Wind Turbine Blade Transport Trailer for Transport of Wind Turbine Blades

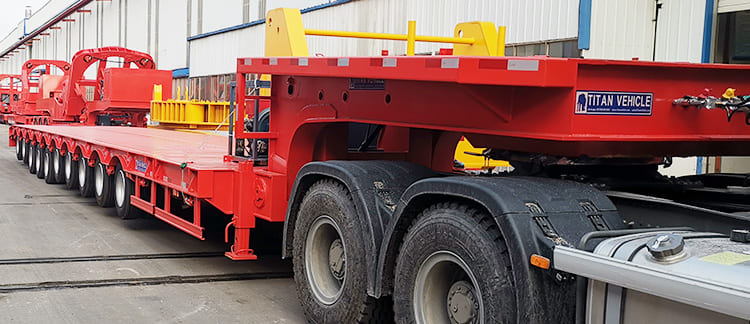

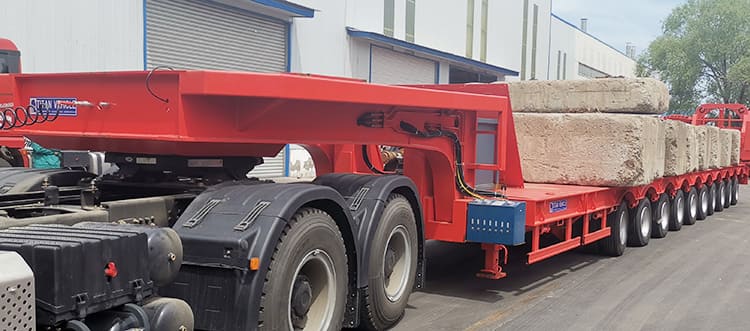

Wind Turbine Blade Transport Trailer for Transport of Wind Turbine Blades

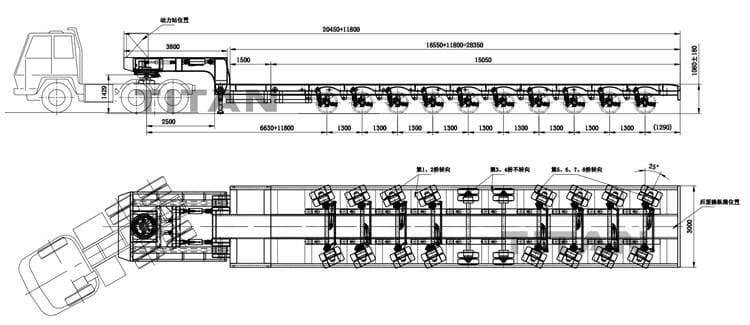

Drawing of the Wind Turbine Blade Transport Trailer
Dimension(L*W*H): 18,500mm X 2,990mm X 950mm ( closed state)
33,500mm X 2,990mm X 950mm ( extension state)
Deadweight without ramps: 28.5 Ton
Deadweight with ramps: 29.5 Ton
Frame: HG60 high strength steel frame
Loading capacity: 90 Ton
Length: 18,500mm at closed state; 33,500mm after total extended
Width: 2,990mm + 2 X 250mm side swing bracket
Height: 200mm+/-90mm
Axle: 10 Axles
Maximum steering angle: +/-25°
Tyre: 40 units, 215/75R17.5
Gooseneck: Hydraulic gooseneck
Suspension: Hydraulic lifting suspension (only for adjusting the platform levelling needed)
Hydraulic power station: 1 set,12Kw diesel engine
Loading Ramps: 1 set, detachable ramps
Landing gear: JOST C200

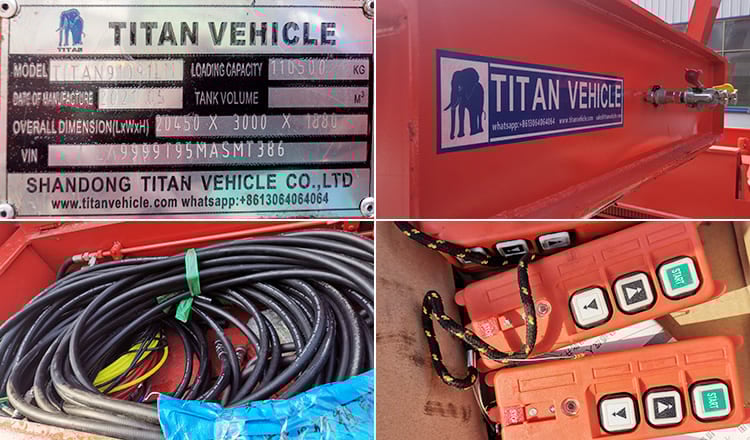

Operation 2 wireless remote control: + 1 control valve panel
