A tri axle side wall trailer is a trailer pulled by a truck tractor and used to haul bulk commodity products, such as grain.
Tri axle side wall trailer is a trailer pulled by a truck tractor and used to haul bulk commodity products, such as grain. These trailers are used extensively throughout the Africa to transport agricultural products as well as any other commodity that can be hauled in bulk and loaded and unloaded through the trailer.
The small door of the side wall semi trailer facilitates the loading and unloading of grain.

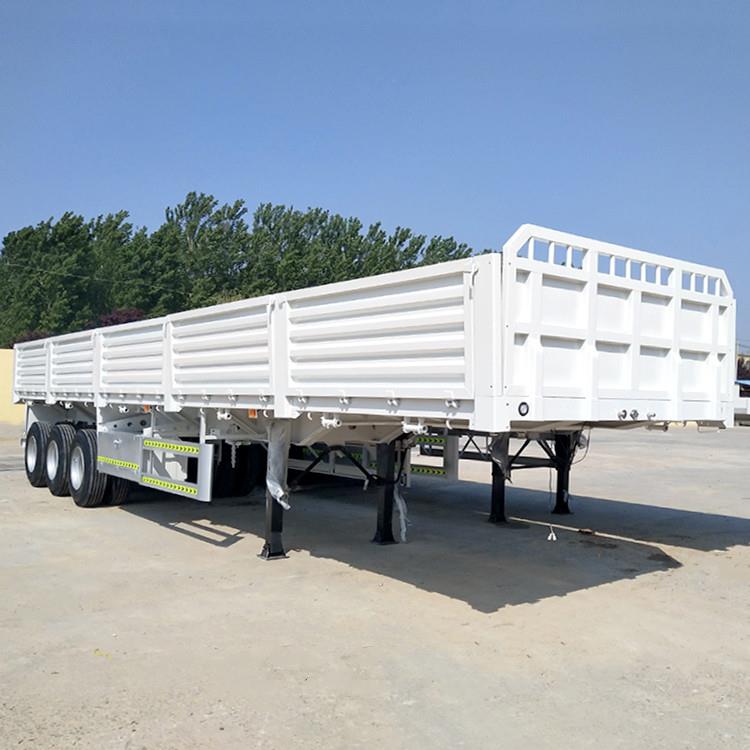

Tri Axle Side Wall Trailer for Grain Transport in Zambia
Tri Axle Side Wall Trailer for Grain Transport in Zambia
Tare Weight: About 7.6T
Dimension(mm): 13000x2500x3050mm
Trailer Sides: 1500mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Bottom Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
1. TITAN Vehicle adopts high strength steel material to manufacture the side wall semi trailer, it can make the sidewall trailer have a higher loading capacity and a longer service life.
2. TITAN Vehicle uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.
3. Hight quality side wall, make sure the stable and safety of the loads.
4. Also the trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.
5. To make sure the service life of the side wall semi trailers, all the spare parts we adopt are world famous brand.
Through this video, you can learn about different types of sidewall semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
