Tri Axle Flatbed for Sale
Tri Axle Flatbed for Sale

Tri Axle Flatbed for Sale

9800 USD

Different Parameters, Different Price. Price Reference Only.



TITAN flatbed for sale is very popular in the African market. Tri axle flatbed trailer is the most popular model.

SKU: Tri Axle Flatbed for Sale
MPN: TITAN9403039
Brand: TITAN

Product Description:

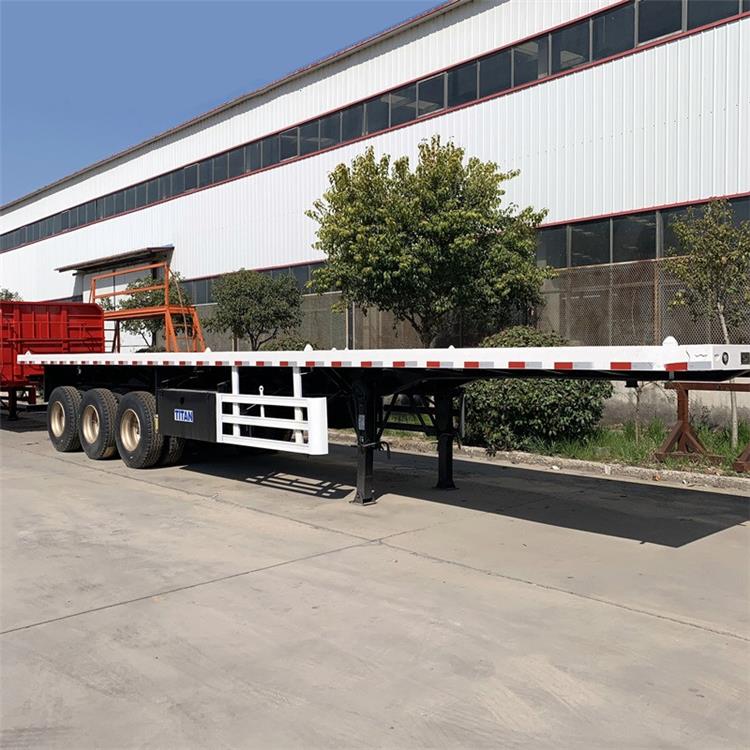

TITAN flatbed for sale is very popular in the African market. Tri axle flatbed for sale is the most popular model. It is usually used to transport 20ft or 40ft containers.

40 Foot Flatbed Container Trailer for Sale - TITAN Vehicle

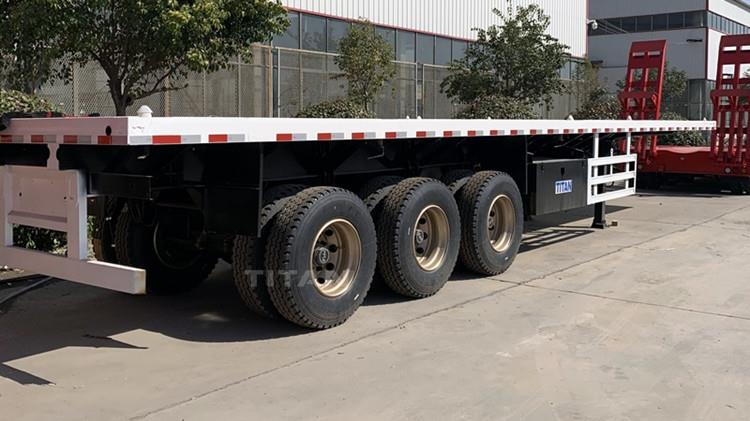

Tri Axle Flatbed for Sale in Zimbabwe Harare - TITAN Vehicle

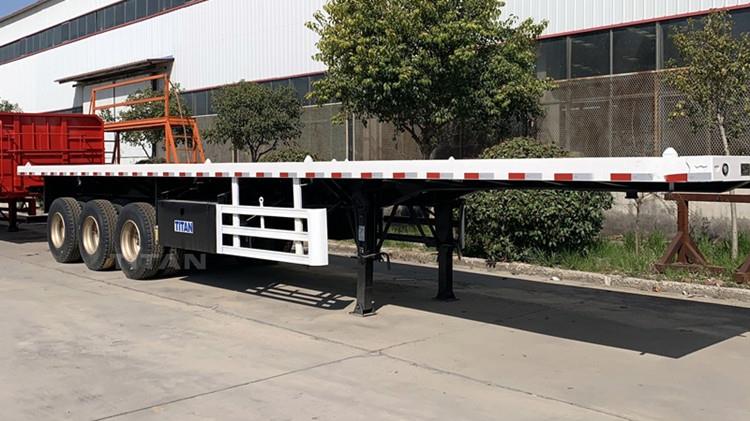

40 Foot Flatbed Container Trailer for Sale - TITAN Vehicle



Specifications:

Tare Weight: About 7.1T

Dimension(mm): 12500x2500x1550mm

Loading capacity(ton): ≤45T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats





Advantages:

1. TITAN Vehicle adopts high strength steel material to manufacture the flatbed for sale, it can make the tri axle flatbed trailer have a higher loading capacity and a longer service life.

2. TITAN Vehicle uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.

3. To make sure the service life of the flatbed for sale, all the spare parts we adopt are world famous brand.

4. We use famous German WABCO braking valve will definitely shorten the Braking Distance, to make the safety of the trailers and the drivers.

5. Durable mechanical widened spring suspension, make sure the stable and safety. Also we can offer you the air bag suspensions, The airbag suspension can provide a good shock absorption effect for the vehicle and more fuel-efficient.



You can download video, you can learn about different types of flatbed semi trailer, such as 2 axle flatbed semi trailer,3 axle container semi trailer,4 axle 40ft flatbed semi trailer, etc. As well as the process, testing, packaging and customer feedback, etc.

tri axle trailer for sale



Review

MOLLEL from Tanzania - 2022-01-05T11:01:16+0800
For me, the TITAN tri axle flatbed trailer is good and cheap. If you are still hesitating which flatbed trailer to buy, I recommend buying a TITAN tri axle flatbed for sale.
Howard Chinoda - 2021-06-19T09:06:00+0800
TITAN tri axle flatbed has never made us disappointed thus far, when we finish the first transport business, we will come here to update. I was very impressed with this flatbed trailer.
