TITAN manufactures high-quality 40000 L asphalt tanker trailer is used to transport liquid asphalt from the oil refinery and wharf to the asphalt storge depot, also transports asphalt from the asphalt storage depot to the asphalt plant.
The 40000 L Asphalt tanker trailer is composed of an asphalt tank, a semi-trailer frame, heating pipes, heating systems, insulation systems, pipe tennis valves, etc. It is wrapped with cold-rolled iron sheets or stainless steel sheets, and is lined with high-tech insulation materials (polyurethane Foam, rock wool, glass fiber, etc.), equipped with an automatic ignition diesel burner for heating and insulation.
40000 L Asphalt tanker trailer Effective tank volume: 40 cubic meters. It has the functions of self-flow unloading, pump pressure unloading, pump suction canning, and in-situ transportation. It has good heating effect, good insulation effect, large carrying capacity, and strong adaptability. It is suitable for long, medium, and short-distance transportation of liquid asphalt.

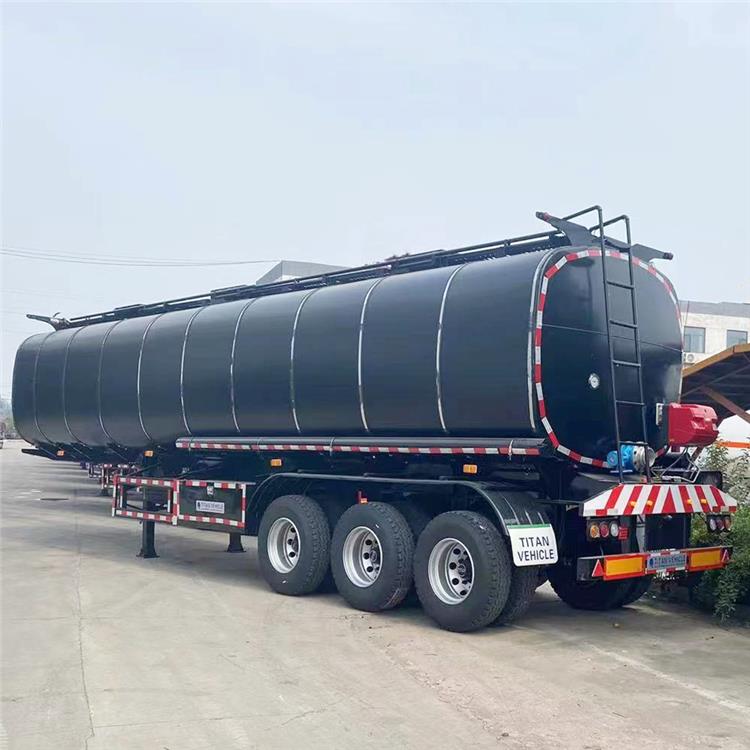

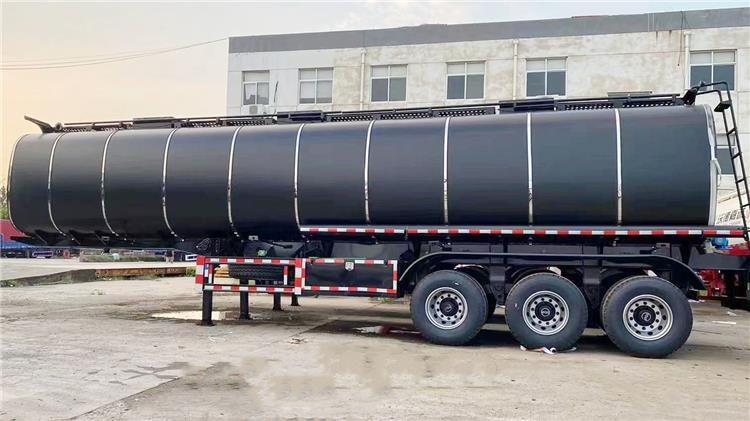

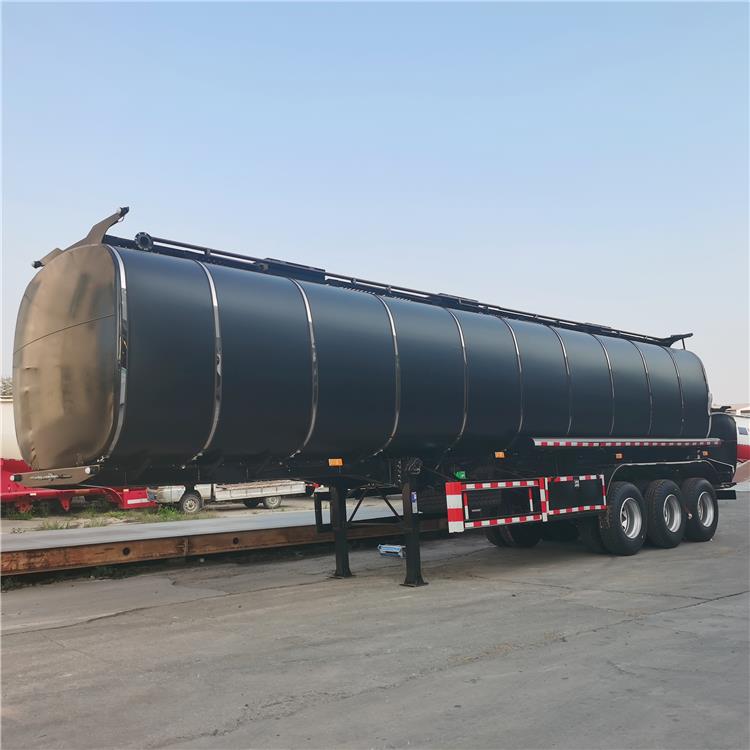

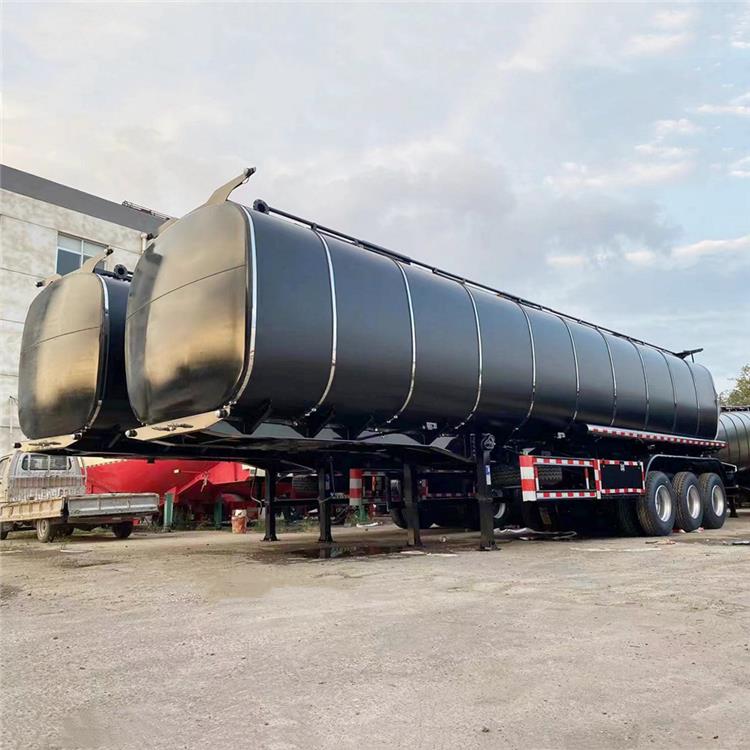

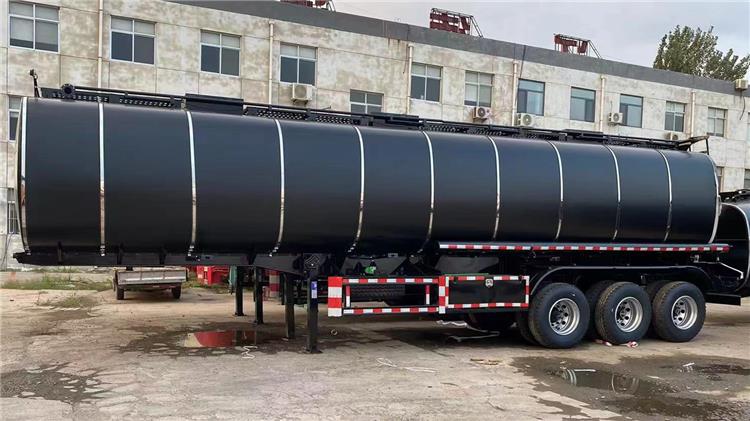

Tri Axle Asphalt Tanker Trailer with 40000 L Capacity for Sale In Guyana
Tri Axle Asphalt Tanker Trailer with 40000 L Capacity for Sale In Guyana
Tri Axle Asphalt Tanker Trailer with 40000 L Capacity for Sale In Guyana
Tri Axle Asphalt Tanker Trailer with 40000 L Capacity for Sale In Guyana
Tri Axle Asphalt Tanker Trailer with 40000 L Capacity for Sale In Guyana
Tri Axle Asphalt Tanker Trailer with 40000 L Capacity for Sale In Guyana
Tri Axle Asphalt Tanker Trailer with 40000 L Capacity for Sale In Guyana
Tri Axle Asphalt Tanker Trailer with 40000 L Capacity for Sale In Guyana
Dimensions: 12500 mm x 2500 mm x 4000mm
Tank Capacity: 40,000 liters
Tank Material: Q235B carbon steel
Compartments: 1 to 7 compartments, based on customer needs
Discharge: 3” or 4” ball valves
Discharge Pipes: 4” rubber hose, 2 units, 6 meter/each

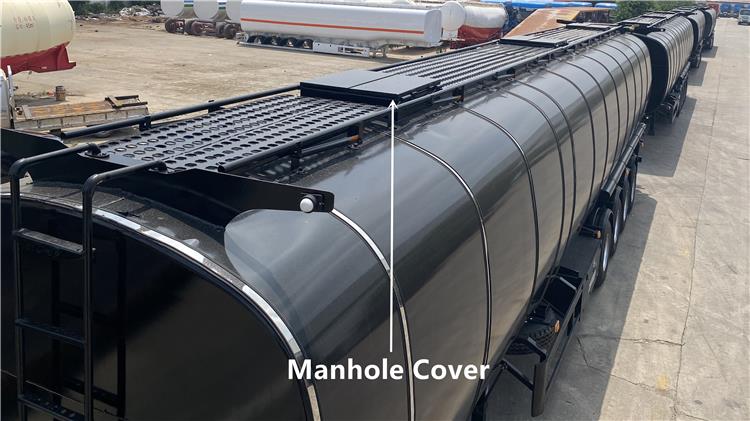

Ladder: The tank is equipped with a front or rear ladder to facilitate the arrival to manholes.
Main Beams: Q345B steel fabricated I beams
Landing Gears: Jost two-speed landing gear, driver-side crank

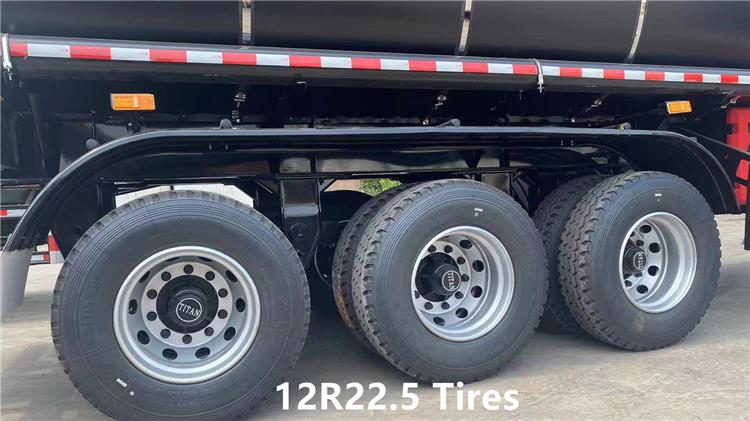

Axles: 3 axles, 13T/16T
Suspensions: Merchanical suspension
Brake System: WABCO

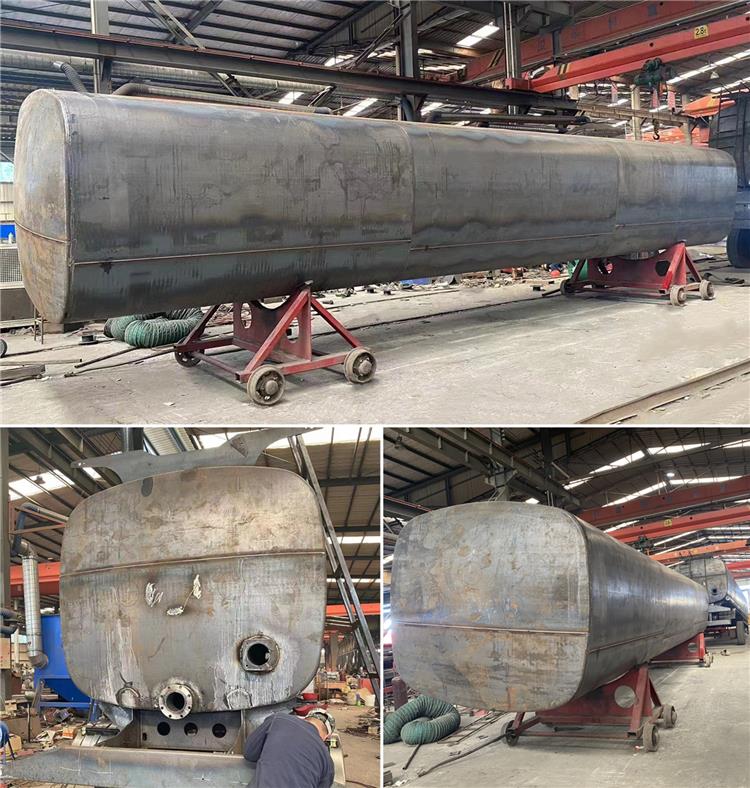

1. The 40000 L Asphalt tanker trailer has a small turning radius, a trapezoidal tank cross-section, large volume, low center of gravity, and compact structure.

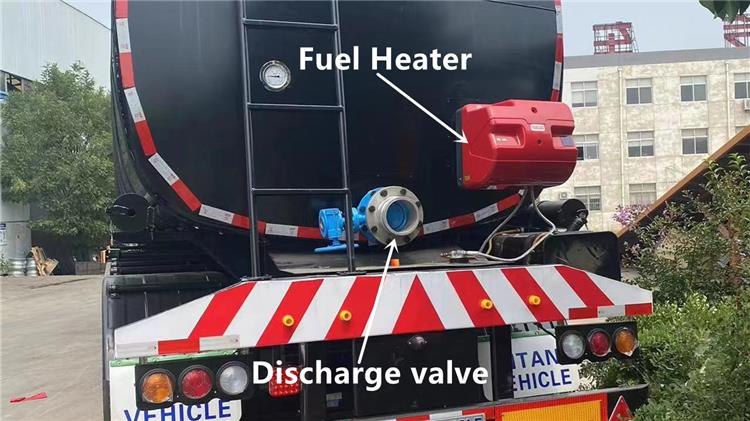

2. The 40000 L Asphalt tanker trailer is equipped with a heating system and an imported diesel burner, which has good combustion quality and no pollution.

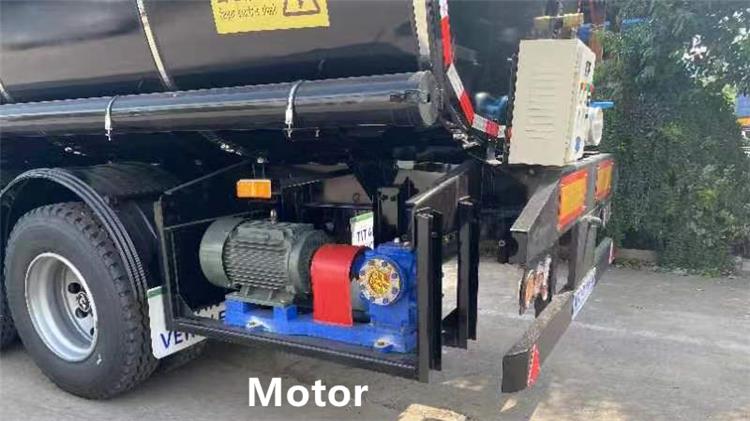

3. The 40000 L Asphalt tanker trailer uses a unique thermal oil system to heat and insulate the asphalt pump and valves; the hydraulic system drives the asphalt pump and thermal oil pump, with reliable rotation and easy operation.

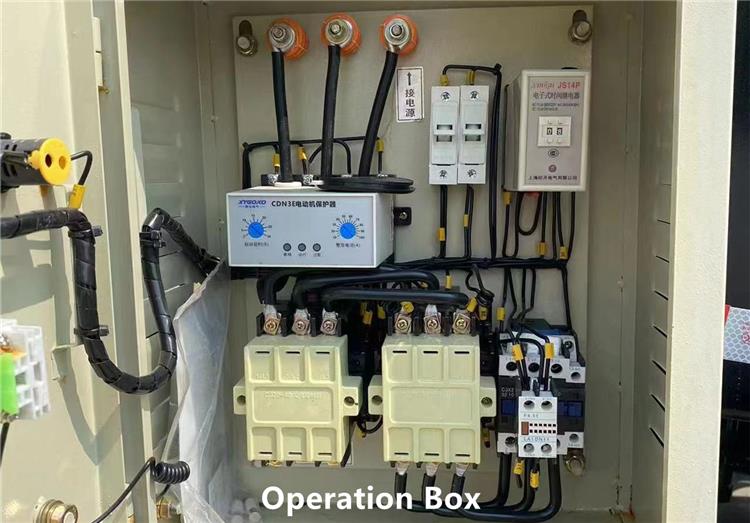

4. The multi-functional pumping system has reliable transmission and easy operation, which can meet various needs in asphalt transportation. It has a full liquid level display and a full-level alarm system to facilitate the control of the asphalt liquid level in the tank.
5. Self-flow discharge: When the oil storage tank is lower than the asphalt transport vehicle, it can be discharged directly by gravity.
6. Pressure discharge: When the oil storage tank is higher than the asphalt transport truck, pressure pumping is used.
7. Self-pump suction: The asphalt in the insulation tank or oil storage pool can be sucked into the vehicle through the oil drain pipe of the 40000 L Asphalt tanker trailer, without the need for an external pump.
8. Internal circulation: During the asphalt heating process, internal circulation can be performed to improve the asphalt heating quality.
9. External pump input: Asphalt can be injected through the tank top inlet.

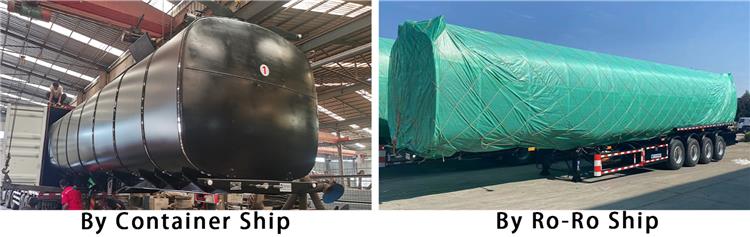

40000 L Asphalt tanker trailer with single compartment can be transported in 40-foot high container containers. When the 40 cubic tank truck has more than 6 compartments or the volume of the tank truck is more than 40 cubic meters, because the tank body becomes larger, a separate cabinet is required to install the axles, leaf springs and other accessories. You can leave your information in the specific situation, and our staff will introduce you more detailed situation and details.
In addition to container transportation, we will also spray a thick layer of wax for bulk transportation of oil tankers and wrap them with rain cloth to reduce the corrosion of seawater to the body during transportation.
