Palm Oil Tanker Trailer
Palm Oil Tanker Trailer

Palm Oil Tanker Trailer

15300 USD

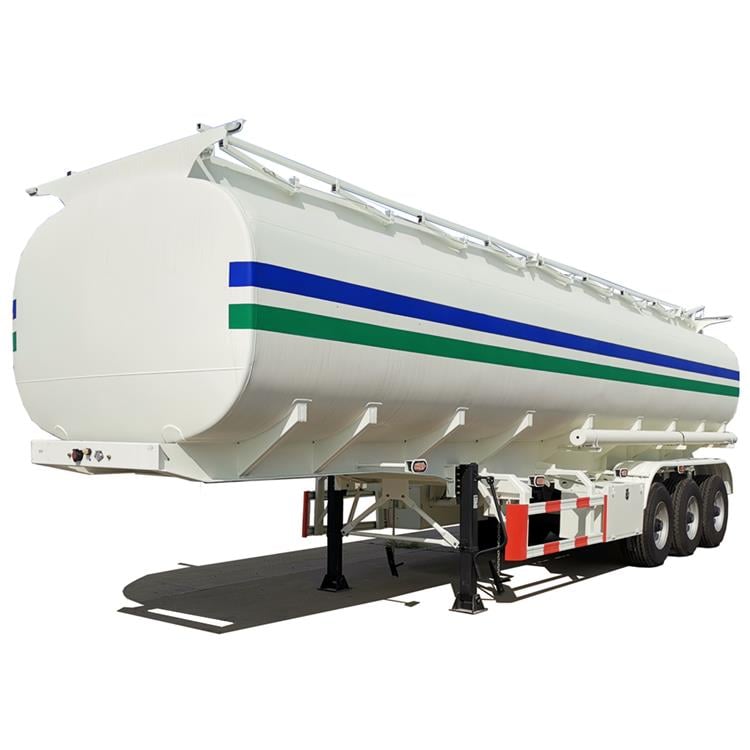

45000 Ltrs palm oil tanker price is mainly used to transport Palm Oil, which is generally suitable for long-distance transportation. The 45000 ltrs palm oil tanker price with an insulation layer can ensure that palm oil will not solidify.

SKU: 45000 Ltrs Palm Oil Tanker Trailer
GTIN: 6975766114954
MPN: TITAN9408224
Brand: TITAN

Palm Oil Tanker Price: 15300USD

The 45000 ltrs palm oil tanker price tank body has sufficient strength. There are anti-shock plates inside the diesel tank trailer. There are manholes and liquid discharge valves in the tank accessories.

One of our truck 45000 ltrs palm oil tanker trailer manufacturers can transport two kind of oil, it can be divided into tanks. The common 45000 ltrs tri axle tanker trailers for sale tank material is carbon steel Q345, thickness is 4mm-6mm national standard steel plate.‹Get Quotation›

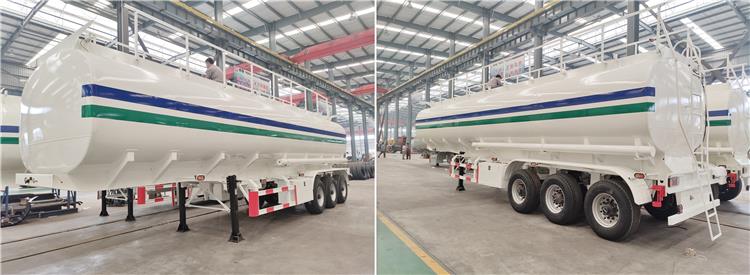

Tri Axle 45000 Ltrs Palm Oil Tanker Trailer Price for Sale Near Me

Palm Oil Tanker Price for Sale In Zimbabwe | Tri Axle Tanker Trailers for Sale

Tri Axle 45000 Ltrs Palm Oil Tanker Trailer Price for Sale Near Me

Palm Oil Tanker Price for Sale In Zimbabwe | Tri Axle Tanker Trailers for Sale

Tri Axle 45000 Ltrs Palm Oil Tanker Trailer Price for Sale Near Me

Palm Oil Tanker Price for Sale In Zimbabwe | Tri Axle Tanker Trailers for Sale

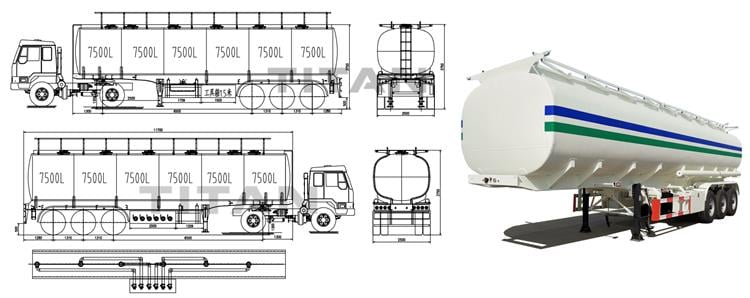

Specification of Palm Oil Tanker Price:

Dimension: 11700mm * 2550mm *3750mm

Tare Weight (semi trailer): About 8000-12800kg

Total volume(L): 45000 Liters

Tank Body Material: Q235 carbon steel

End plate: Q235 carbon steel

Manhole Cover: Carton steel

Bottom Valve: Aluminum  API Pneumatic Bottom Valve

Compressor: BOHAI 10m³/12m³ or other brands

Discharging Valve: Diameter is 3 or 4 inch

Compartments: 6 Compartment

Discharging Pipe: 4 inch rubber hose,2pcs,6m/each

Cat Walk: With (common model or special design)

Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material

Axle: 3 axles,13T,FUWA

Landing Gear: JOST(D200T) or China brand 28T

Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin

Suspension: Mechanical suspension

Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers

Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank

Rim: 9.00-22.5Chinese brand

Tire: 12.00R22.5

ABS: Optional

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.

Accessories: One standard tool box

Shipping Terms: By bulk cargo, RORO or 40HQ containers

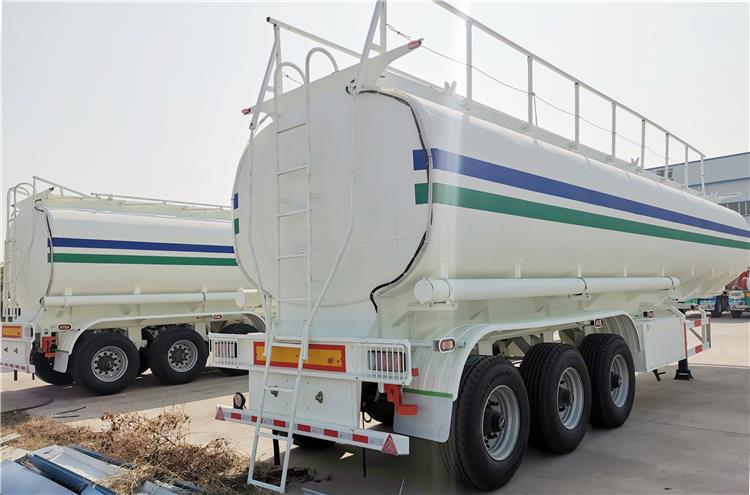

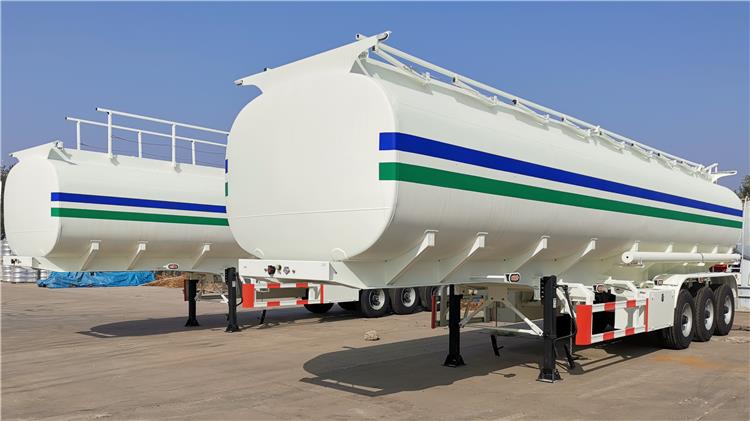

Tri Axle 45000 Ltrs Palm Oil Tanker Trailer Price for Sale Near Me



Parts of The Tri Axle Tanker Trailer for Sale

1. Fuel Outlet Valve. The special structure used in the fuel outlet valve help in ensuring that there is no oil leakage when the joint is removed.

2. Spill-Proof Sensor. When the liquid reaches the right height, the whistle or alarm stops.

3. Air Release Valve. The function of the valve is to adjust the pressure inside tank automatically.

4. Bottom Valve. The quick cut-off also prevents leakage and explosion in an accident. The quick cut-off is enough to save lives and prevent the loss of the liquid being transported.

5. Manhole Cover. The manhole cover is simply the cover on the palm oil tanker trailer manhole. Which keeps the tri axle tanker trailers for sale safe.

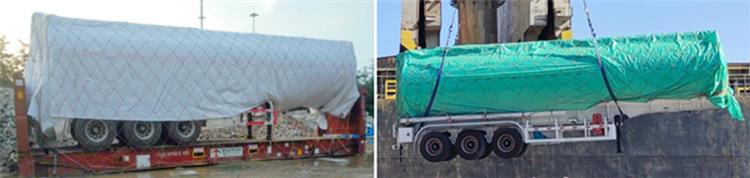

Packaging and shipping

Generally, 45000 ltrs tri axle tanker trailers for sale can reach customers after 7-25 days of transportation; we will do an excellent job to protect the tanker truck trailer from the seawater before transport.

Tri Axle 45000 Ltrs Palm Oil Tanker Trailer Price for Sale Near Me



Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.

45000 Liters Fuel Tanker Trailer with 4 Compartment Video
