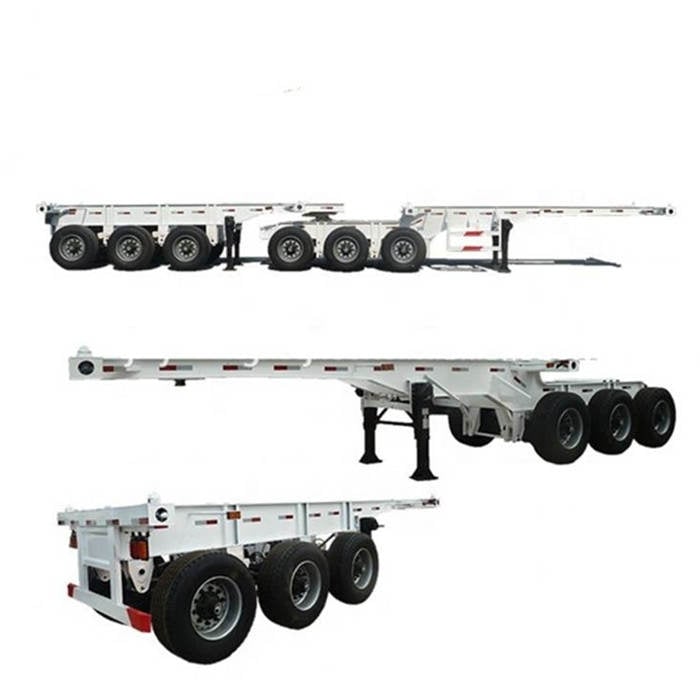

Superlink Skeleton Trailer
Superlink Skeleton Trailer

Superlink Skeleton Trailer

20000 USD

Different Parameters, Different Price. Price Reference Only.



TITAN produces high quality Superlink Skeleton Trailer to carry container 20ft container and bulk cargo.

SKU: Superlink Skeleton Trailer
GTIN: 06975766112011
MPN: TITAN9413006
Brand: TITAN

Product Description:

TITAN produces high quality Superlink Skeleton Trailer to carry container 20ft container and bulk cargo.

For the superlink trailer is populaized because of its flexibility. Each of the trailers can operate independently and increase the utilization coefficient of the tractor truck.

TITAN superlink skeleton trailers are noted for their highly robust structure steel, we can provide difference configurations of our super interlink skeleton chassis trailer to meet your transportation requirement.

Superlink Skeleton Trailer for Sale in Jamaica - TITAN Vehicle

Superlink Skeleton Trailer for Sale in Jamaica - TITAN Vehicle

Superlink Skeleton Trailer for Sale in Jamaica - TITAN Vehicle

Superlink Skeleton Trailer for Sale in Jamaica - TITAN Vehicle

Superlink Skeleton Trailer for Sale in Jamaica - TITAN Vehicle



Specification:

Model: Superlink Skeleton Trailer for Sale

Overall dimension: 14500mm X 2500mm X1579mm

Loading capacity(ton): ≤60T

Axles: 6 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 24 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
