Side tipper trailer can provide more carrying space and carrying capacity. Since the side of the vehicle body can be opened outwards, it is easy to load and unload goods up and down, and the loading volume can be increased without increasing the length of the vehicle, thereby improving transportation efficiency.

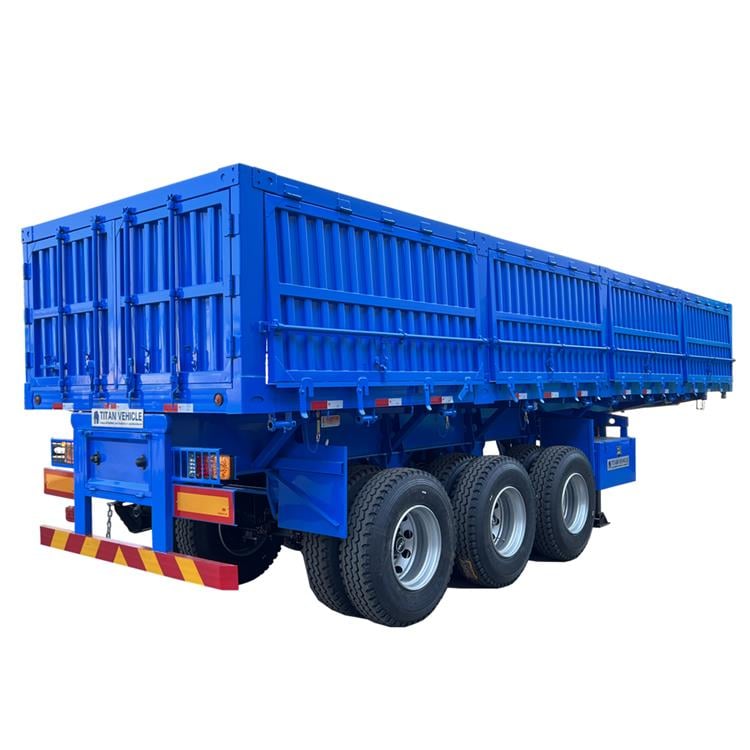

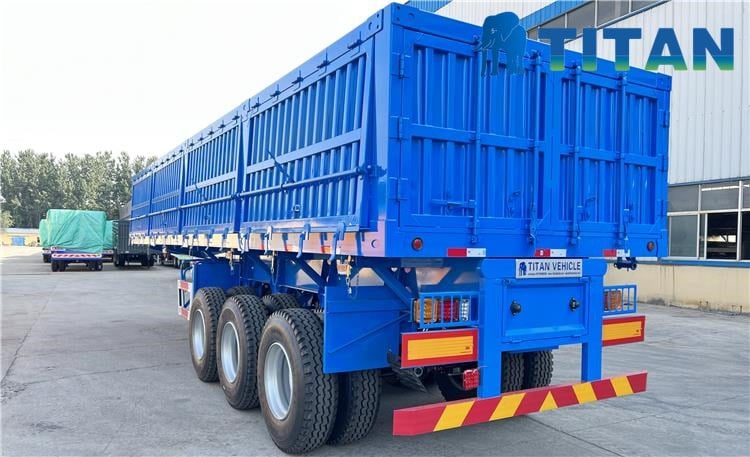

34 Ton Side Tipper Trailer for Sale In Jamaica
TITAN 34 ton side tipper trailer usesT700 high strength steel has high strength but also has a long service life. Which will not deform even if it carries 60 tons.
TITAN side tipper trailer cargo of adopts multiple reinforcements, especially the sidewall, it has double-crossing beams to enhance it.
TITAN side tipper trailer adopts enhanced suspension,the thickness of the suspension is 8 mm,and the diameter of the kin pin is 70 mm.
This is the inside picture of the side tipper trailer cargo, the thickness of the sidewall and bottom plate is 4 mm,which promise the cargo will not deform even the trailer carry heavy goods.

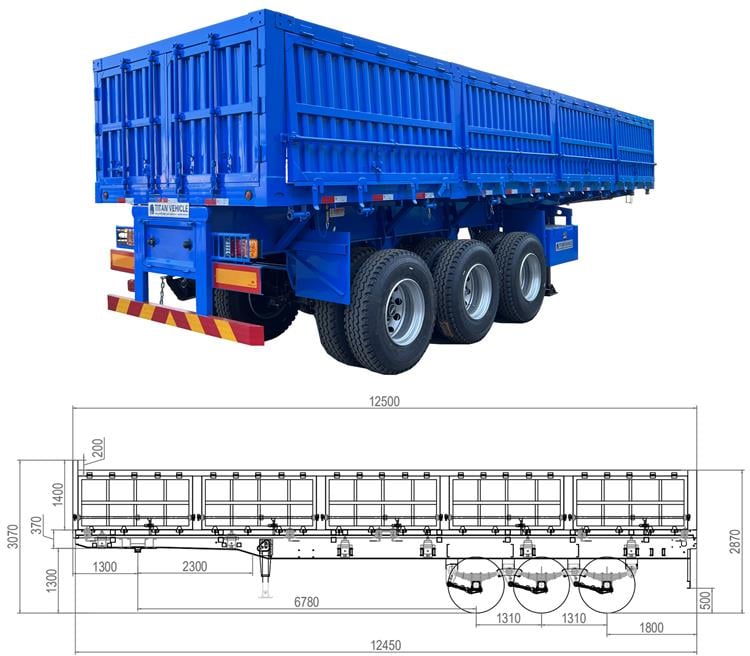

Dimension: 11000mmx2500mmx3200mm
Lifting System: Lifting cylinder 5x130 bore, a shift cylinder
Axle: 3 axle 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
