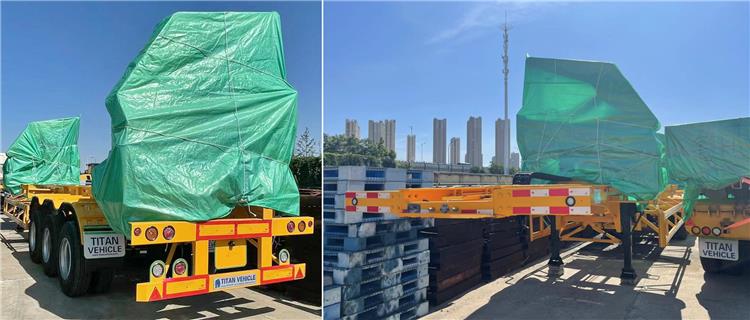

40 ft side loader price is generally delivered by bulk carrier or ro-ro. Before delivery, we spray wax the entire trailer, and cover important parts such as the boom with a layer of rain cloth.
Side loader price is very easy to operate. Only one person can complete the loading, transporting, unloading, trailering, and even palletizing of a full container to another container on the ground. The 40 ft container side loader has very low ground pressure and is suitable not only for field and warehouse operations but also for harsh off-road areas.
The Container side loader has a lifting capacity of 37 tons, is fast and stable, has an outreach of more than 4 meters, and is easy to operate. Side loader price can be equipped with an independent power pack system with a Kubota engine.
Side Loader Price | 40 ft Container Side Loader Trailer for Sale In Guyana
Side Loader Price | 40 ft Container Side Loader Trailer for Sale In Guyana
Side Loader Price | 40 ft Container Side Loader Trailer for Sale In Guyana
Side Loader Price | 40 ft Container Side Loader Trailer for Sale In Guyana
Max. lifting capacity: 37Ton
Max.stabilizer outreach: 3200mm
Max.working range: 4000mm
Overall height: 2500mm
Overall length: 1020mm
Max.pressure of hydraulic system: 28Mpa
Dimension(L*W*H): 14100*2500*4200mm
Axle: 3 axle* 13 ton (220mm brake pads)
Tire: 12 pcs, 12R22.5
Suspension: Heavy-duty type mechanical spring suspension
Kingpin: 3.5-inch bolted type
Braking system: WABCO Emergency valve
Landing gear: JOST
Tow Chain: lgus (imported)
Power source: Power take-off (equipped)
Hydraulic pump: Gear type Casappa Italy
Direction control valves: AMCA Holand
Remote Control: NBB Germany
Loading and Unloading containers: The container can be stuffed or unstuffed more easily, without the need for specific infrastructures. Side loader price range of equipment allows handling containers even on rough ground.
Double stacking of containers: TITAN side loader price can double stack two high cube containers on the ground without chain shorteners. It avoids investing in specific equipment. 37 tons lifting capacity, tested up to 45 tons
Transfer from/to other trailers: When several containers must be delivered in the same yard, the Container side loader can pick up the containers on the companion trailers to ground them. Waiting time for side loader trucks and container side loader is drastically reduced, thus improving the efficiency and profitability of each trip.
Side loader trailer for sale are usually adopted by bulk carriers or ro-ro ships. We spray wax on the petrol trailer. Cover 40ft container side loader trailer with a waterproof rain cloth.
Some countries can also ship by container or frame cabinet.
Through this videos, you can learn about different types of container side loader trailers, as well as the process, testing, packaging and customer feedback, etc.
