3 Axle 40Ft Flatbed Trailers
3 Axle 40Ft Flatbed Trailers

3 Axle 40Ft Flatbed Trailers

9900 USD

Price: 9900 USD



The dimension of the tri axle semi flatbed trailer is 12500mm*2500mm*1550mm. It can transport 60-80T goods or 20/40ft container.

SKU: 3 Axle 40Ft Flatbed Trailers
GTIN: 06975766110246
MPN: TITAN9303020
Brand: TITAN

3 Axle 40Ft Flatbed Trailers:

3 axle 40ft flatbed trailers for sale in Nigeria is usually used to transport 20ft or 40ft containers.

TITAN uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable. To make sure the service life of the 40ft trailer for sale, all the spare parts we adopt are World Famous brand.

Price of Trailer in Nigeria | 3 Axle 40Ft Flatbed Trailers for Sale

Price of Trailer in Nigeria | 3 Axle 40Ft Flatbed Trailers for Sale

Price of Trailer in Nigeria | 3 Axle 40Ft Flatbed Trailers for Sale

Price of Trailer in Nigeria | 3 Axle 40Ft Flatbed Trailers for Sale

Price of Trailer in Nigeria | 3 Axle 40Ft Flatbed Trailers for Sale

Price of Trailer in Nigeria | 3 Axle 40Ft Flatbed Trailers for Sale



Price of Trailer in Nigeria Specification:

Model: 40 foot flatbed semi trailer for sale

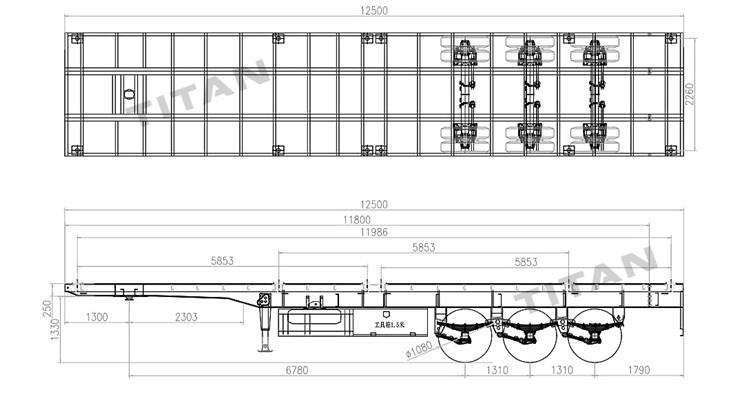

Dimension(mm): 12500x2500x1550mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats



40Ft Trailer for Sale Advantage:

1. TITAN Vehicle adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life.

2. Also the 3 axle flatbed trailers for sale floor is checker plate, this will keep the other bulk cargo more stable.

3. Durable mechanical widened spring suspension, make sure the stable and safety.

4. Hight Quality container locks, make sure the stable and safety of the loads.

5. Polyurethane paint, the vehicle is more beautiful, effective protection of the body against rust, extend the life of the vehicle.

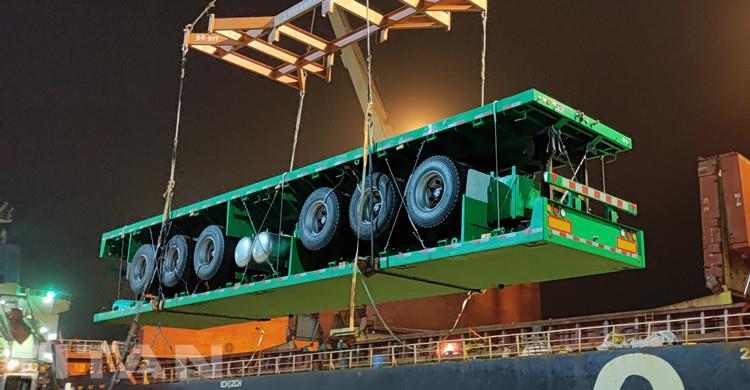

Delivery of 3 Axle 40Ft Flatbed Trailers for Sale

Price of Trailer in Nigeria | 3 Axle 40Ft Flatbed Trailers for Sale



Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.





Please click "TITAN Flatbed Trailer" to get detailed video!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
