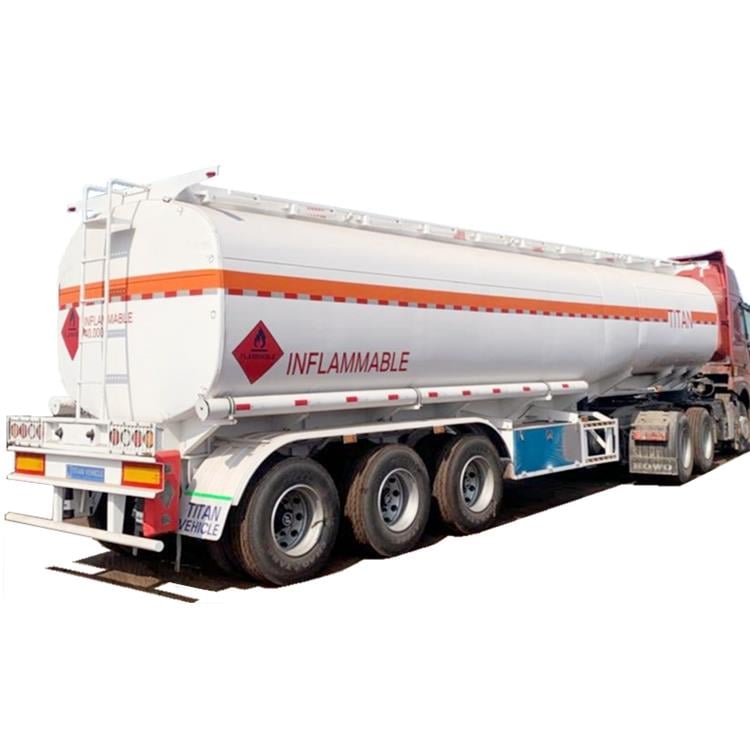

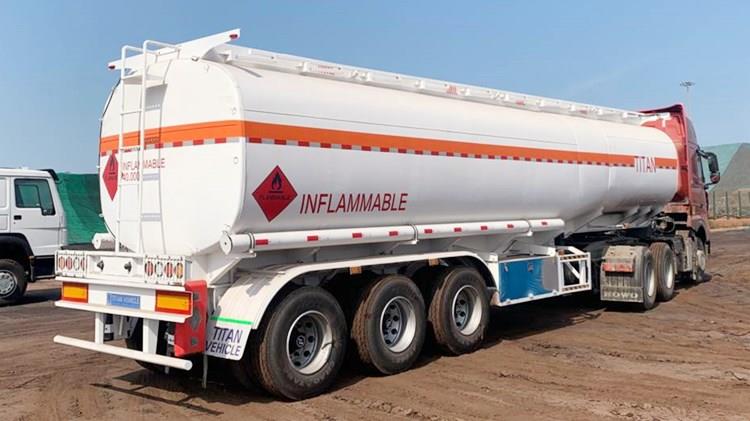

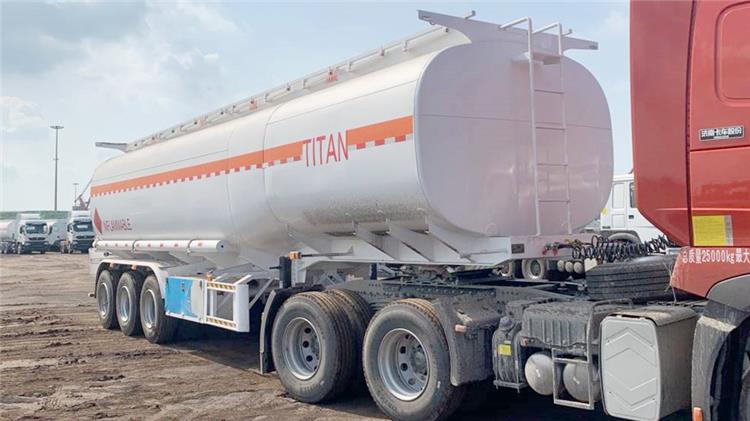

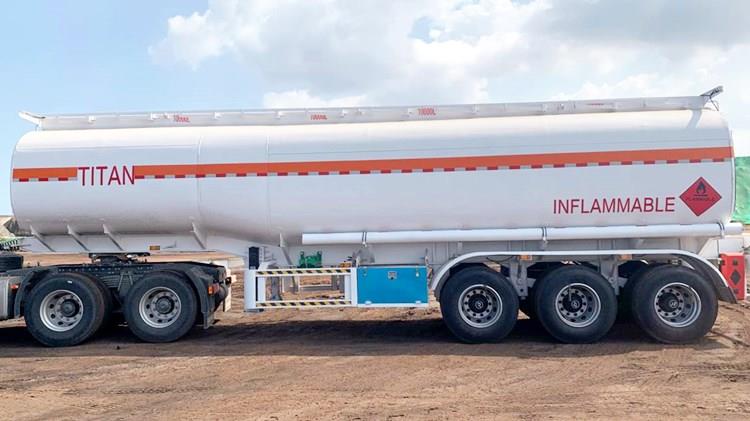

42000l oil tanker trailer are mainly used for transport liquid and oil. The tank body is generally made of carbon steel sheet, and it can also be made of aluminum alloy fuel semi trailer, stainless steel tanker for sale, polyethylene and other materials.
Crude oil tank trailers for sale is generally used to transport gasoline, kerosene, diesel, vegetable oil, edible oil, heavy oil, coal tar, and non-petroleum products such as alcohol, aldehyde, benzene, ether, and other liquid substances.
The oil tank trailer for sale has a capacity of 30000-60000 liters, which is generally used for long-distance transportation, transporting liquid substances all over the world to realize the reasonable distribution and use of resources.‹Get Quotation›
Crude Oil Tanker Trailer for Sale | Crude Oil Tank Trailers for Sale
Crude Oil Tanker Trailer for Sale | Crude Oil Tank Trailers for Sale
Crude Oil Tanker Trailer for Sale | Crude Oil Tank Trailers for Sale

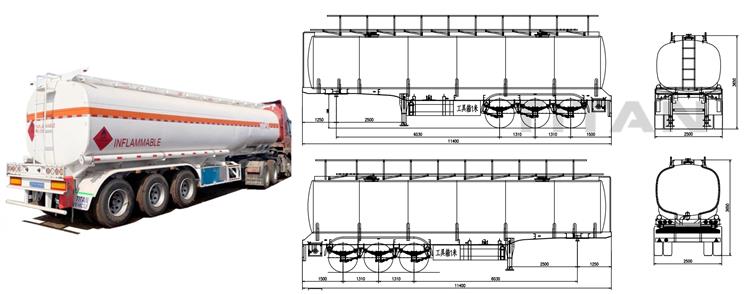

Dimension: 11400mm * 2500mm *3650mm
Tare Weight (semi trailer): About 8000-12800kg
Oil Tank Trailer for Sale Total volume(L): 42000 Liters
Tank Body Material: Q235 carbon steel
End plate: Q235 carbon steel
Oil Tank Trailer for Sale Manhole Cover: Carton steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Compressor: BOHAI 10m³/12m³ or other brands
Oil Tank Trailer for Sale Discharging Valve: Diameter is 3 or 4 inch
Compartments: Single Compartment
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Oil Tank Trailer for Sale Axle: 3 axles,13T,FUWA
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5Chinese brand
Tire: 12.00R22.5
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
1. 3D Drawing and Hyper Mesh & Ansys. Fully utilize physical property, support higher performance, reducing operating cost
2. ADR standard API Adaptor. Crucial to any API bottom loading system
3. API Sockets Optic. Support bottom loading system
4. ADR standard Manhole with vapor vent.
5. More safety by Lower center gravity Gooseneck design
6. Larger volume by semi-elliptical section barrel design
7. 10-year Long service life by oil tanker trailer automatic arc welding
Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
