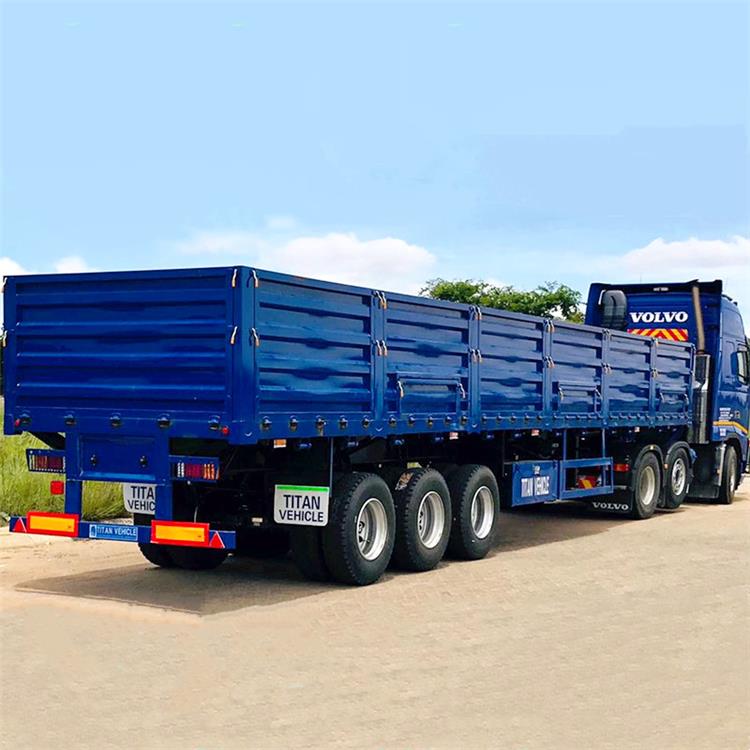

Tri Axle Grain Transport Trailer
Tri Axle Grain Transport Trailer

Tri Axle Grain Transport Trailer

10000 USD

Price: 10000USD              Grain transport trailer are used extensively throughout the Africa to transport agricultural products as well as any other commodity that can be hauled in bulk and loaded and unloaded through the trailer.

SKU: Tri Axle Grain Transport Trailer
GTIN: 06975766110291
MPN: TITAN9201013
Brand: TITAN

Grain Transport Trailer Description:

Grain transport trailer is a trailer pulled by a truck tractor and used to haul bulk commodity products, such as grain. These trailers are used extensively throughout Africa to transport agricultural products as well as any other commodity that can be hauled in bulk and loaded and unloaded through the trailer.

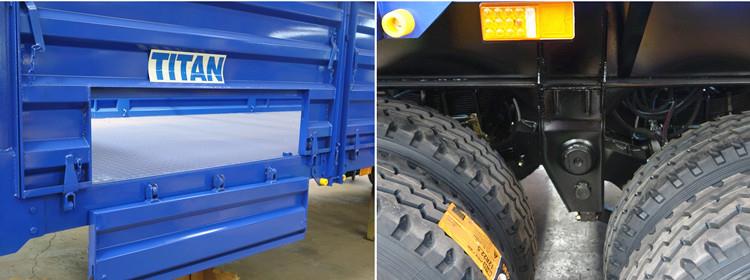

The small door of the Grain transport trailer facilitates the loading and unloading of grain.

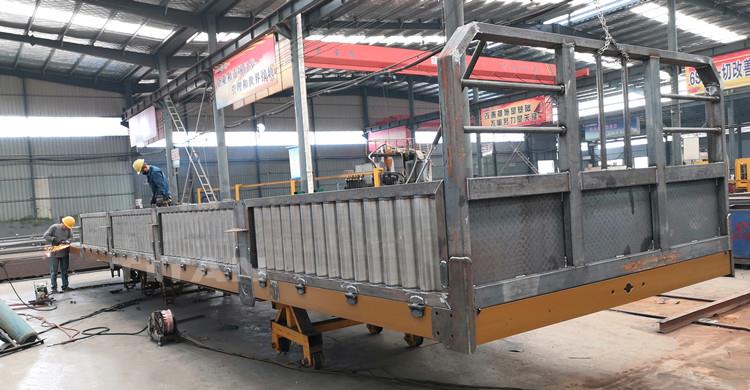

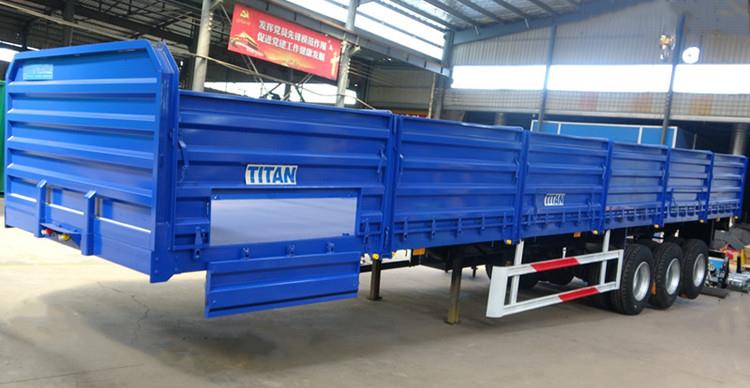

Side Wall Semi Trailer for Grain Transport - TITAN Vehicle

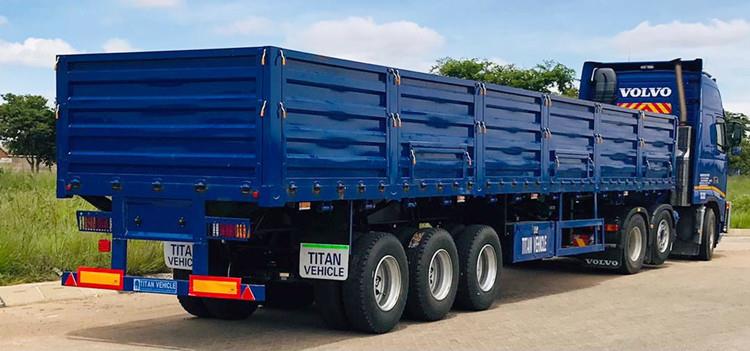

Fudeng Tri Axle 60 Ton Grain Transport Trailer for Sale in Sudan

Side Wall Semi Trailer for Grain Transport - TITAN Vehicle

Fudeng Tri Axle 60 Ton Grain Transport Trailer for Sale in Sudan

Side Wall Semi Trailer for Grain Transport - TITAN Vehicle

Fudeng Tri Axle 60 Ton Grain Transport Trailer for Sale in Sudan

Specifications:

Tare Weight: About 7.6T

Dimension(mm): 13000x2500x3050mm

Trailer Sides: 1500mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Bottom Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats



Advantages:

1. Fudeng trailer adopts high strength steel material to manufacture the side wall semi trailer, it can make the sidewall trailer have a higher loading capacity and a longer service life.

2.  Fudeng trailer uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.

3. Hight quality side wall, make sure the stable and safety of the loads.

4. Also the trailers floor is a checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.

5. To make sure the service life of the side wall semi trailers, all the spare parts we adopt are world famous brand.

Side Wall Semi Trailer for Grain Transport - TITAN Vehicle

Fudeng Tri Axle 60 Ton Grain Transport Trailer for Sale in Sudan

Video of triaxle trailer with boards:



Welcome to leave your inquiry!

We will provide quotation and more details, drawings, pictures, videos for you!
