4 Axle Extendable Trailer
4 Axle Extendable Trailer 4 Axle Extendable Trailer

4 Axle Extendable Trailer

61530 USD

Different Parameters, Different Price. Price Reference Only.



Extendable trailer and telescopic trailer for sale from China TITAN are widely used for long cargo and wind turbine blades transport.

SKU: 58M Extendable Windblade Trailer
GTIN: 6975766110673
MPN: TITAN9411024
Brand: TITAN

58M Extendable Windblade Trailer Product Description:

An extendable trailer configuration is a trailer mechanism that is designed and adapted to be towed through the use if a tractor truck travelling along a roadway. The extension on the trailer is done efficiently take loads that may be of different lengths as the job will demand.

Extendable telescopic beam/boom protects wind turbine rotor blade from any damages or distortions during logistic, it just performed like bracket holder of the rotor blade. Please go blade trailer if you need to know more info.

58M Extendable Windblade Trailer for Sale in Philippines

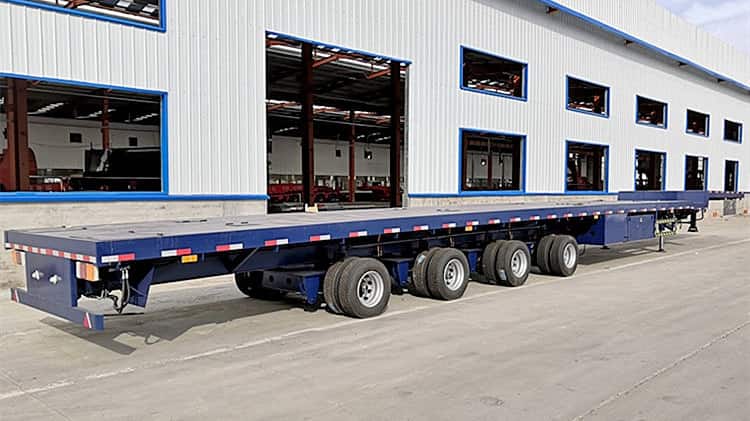

58m Extendable Windblade Trailer

58M Extendable Windblade Trailer for Sale in Philippines

58M Extendable Windblade Trailer for Sale

58M Extendable Windblade Trailer for Sale in Philippines

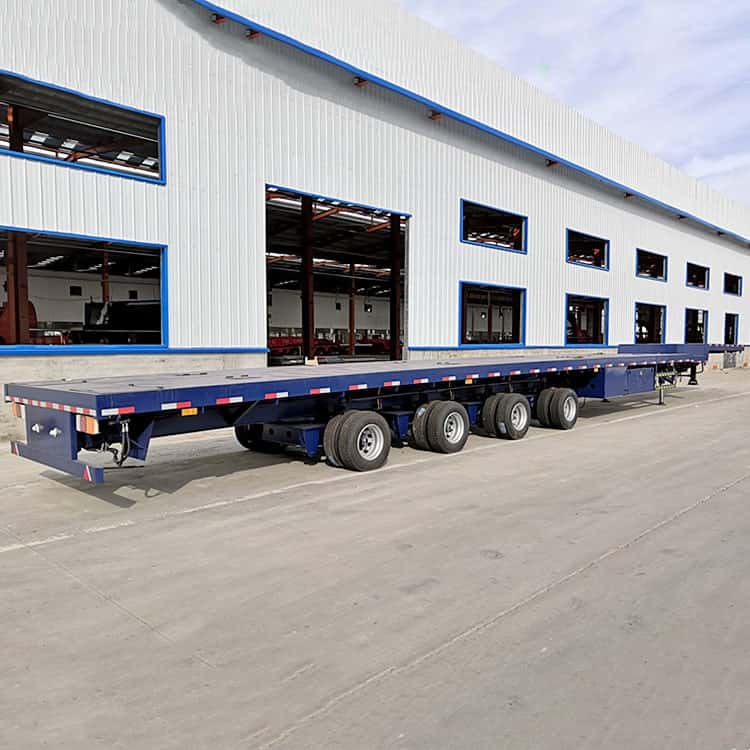

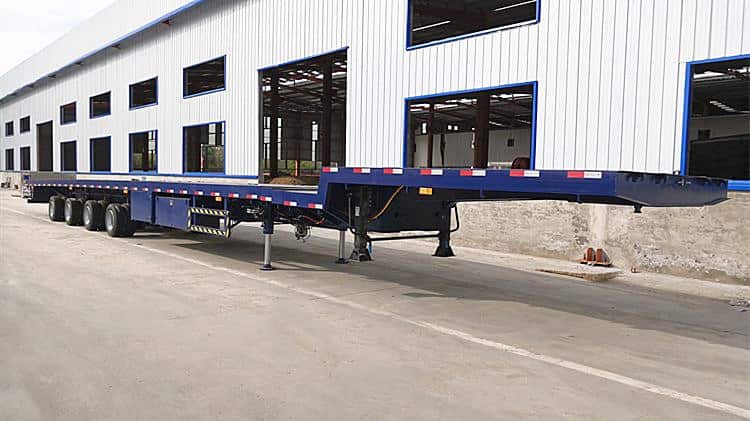

4 Axle Extendable Trailer

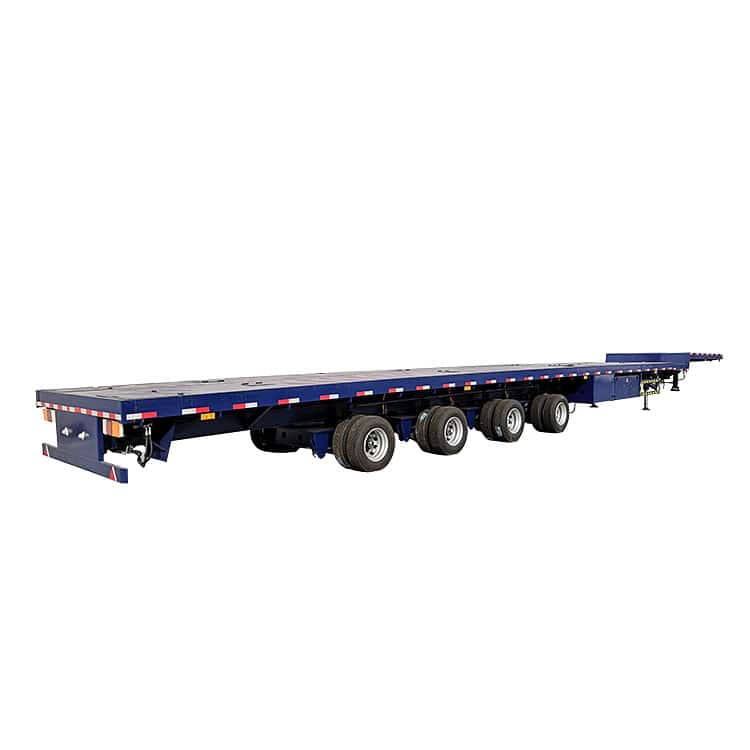

4 axle extendable trailer



Specification:

Brand: TITAN 58M 4 Axle Extendable Blades Wind Turbine Trailer

Dimension: 22,450mmX3120mmX 1580mm

Total length: 61,000mm after extension

Loading capacity: 90 Ton

Platform thickness: 3 mm

Hydraulic power station: Diesel engine

Axle: 4 axle

Suspension: Hydraulic suspension.

Tire: 16 units, Triangle brand

Braking system: WABCO emergency valve

King pin: 3.5 inch high tensile steel bolted type

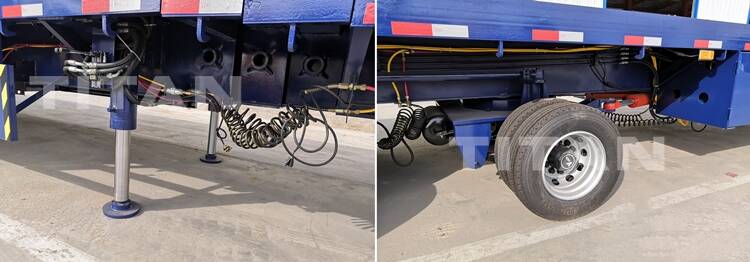

Landing gear: JOST C200

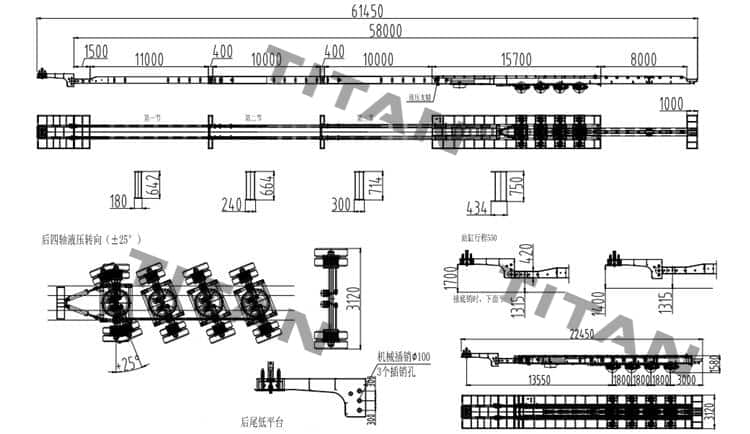

4 axle extendable trailer drawing

Advantage:

1.Trailer's length from 22 meters extend to 58 meters

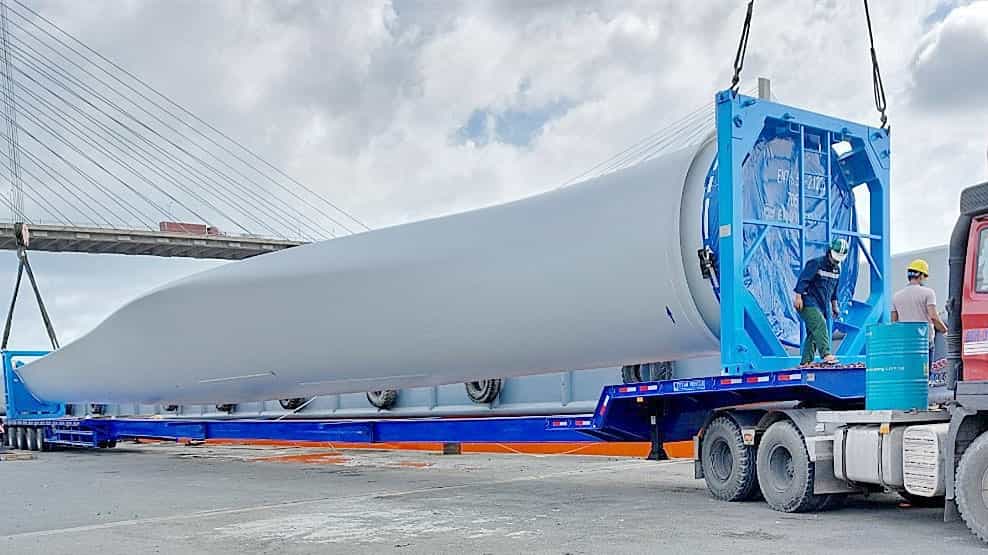

2.Transport the 45 meters to 80 meters Windmill Turbine Blade.

3.Loading capacity is up to 90 ton

4.Steerable axles, all wheels steering.

5.Highly robust frames and outstanding stability of the extension beam.

6.Mechanical spring suspension, air suspension, or hydraulic suspension is an option

7.Manual valve operation and wireless remote control.

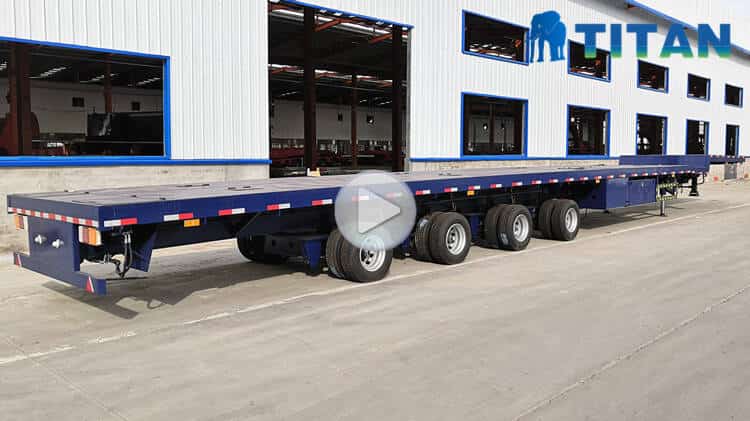

58M Extendable Blades Wind Turbine Trailer details display video

TITAN 58M 4 Axle Extendable Blades Wind Turbine Trailer

Please click "TITAN Wind Blade Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
