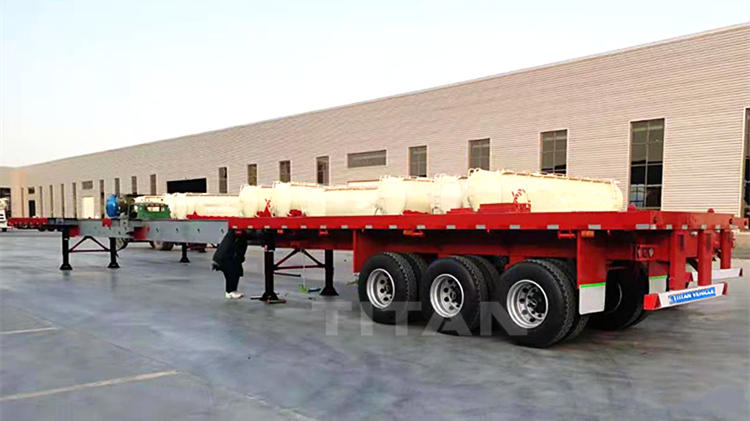

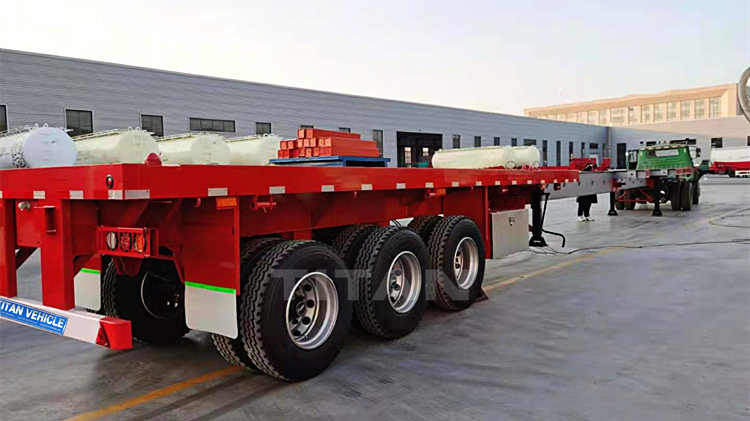

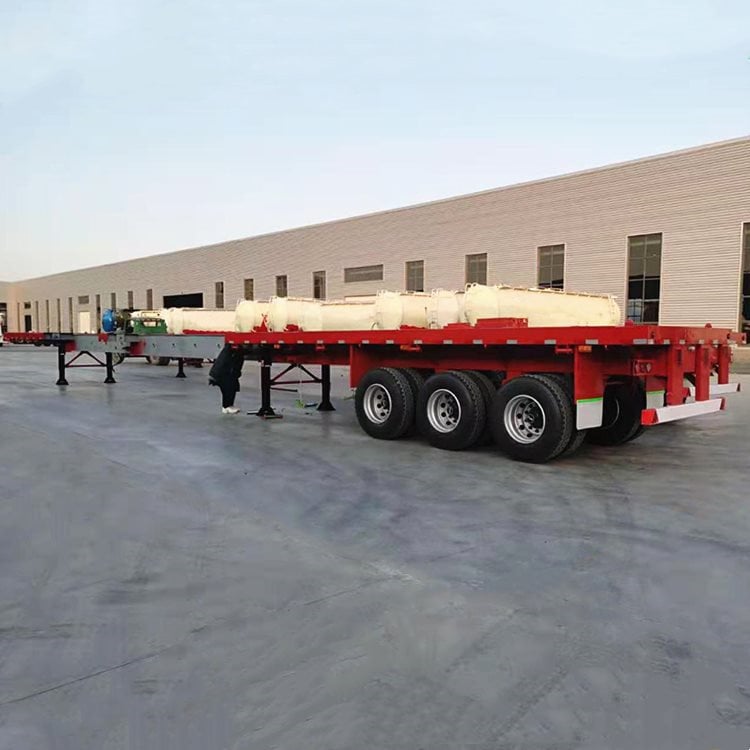

3 Axle Extendable Flat Bed Trailer

3 Axle Extendable Flat Bed Trailer Product Description:

TITAN special vehicle extendable flat bed trailers used for long pipes, wind blade transportation. The capacity can range from 10 tons to 80 tons available, width from 2.5 meters to 3.5 meters or customized. We manufacture meters length extend to 62 meters for wind blade and other abnormal long cargo.

Specification:

Transport ：long rails, pipes, 20/40ft container

Extend: 12.5m to 24m

Floor : 3 mm checkered plate

Axles：3 axles

Suspension：Mechanical spring suspension

Tire：12pcs

King pin：2" (50#) or 3.5"(90#) high tensile steel bolted type

Landing gear：JOST

Brake system: WABCO

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Advantage:

1. Strong trailer frame was made from T700 steel.

2. All cross beams are completely reinforced

3. Heavy duty type suspension

4. Strong container lock stand

5. Mechanical, airbag and bogie suspension to meet your demand transportation demand.

Through the video you can know more details about the extendable flat bed trailer , 3 axle extendable flat bed trailer , 24m extendable flat bed trailer for sale.

Please click "TITAN Extendable Flatbed Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
