China Dump Trailer Prices

Product description:

China Dump Trailer adopts high strength steel to make it durable when loading the sand or small stones or rocks. And the China Dump Trailer loading capacity is 40t, 60t, 80t, 100T.

China Dump Trailer Manufacturer equipped with reliable hydraulic cylinder. We can customize the dump trailer according to your special need, like U shape dump, end dump, side tipper, and container tippers

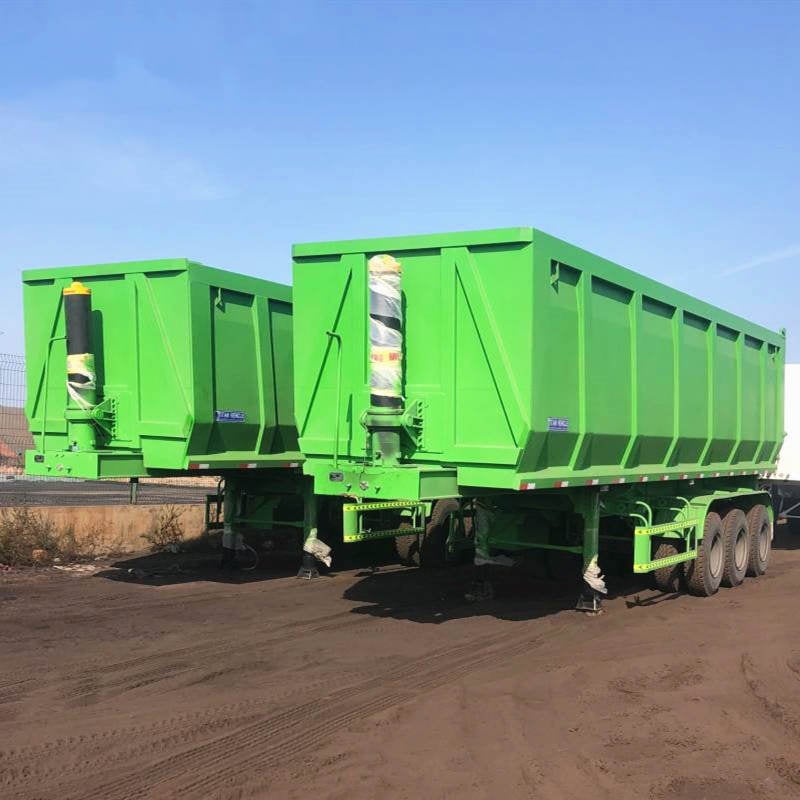

China 3 axle Dump Trailer price

China Dump Trailer  3 axle Capacity 100 tonnes

China dump trailer Specifications:

Dimension: 8500mmx2500mm x3950mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(m³): 30m³ -50m³

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click " TITAN Tipper Semi Trailer" to get detailed videos!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
