Cement Trailer V Shape (Type) is used for carrying cement, lime, powder calcite, silica, flour and any other powder materials in bulk, which is mostly preferred all over the world.
Trucks are used to transport cement trailers. Those we are producing have load capacities from 20 to 60 m3. The carrier consists of a tank on a semitrailer. Mounted inside the tank are chutes that feed air in to the cement, the chutes consist of the metal troug, a porous partition made of special material, and a metal incline .An air compressor is mounted on the chassis of the trailer usually on the front of the trailer. Wee use 3 head or 2 Head, powered compressor with pistons and Diesel Deutz motor or Electirical motor Bekomsan brand.
Tanker body material : 4mm high stainless steel
Payload : 40-60 Ton
Axles:3 axles
Tire:12 units
Diesel Engine : WEICHAI Brand
Compressor : BOHAI
Manhole Cover : Carbon steel or Aluminum 500mm(Diameter)
Discharging Valve : Diameter is 3 or 4 inch
Suspension:Heavy duty mechanical suspension
Langing gear:JOST
Brake system : WABCO
1. TITAN dry bulk cement tank trailer , adopt high strength wear-resistant steel. To fabric the most durable tankers, especially for Africa Market, considering the road condition.
2. TITAN adopts the advanced machine, that ensure the high quality of welding seams, long service life and good appearance in tank body.
3. After the production, all the TITAN cement tank trailer will go through the pressure test and metal inspection testing, to ensure a good sealing property of our cement tank trailer.
4. There are 10 air bags inside the tank (others only 6 or 8 ).
5. TITAN Vehicle uses world-famous brand diesel-engine Weichai 4102 to help the air compressor work better, the discharging speed can reach to 1.6ton per minute.

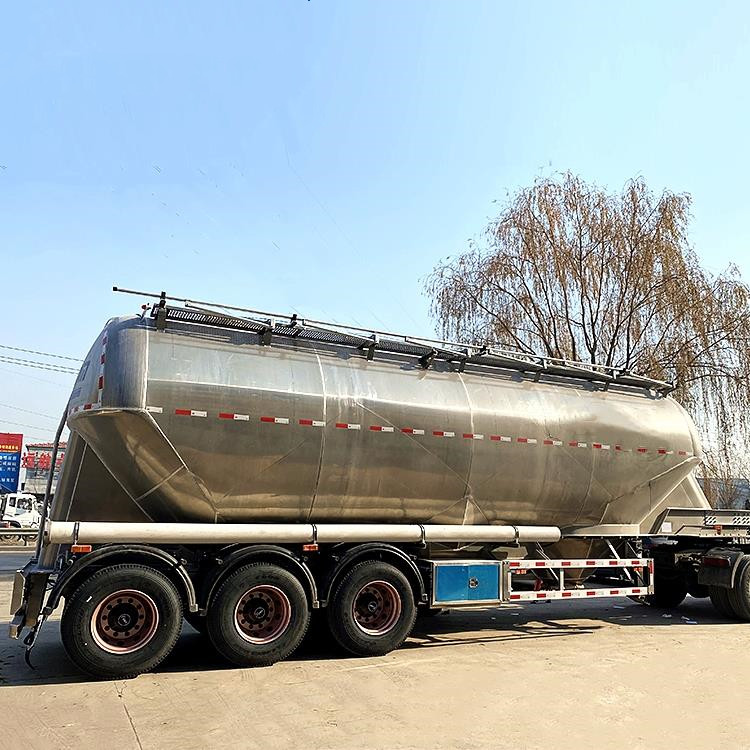

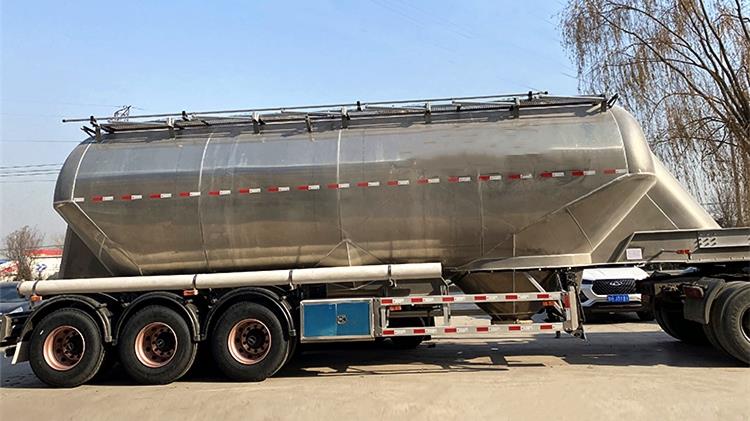

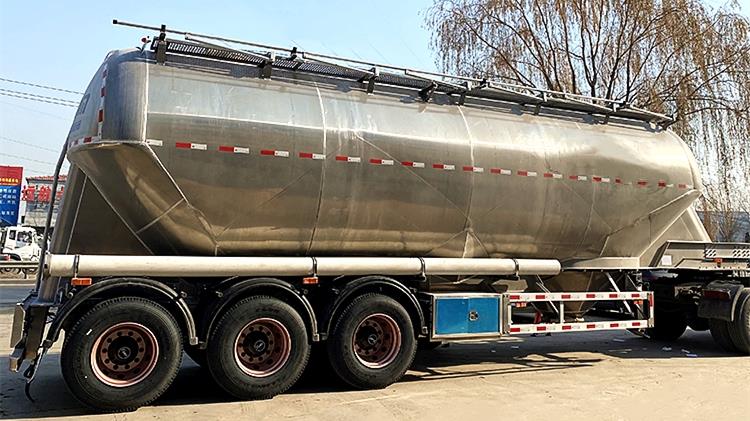

Through the video, you can know different types of aluminum alloy wheat trailer , aluminum alloy flour tanker trailer , wheat flour tanker trailer, etc.

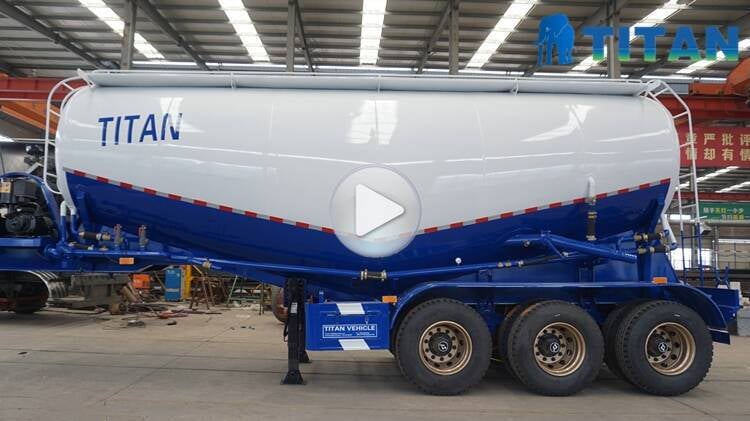

Please click "TITAN Cement Bulker Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
