64m Extendable Modular Wind Blade Trailer

Product Description:

TITAN Extendable Modular Windmill Turbine Blade Trailer for Carrying Wind Blade

TITAN Extendable Modular Trailer adapts perfectly to haul 76 meters to 90 meters long windmill turbine blade transportation and long bulky goods. TITAN Extendable Modular Trailer are noted for their highly robust frames and outstanding stability of the extension beam. the high standard of the workmanship and welding process ensures easy adjustment of the extension beams.

TITAN Extendable Modular Trailer can be adjusted to fit any size or band of Turbine Blade, TITAN can provide you the customize wind blade trailer to meet your transport requirements.

 Extendable modular trailer for 76 meters to 90 meters offshore wind turbine blades

TITAN 64 meters Extendable Modular Wind Trailer

Specification:

Brand: TITAN Extendable Modular Trailer

Closed state dimension: 27740mm*3000mm*900mm

Total length: 64000mm after extension

Loading capacity: 25-45 ton wind blade

Hydraulic power station: Diesel engine

Axle: 3 units steering axle

Suspension: Hydraulic suspension

Tyre: 24 units, Triangle brand

Braking system: WABCO emergency valve

King pin: 3.5 inch high tensile steel bolted type

Landing gear: JOST C200

Advantage:

1. Trailer's length from 27 meters extend to 64 meters.

2. Transport the 76 meters to 90 meters offshore wind turbine blades.

3. Loading capacity is 25-45 tons wind blade.

4. Steerable axles, all wheels steering.

5. Highly robust frames and outstanding stability of extension beam.

6. Mechanical spring suspension, air suspension or hydraulic suspension is an option.

7. Manual valve operation and wireless remote control.

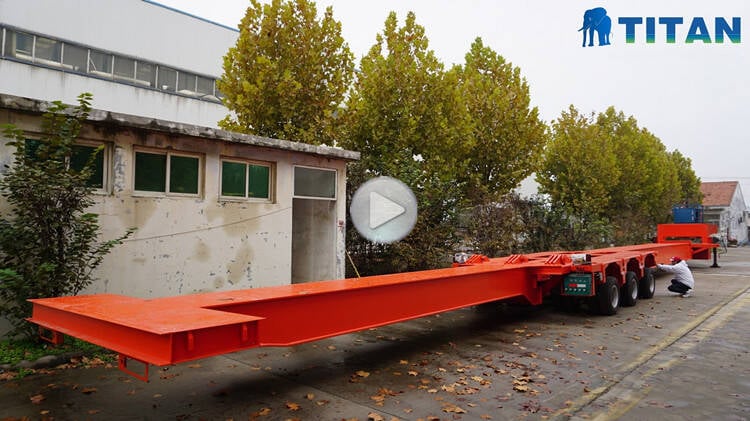

64m Extendable Modular Trailer details display video

Please click "TITAN Wind Blade Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
