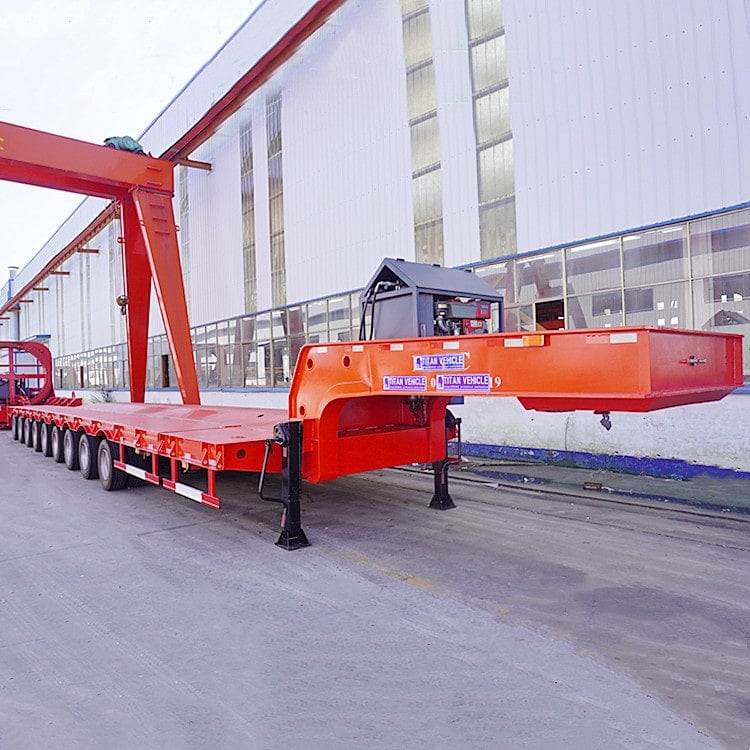

9 Axle Extendable Low Bed Trailer

9 Axle Extendable Low Bed Trailer Product Description:

TITAN 9 axles Extendable Low Bed Trailer for transporting tower.TITAN extendable low bed excavator trailer is noted for their highly robust frames and outstanding stability of the extension beam.

TITAN  9 axle extendable lowbed trailer use high strength steel material to ensure the capacity, the load can be up to 60 to 150 ton payload.TITAN designs and produces tower section semi trailer for hauling 30 meters to 35 meter wind tower.

After the mounting process, the wind tower mounting plate holes are precision machines to fit perfectly no matter what band or size, greatly reducing damage to the paint on the tower section.

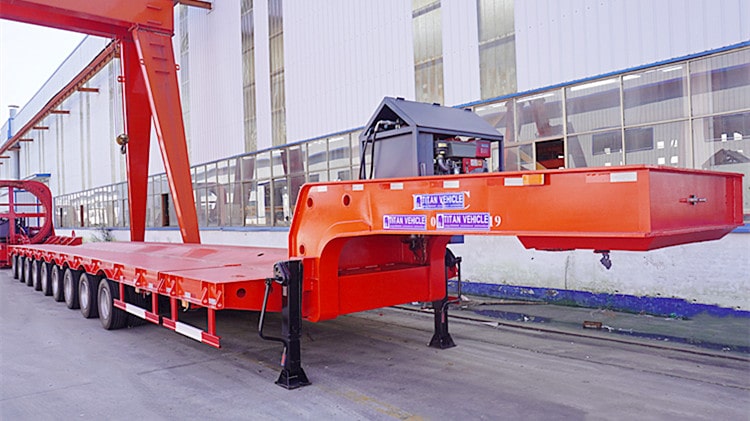

9 Axle Extendable Low Bed Trailer for Sale

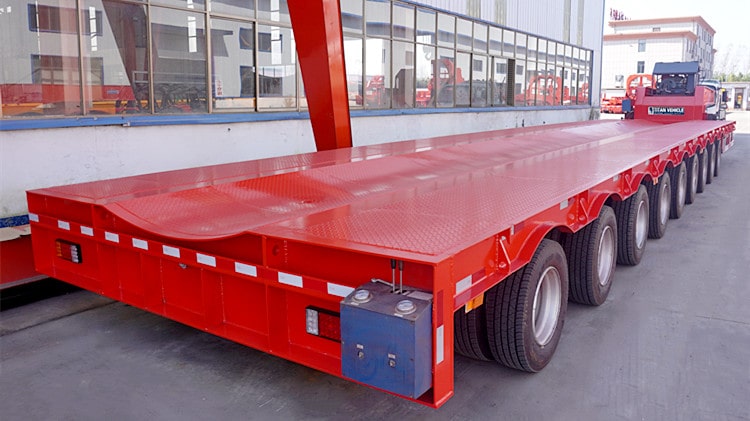

9 Axle Extendable Low Bed Excavator Trailer

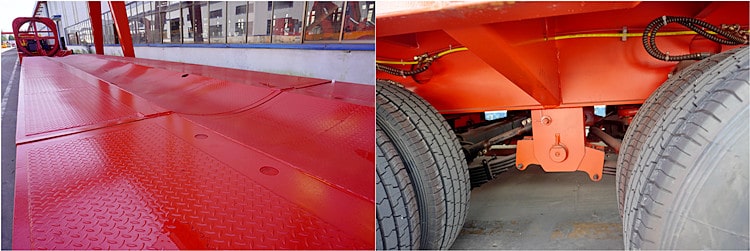

9 Axle Extendable Lowbed Trailer for Sale

Specification：

Dimension(L*W*H): 19650mm X 3400mm X 1950mm ( closed state)

Deadweight without ramps: 28.5 Ton

Deadweight with ramps: 29.5 Ton

Frame: HG60 high strength steel frame

Loading capacity: 90 Ton

Length: 18,500mm at closed state; 33,500mm after total extended

Width: 2,990mm + 2 X 250mm side swing bracket

Height: 200mm+/-90mm

Axle: 9 Axles, one axle fixed and 8 axles steerable

Maximum steering angle: +/-25°

Tyre: 36 units, 215/75R17.5

Gooseneck: Hydraulic gooseneck

Suspension: Hydraulic lifting suspension (only for adjusting the platform levelling needed)

Hydraulic power station: 1 set,12Kw diesel engine

Loading Ramps: 1 set, detachable ramps

Landing gear: JOST C200

Operation 2 wireless remote control: + 1 control valve panel

Drawing of 9 Axle Extendable Lowbed Trailer

Advantage

1. 250mm wideners are equipped on both sides of the load-bearing platform; the length of the load-bearing platform is 14.5m, with a 2-level tensile structure, which can stretch 7500x2 to meet the requirements of 29m after the freight platform is stretched;

2. The gooseneck is a power gooseneck, with a device for adjusting the height of the cargo platform and setting the steering part of the axle;

3. The suspension is hydraulic suspension, with lifting function, the force between the axles is balanced by the suspension cylinder, and it has the function of lifting the axle independently;

4. This car has 9 axles, and the axles include 8 active steering axles, 4 in the front and 4 axles in the back; The tires are 235/75R17.5;

5. The active steering axle is controlled by hydraulic cylinders.
