The 6 axle 45cbm/cubic tractor tipper trailer train is mainly composed of a tractor and a semi-trailer. The tractor is connected by a saddle and a 6 axle 45cbm/cubic tractor tipper trailer to form a semi-trailer train. The 6 axle 45cbm/cubic tractor tipper trailer hydraulic lift system is mainly composed of power take-off (transmission), hydraulic pump, lift valve, pneumatic control valve, limit valve, hydraulic cylinder, hydraulic oil tank, high (low) pressure oil pipe and so on.
6 Axle 45cbm/cubic tractor tipper trailer can be divided into two categories according to their uses: heavy and super heavy 6 axle 45cbm/cubic tractor tipper trailer for off-highway transportation, which mainly undertake the transportation tasksof large mines and projects and are usually used together with excavators.‹Get Quotation›

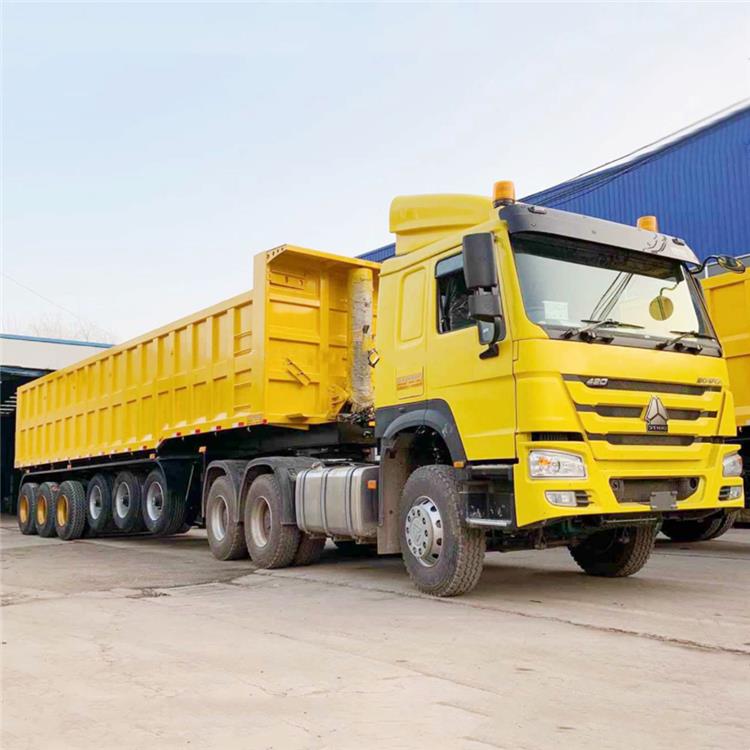

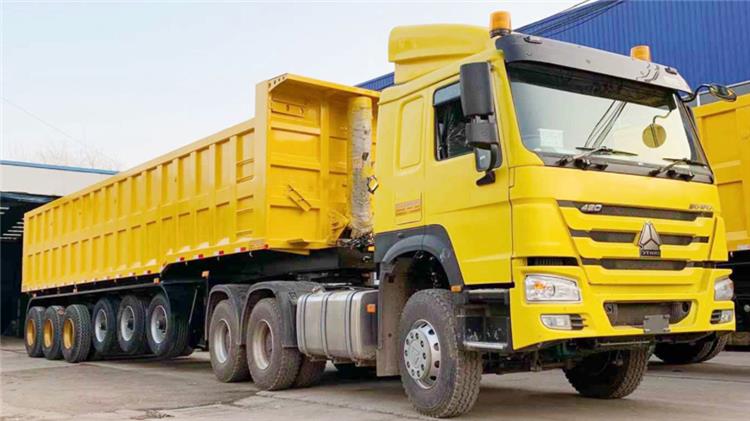

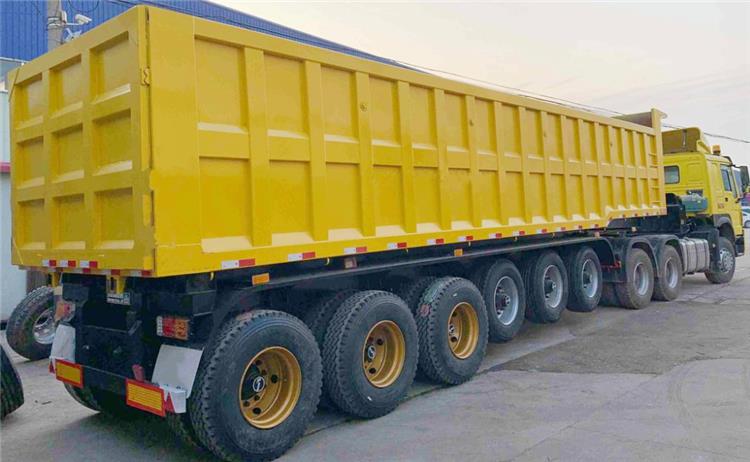

6 Axle 45CBM/Cubic Semi Tractor Tipper Tipping Trailer for Sale In Ghana Accra
6 Axle 45CBM/Cubic Semi Tractor Tipper Tipping Trailer for Sale In Ghana Accra
6 Axle 45CBM/Cubic Semi Tractor Tipper Tipping Trailer for Sale In Ghana Accra
Details of 6 Axle 45CBM/Cubic Semi Tractor Tipper Tipping Trailer

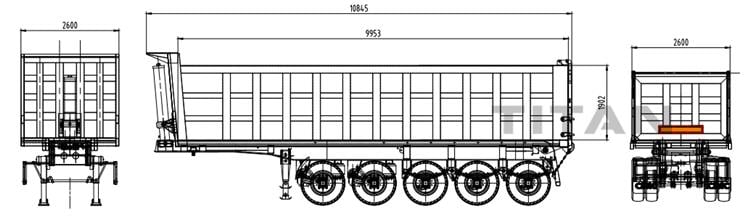

Dimension: 12055mm * 2600mm *3600mm
Total volume(cbm): 45cbm
Side wall thickness: 4 - 6mm
End plate: 8mm

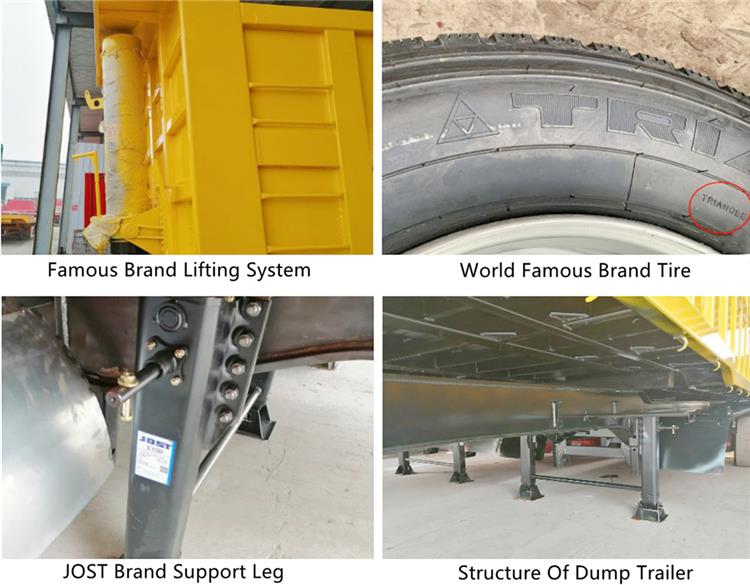

Lifting System: Full set of HYVA lifting cylinder
Axle: 6 Axle, 16T, FUWA
Rim: 8.0-20 or 9.00-20
Tire: 12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand

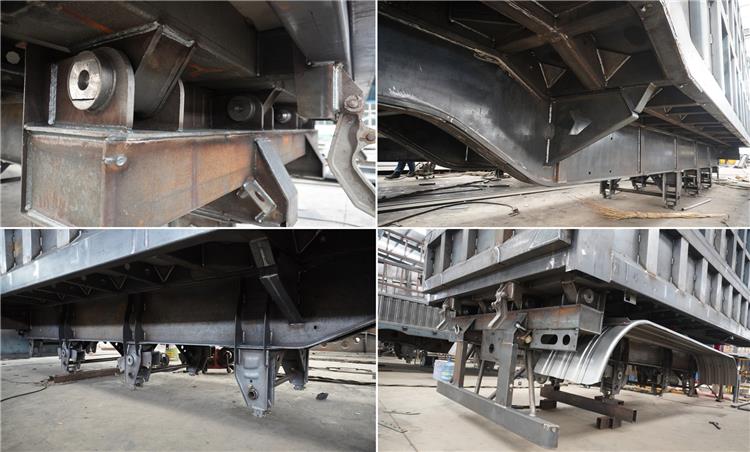

Main beam: Height: 480mm-500mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm, Material: T700 steel.
Bottom Platform: 4-6mm thick checkered plate
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.

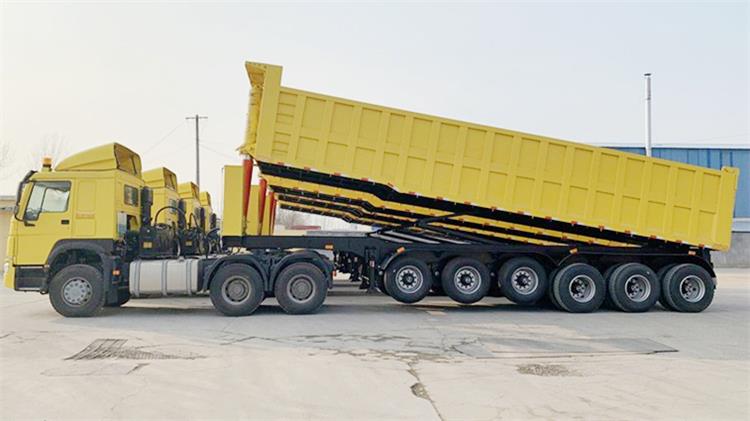

1. The carriage adopts the way of rollover and self-unloading after the rollover, which can effectively improve the transportation efficiency of the loader transporting loose and dispersed goods.
2. The frame and tracks are welded with high-quality manganese plate, and the box body has a dustpan and rectangle with high strength, strong lifeforce, strong rigidity, toughness, strong bearing capacity, and no permanent deformation.
3. Excellent technology: the main parts are processed by advanced equipment the longitudinal beam is fully automatic submerged ac welding andthe wheel shaft and steel spring are assembled by the assembly machine.
4. Our factory has a strict quality inspection department, we will test the tipping system before delivering the tractor tipper trailer to customers so that we can ensure long-term cooperation with our customers with the best quality of the 6 axle 45cbm/cubic tractor tipper trailer.
Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.
