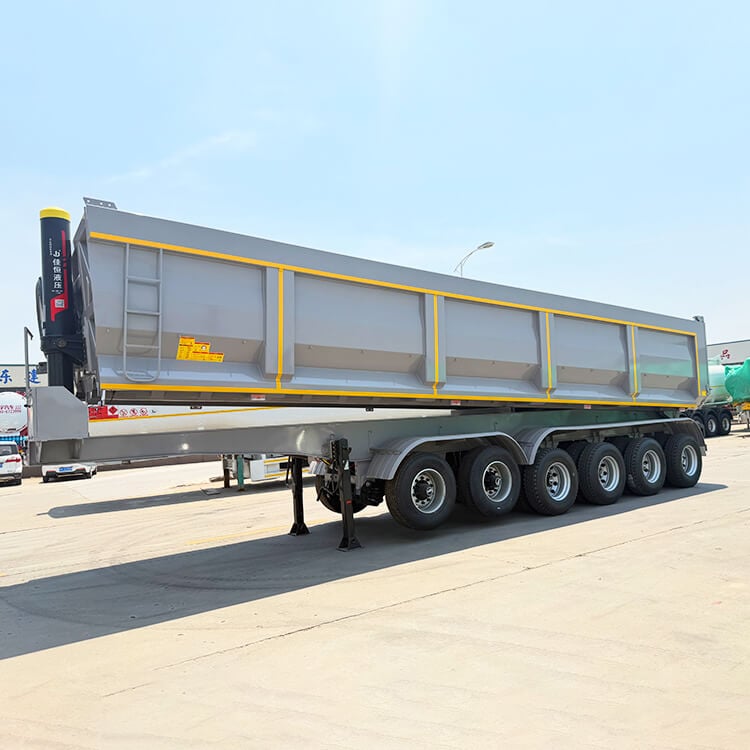

6 Axle Semi Tipper Trailer

Video of 6 Axle Semi Tipper Trailer

Description of 6 Axle Semi Tipper Trailer

The Titan 6 axle semi tipper trailer for sale in Chad is a heavy-duty mining and bulk cargo transport solution built specifically for high loading capacity, superior operational efficiency, and maximized profitability. It ingeniously integrates a chassis architecture featuring a single-tire liftable air suspension for the front two axles and a dual-tire mechanical suspension for the rear four axles. This design strictly complies with stringent weight regulations for legal heavy-tonnage transport while delivering exceptional adaptability to rugged terrains. Whether for high-frequency transport of mining earthwork, bulk coal, or construction aggregates, this tipper trailer yields an outstanding return on investment.

The Titan 6 axle semi tipper trailer for sale in Chad also features a high-strength anti-torsion frame and an efficient hydraulic tipping system. For logistics and mining clients seeking high fleet availability, massive payload capacity, and ultra-low operating costs, this dump semi-trailer stands as the ultimate choice for reducing expenses and boosting efficiency.

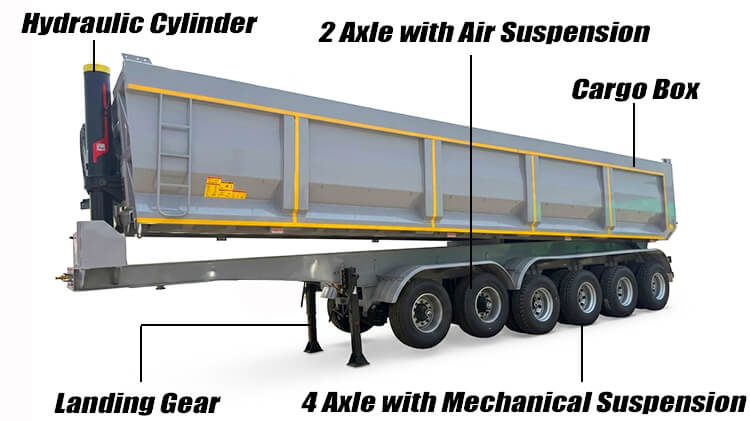

Titan 6 Axle Semi Tipper Trailer for Sale in Chad

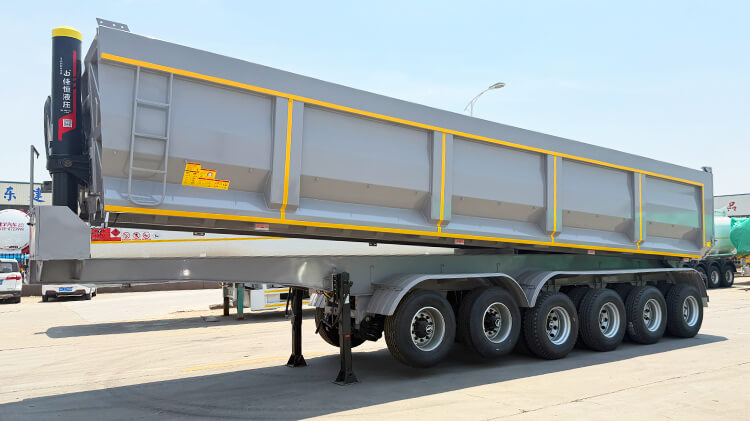

Titan 6 Axle Semi Tipper for Sale in Chad

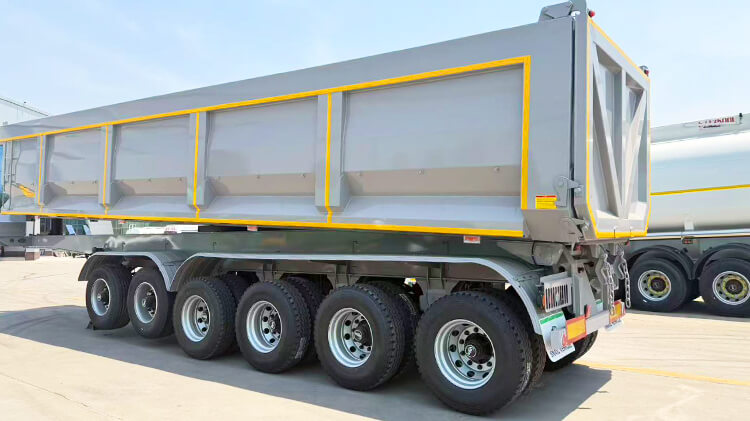

Titan 6 Axle Semi Tipper for Sale in Chad

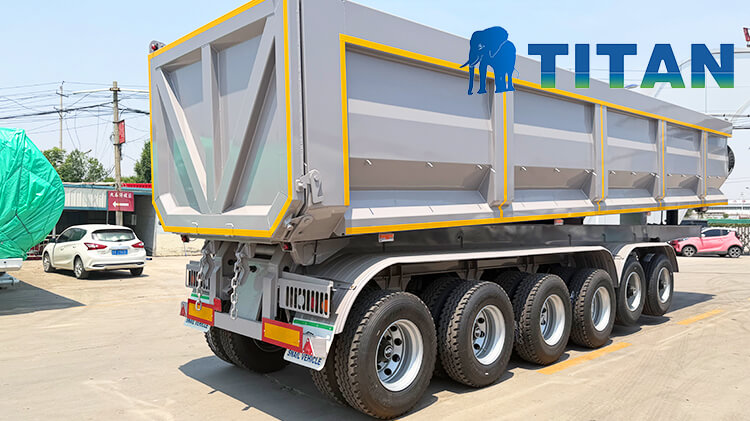

Titan 6 Axle Semi Tipper for Sale in Chad

Specification of 6 Axle Semi Tipper Trailer

Dimension:  11000*2500*4000mm

Volume:  45CBM

Axles:  6 axles

Suspension: Heavy-duty mechanical suspension+air suspension

Tipping system: hydraulic cylinder

Tire:  16 units,315/80R22.5+4units,315/65R22.5

King pin:  90# 50 #

Landing gear: JOST

Brake system: WABCO

Electrical system: 24V, LED lights

Advantages of 6 Axle Semi Tipper Trailer

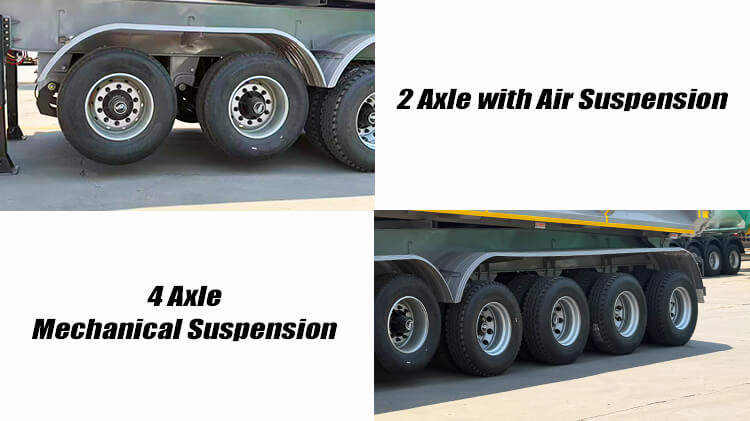

1. The front two axles of this Titan 6 axle tipper semi trailer for sale in Chad feature a single-tire configuration paired with a high-performance air suspension lift system. During empty or light-load return trips, the driver can effortlessly raise the front two axles to lift the tires off the ground, significantly reducing rolling resistance and tire friction. This substantially lowers fuel consumption, extends the service life of the front-axle tires, decreases the turning radius during cornering, and improves overall handling flexibility.

2. The rear four axles of this Titan 6 axle tipper semi trailer for sale in Chad are equipped with dual tires and a reinforced mechanical leaf spring suspension, creating a solid support base for heavy loads. The dual-tire setup greatly increases ground contact area to distribute axle loads evenly. Meanwhile, the heavy-duty mechanical suspension offers extraordinary impact and fatigue resistance, providing stable and dependable support even under harsh mining conditions, muddy environments, or extreme payloads.

3. The chassis design of this Titan 6 axle tipper semi trailer for sale in Chad demonstrates exceptional mechanical engineering. Under full load, the front two-axle air suspension inflates to engage with the road, sharing the massive overall weight alongside the rear four-axle mechanical suspension to meet statutory axle load limits and protect road surfaces. During dumping operations, the air suspension rapidly deflates to smoothly transfer the trailer's center of gravity onto the rigid rear mechanical suspension, ensuring rock-solid stability during material discharge.

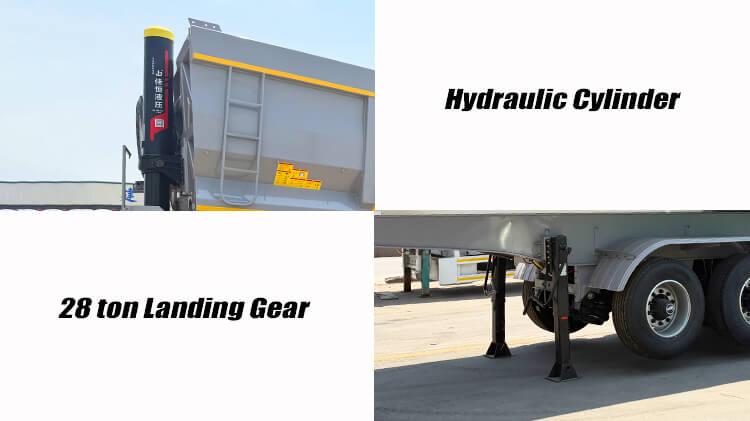

4. The cargo body of this Titan 6 axle tipper semi trailer for sale in Chad is welded in a single pass using high-strength, wear-resistant steel plates, offering outstanding impact and bending resistance against severe strikes from falling heavy ores and large boulders. Matched with a large-bore, heavy-duty front-mounted hydraulic cylinder at the front, the trailer delivers powerful, fast-responding lifting with multi-stage overload protection. Combined with an optimized steep dumping angle, it guarantees rapid, clean, and complete material unloading.

5. The frame main beams of this Titan 6 axle tipper semi trailer for sale in Chad are formed in a single process from large-cross-section, extra-thick high-strength steel, reinforced by a dense crossbeam structure. This offers extreme bending and torsional resistance, completely eliminating frame deformation hazards during heavy-load tipping. Furthermore, the chassis and cargo box undergo thorough shot-blasting and an advanced powder coating and baking process, providing strong coating adhesion, scratch resistance, and excellent anti-rust protection in high-temperature, humid, or corrosive environments.
