6 Axle Extendable New Trailer
6 Axle Extendable New Trailer

6 Axle Extendable New Trailer

61530 USD

6 Axle Extendable New Trailer can be used to transport both wind blades and the tower. This is the kind of trailer that you need if you want to handle the different kinds of loads in your operations.

SKU: 6 Axle Extendable New Trailer
GTIN: 6975766110611
MPN: TITAN9410051
Brand: TITAN

6 Axle Extendable New Trailer Product Description:

6 Axle Extendable New Trailer can be used to transport both wind blades and the tower. This is the kind of trailer that you need if you want to handle the different kinds of loads in your operations. Its design and construction are meant to take care of these needs.Its structure comprises: A Gooseneck, A steering mechanism, An extendable beam, The tail platform.

The goose-neck provides a connecting point of the trailer to the truck. It is designed to lift up and down to meet the different height of the 5th wheel of a truck. When the truck steers, goose-neck can pass the signal, and the trailer starts to steer. The steering system includes a steering function for the rear axles to help trailer get through a curved road due to the 62 m length of the trailer.

6 Axle Extendable New Trailer for Sale in Vietnam

6 Axle Extendable New Trailer for Sale

6 Axle Extendable New Trailer for Sale in Vietnam

6 Axle Extendable New Trailer Price

6 axle extendable new trailer price

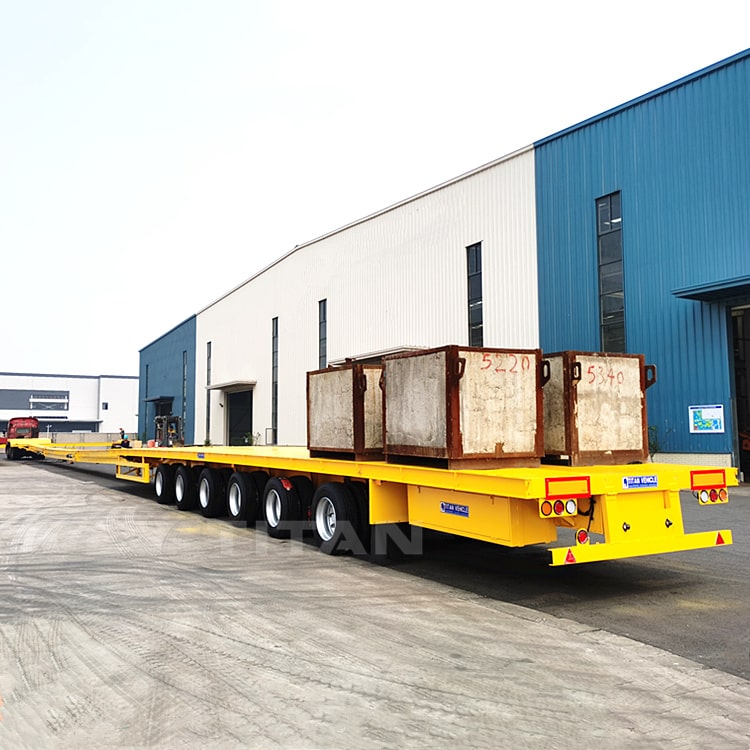

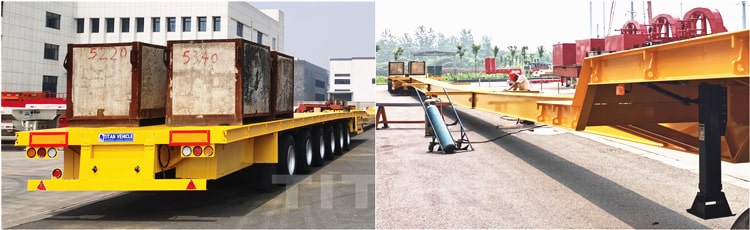

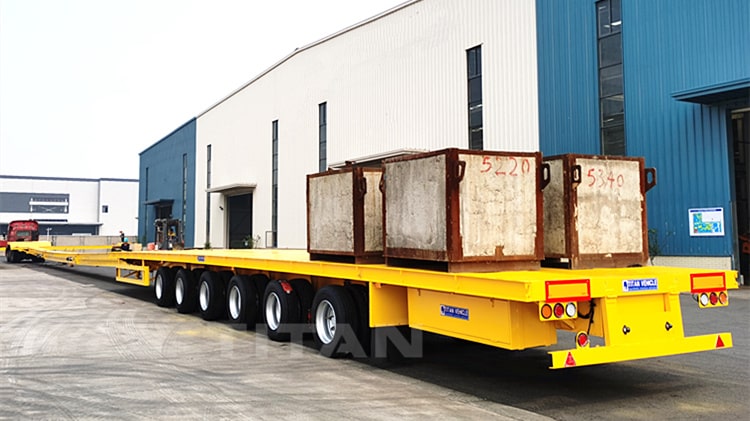

62M Extendable New Trailer



Specification:

Brand: TITAN 62m Extendable Trailer for Windmill Blade Transport

Closed length: 24150mmX3000mmX1650mm

Total length: 62,000mm after extension

Transport: 80m windmill blade

Loading capacity: 90 Ton

Platform thickness: 3 mm

Hydraulic power station: Diesel engine

Axle: 6 axle

Suspension: Hydraulic suspension

Tire: 24 units

Braking system: WABCO emergency valve

Kingpin: 3.5 inch

Landing gear: JOST C200



Advantages:

1. The general extendable transporter of wind turbine blades is a bit similar to the lowbed transporter, but its girder adopts a buckle box type design, and the girder is pulled to adjust the length of the vehicle to adapt to the transportation of wind blades of different lengths.

2. The extendable flatbed semi trailer has flat, concave beam, tire leaking and pull-out structures. The frame is stepped and the longitudinal beam section is I-shaped, which has the characteristics of high rigidity and high strength.

3. The vehicle body is made of high-quality steel, and the main plane of the frame and cargo platform is low, which ensures the stability of transportation and is suitable for carrying various construction machinery, large equipment and steel. It adopts three-axis balance type, two-axis balance type or rigid suspension, with a mass balance block installed between the front and rear leaf springs, which can make the front and rear leaf springs change in equal amounts and balance the forces on the front and rear axles.

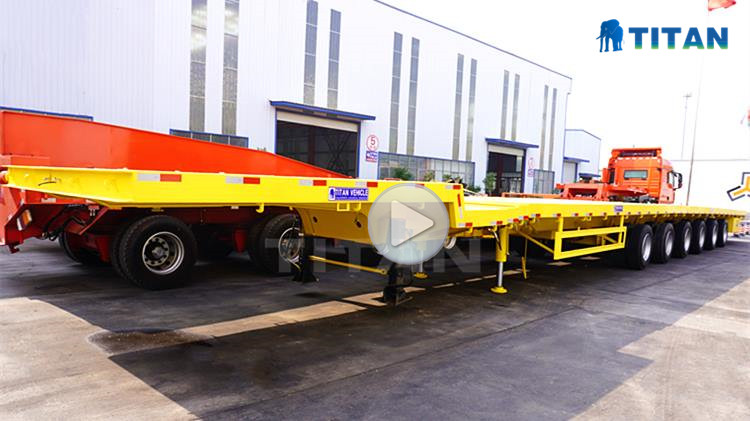

Through this video, you can learn more details about extendable new trailer , 6 axle extendable new trailer price , 6 axle extendable new trailer for sale, etc.

If you want to know more types of wind blade trailers, please click here "Wind Blade Trailer" to watch the video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
