TITAN 62m extendable windmill blade transport trailer uses manual or remote operation, making operation simpler and easier. This also makes the process of loading and unloading goods more concise and convenient, which greatly saves the operator's trouble.
TITAN 62m extendable windmill blade transport trailer telescopic beams meet the transportation needs of goods of different lengths. TITAN's entire 62m extendable flatbed trailer is made of high strength steel with a yield strength of at least 460 MPa, which ensures that the telescopic beam will not be easily bent and deformed. Greatly increases the safety of operation.
The rear of this trailer is in a folding or pulling platform configuration. Users can freely choose the trailer of the length they want.

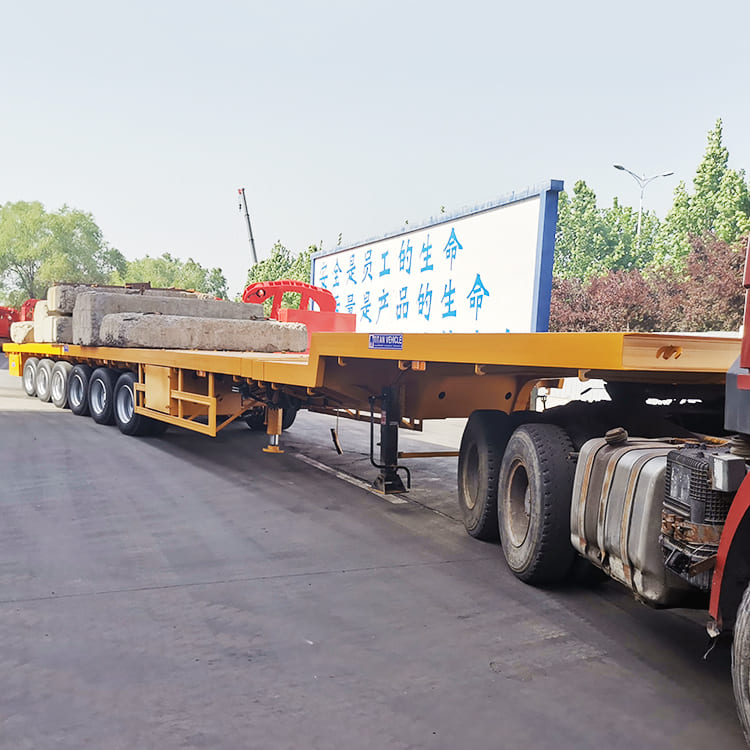

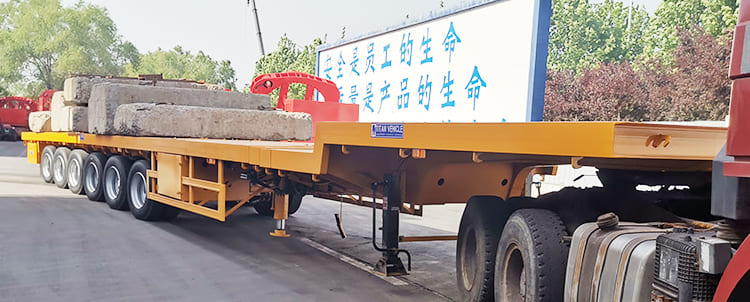

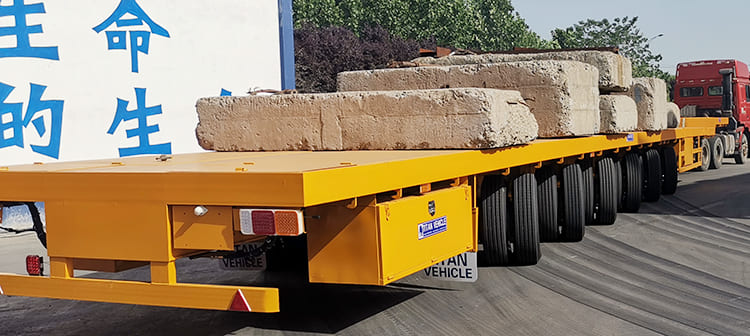

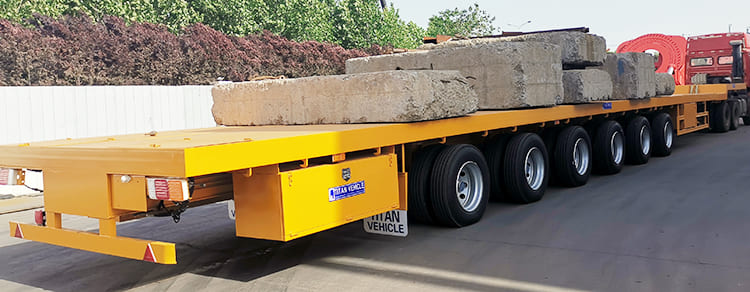

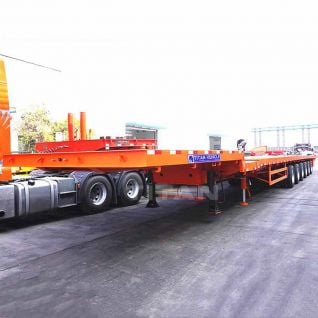

Windmill Blade Transport Trailer | 6 Axle 62M Extendable Flatbed Trailer for Sale
Windmill Blade Transport Trailer | 6 Axle 62M Extendable Flatbed Trailer for Sale
Windmill Blade Transport Trailer | 6 Axle 62M Extendable Flatbed Trailer for Sale
Brand: TITAN 62m Extendable Trailer for Windmill Blade Transport
Closed length: 24150mmX3000mmX1650mm
Total length: 62,000mm after extension
Transport: 80m windmill blade
Loading capacity: 90 Ton
Platform thickness: 3 mm
Hydraulic power station: Diesel engine
Axle: 6 axle
Suspension: Hydraulic suspension
Tire: 24 units
Braking system: WABCO emergency valve
Kingpin: 3.5 inch
Landing gear: JOST C200
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers

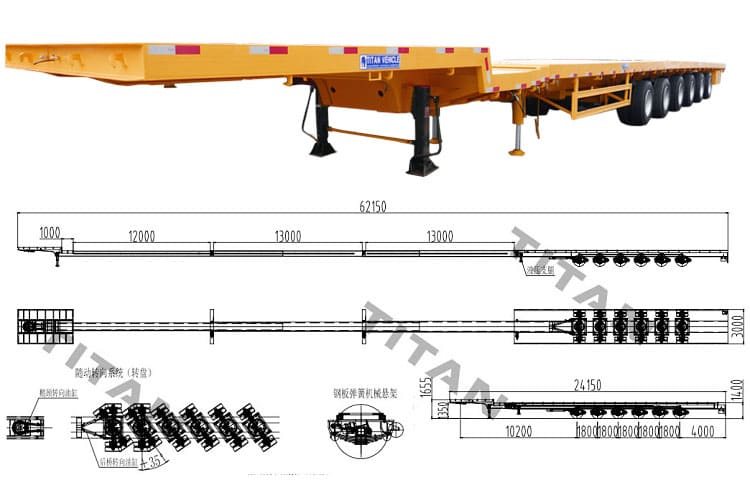

Drawing of 6 Axle 62M Extendable Flatbed Trailer for Sale
1. In order to ensure the stability of transportation, TITAN windmill blade trailer adopts high-quality steel, and the bearing capacity is better, such as construction machinery, large equipment, etc. can be easily loaded. At the same time, three-axis balance type, two-axis balance type or rigid suspension is adopted, and a mass balance block is installed between the front and rear leaf springs, which can make the front and rear leaf springs change in equal amounts and balance the force.
2. The girder of the general fan blade telescopic transport vehicle adopts a buckle box design, and the length of the trailer can be adjusted by pulling the girder (ie, the telescopic beam) to adapt to the transportation of wind blades of different lengths.
3. The extendable windmill blade trailer has flat, concave beam, leaking tire and pull-out structure. The frame is stepped, and the longitudinal beam section is I-shaped, which has the characteristics of high rigidity and high strength.

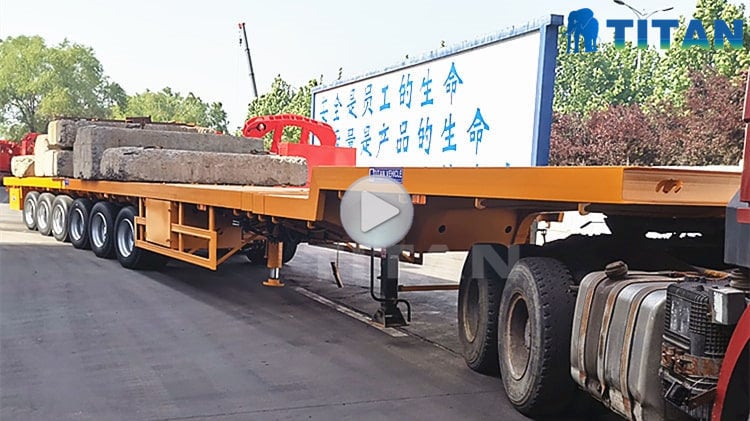

Through this video, you can learn more details about 62m windmill blade transport , 6 axle windmill blade transport trailer , windmill blade trailer for sale, etc.
If you want to know more types of wind blade trailers, please click here "Wind Blade Trailer" to watch the video!
