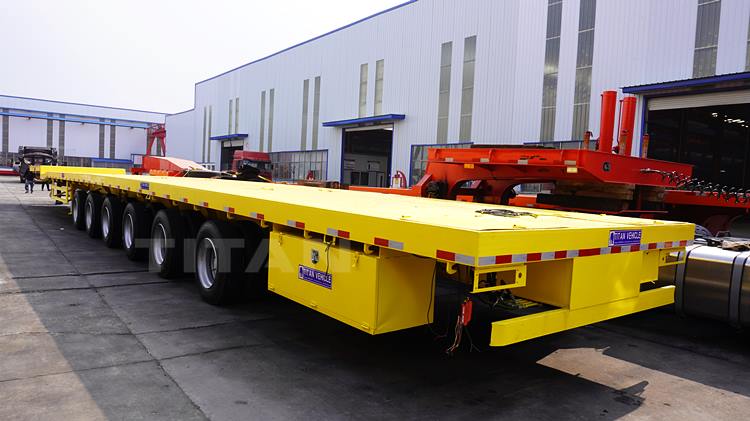

Extendable Trailer for Windmill Projects
Extendable Trailer for Windmill Projects

Extendable Trailer for Windmill Projects

61530 USD

Different Parameters, Different Price. Price Reference Only.



Extendable trailer and telescopic trailer for sale from China TITAN VEHICLE are widely used for long cargo transport, especially for windmill parts logistics, such as wind blade, wind tower section, and turbine.

SKU: Extendable Trailer for Windmill Projects
MPN: TITAN9410005
Brand: TITAN

Extendable Trailer for Windmill Projects Product Description:

Extendable trailer and telescopic trailer for sale from China TITAN VEHICLE are widely used for long cargo transport, especially for windmill parts logistics, such as wind blade, wind tower section, and turbine. The stretchable telescopic beam could be 2 or 3 parts. Total length can reach up to 62 meters. The extendable trailer’s original design is using the mechanical axle, just like a low-bed trailer connect with a telescopic beam to make its length adjustable, so enable the trailer to adapt to different lengths of cargos.

Extendable Trailer for Windmill Projects for Sale in Vietnam

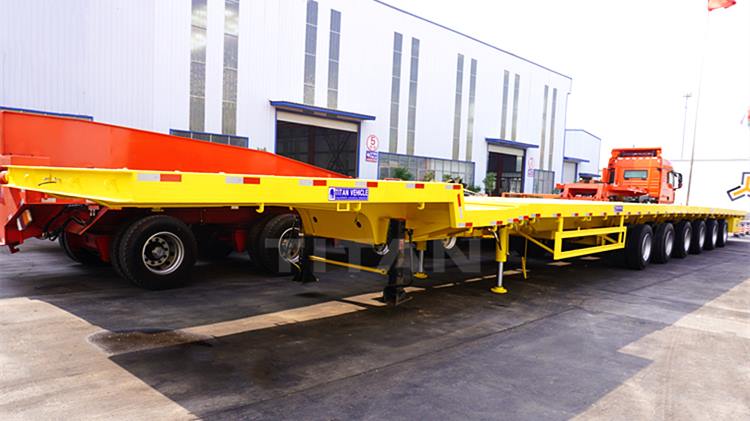

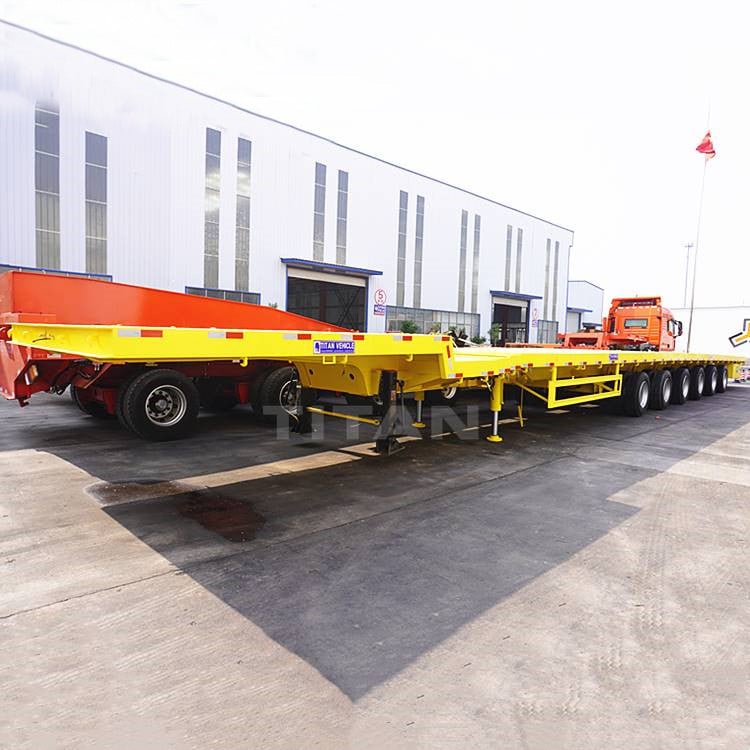

6 Axle 62 Meters Extendable Trailer

Extendable Trailer for Windmill Projects for Sale in Vietnam

Extendable Trailer for Windmill Projects

Extendable Trailer for Windmill Projects for Sale in Vietnam

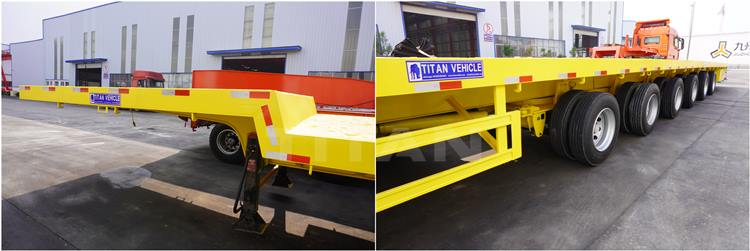

Extendable New Trailers



Specification:

Brand: TITAN 62m Telescopic Trailer for Windmill Blade Transport

Closed length: 24150mmX3000mmX 1650mm

Total length: 62,000mm after extension

Transport: 80m windmill blade

Loading capacity: 90 Ton

Platform thickness: 3 mm

Hydraulic power station: Diesel engine

Axle: 6 axle

Suspension: Hydraulic suspension

Tire: 24 units

Braking system: WABCO emergency valve

Kingpin: 3.5 inch

Landing gear: JOST C200

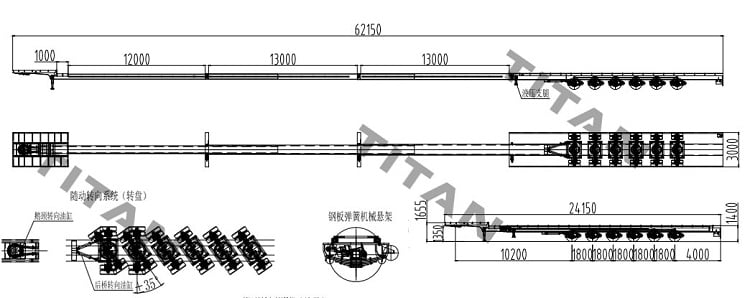

extendable trailer drawing



Advantages:

1. The general extendable transporter of wind turbine blades is a bit similar to the lowbed transporter, but its girder adopts a buckle box type design, and the girder is pulled to adjust the length of the vehicle to adapt to the transportation of wind blades of different lengths.

2. The extendable flatbed semi trailer has flat, concave beam, tire leaking and pull-out structures. The frame is stepped and the longitudinal beam section is I-shaped, which has the characteristics of high rigidity and high strength.

3. The vehicle body is made of high-quality steel, and the main plane of the frame and cargo platform is low, which ensures the stability of transportation and is suitable for carrying various construction machinery, large equipment and steel. It adopts three-axis balance type, two-axis balance type or rigid suspension, with a mass balance block installed between the front and rear leaf springs, which can make the front and rear leaf springs change in equal amounts and balance the forces on the front and rear axles.



Through the video, you can know different types of extendable trailer for windmill projects , 6 axle 62 meters extendable trailer , 2 extendable new trailers, etc.

Please click "TITAN Wind Blade Trailer" to get more videos!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
