Tri Axle Flat Top Trailer

Tri axle flat top trailer for sale:

The main beam of TITAN tri axle flat deck trailer for sale is made of Q345 high strength steel, who has more loading capacity. The TITAN flat deck semi trailers for sale service life will be more than 10 years.

TITAN also adopts advanced submerged arc welding technique,there is no welding interface between middle, bottom and upper plate of main beam.

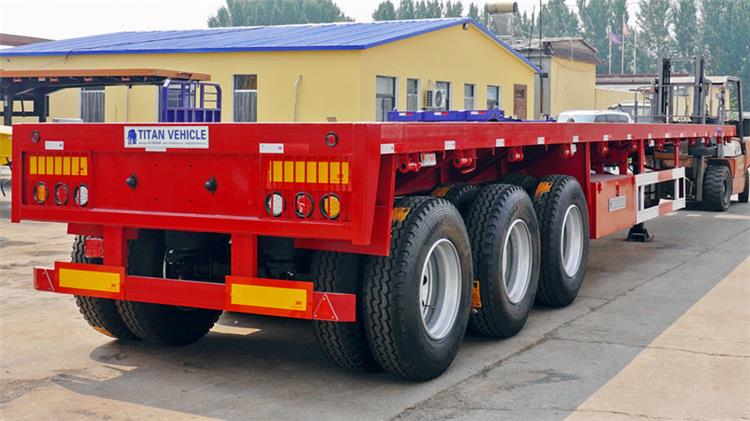

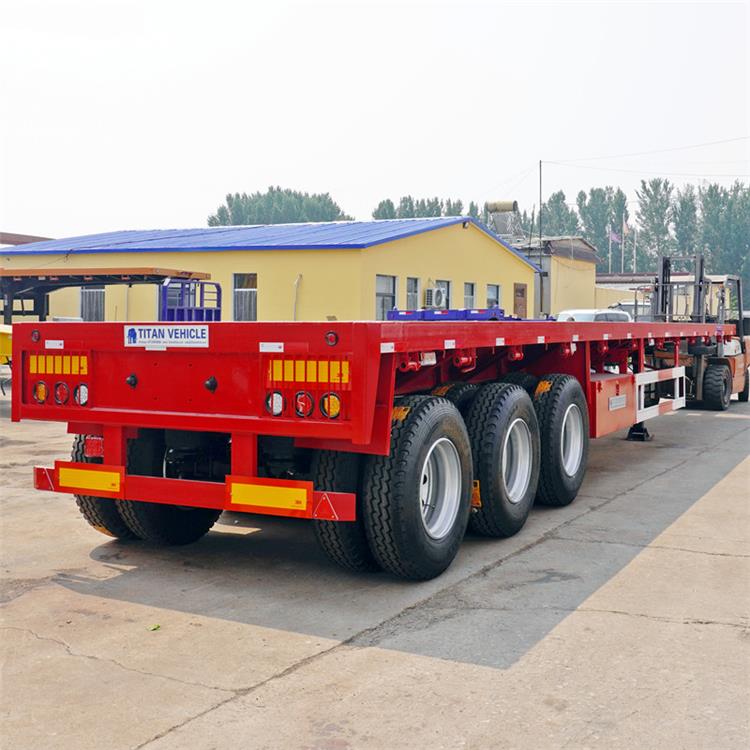

40 ft Tri Axle Flat Deck Top Semi Trailer for Sale Price

40 ft Tri Axle Flat Deck Top Semi Trailer for Sale Price

Details of tri axle semi trailers for sale:

Details of flat top semi trailer | 40 ft trailer price | 40ft trailer for sale

Specification of flat top semi trailer:

Model: Tri axle flat top trailer for sale

Dimension(mm): 12500x2500x1550mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Air suspension(China brand or BPW brand)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package of flat deck tri axle trailer for sale:

When transporting 40 ft trailer, many customers use container transportation, some customers are bulk carriers or ro-ro ships. We will recommend suitable transportation methods to customers according to different situations.

All 40ft trailer for sale will undergo rigorous testing before delivery to ensure the quality. We have professional technicians to operate. In addition, a layer of wax will be sprayed on the tri axle flat top trailer for sale to prevent seawater erosion, and then a layer of rain cloth will be wrapped to prevent moisture so that it is foolproof.

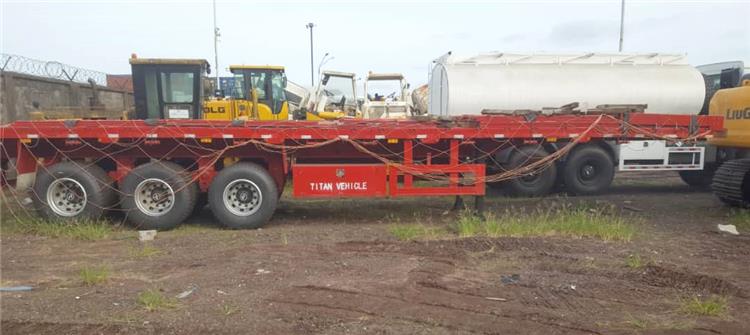

Feedback from our customer:

Video of flatbed top semi trailer:

Through this video, you can see different types of flatbed trailers, As well as the process, testing, packaging and customer feedback, etc.

Please click "TITAN Flatbed Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
