40 ft Shipping Container Trailer
40 ft Shipping Container Trailer

40 ft Shipping Container Trailer

9800 USD

Different Parameters, Different Price. Price Reference Only.



TITAN 40 ft shipping container trailer is very popular in the African market. 3 axles 40 ft shipping container flatbed trailer is the most popular model.

SKU: 40 ft Shipping Container Trailer
GTIN: 06975766110239
MPN: TITAN9403032
Brand: TITAN

Product Description:

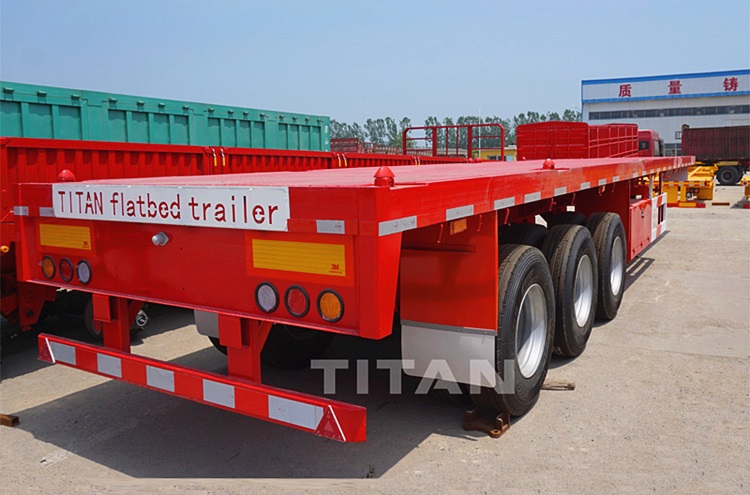

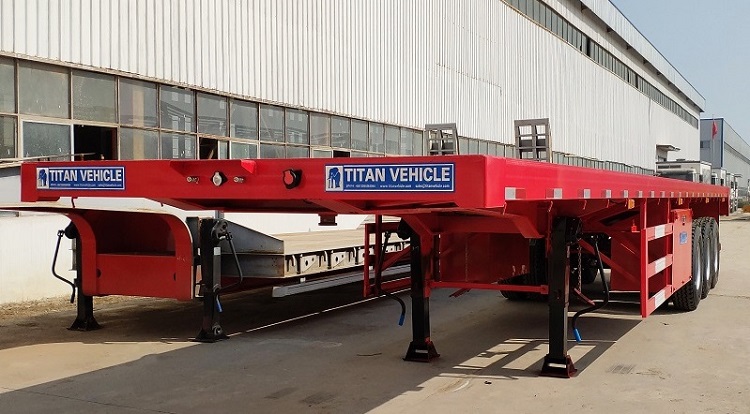

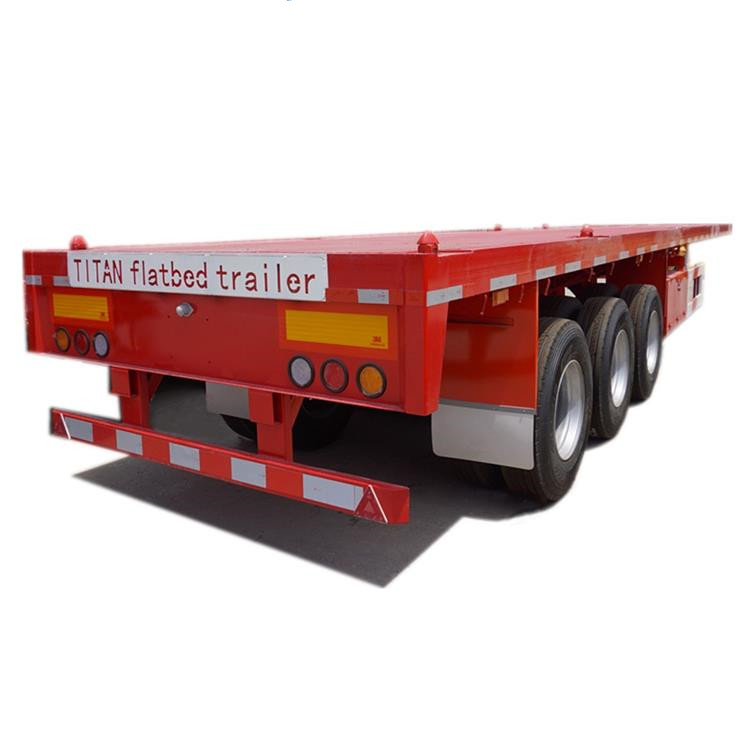

40 ft shipping container flatbed trailer is commonly used to transport various bulk cargoes and containers, 40ft container flatbed semi trailer can transport 1×40ft or 2×20ft container.

Each shipping container trailer comes with its own load rating, size, other systems as would be needed for its use. These specifications are very useful in helping you buy the right 40 ft container trailer for your operations.

Tri Axle Flatbed Semi Trailer for Sale

40 ft Shipping Container Trailer for Sale in Kenya - TITAN Vehicle

Tri Axle Semi Trailer



Specification:

Model: 40 ft shipping container trailer for sale

Dimension(mm): 12500x2500x1550mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats



Video of tri axle trailer for sale:

Through this video, you can see different types of flatbed trailers, As well as the process, testing, packaging and customer feedback, etc.

tri axle trailer for sale



Please click "TITAN Flatbed Trailer" to get detailed video!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
