The 40 ft chassis for sale features a three-axle suspension (mechanical or air suspension) with excellent traction and anti-rollover performance, making it well-suited for container transport on mountain slopes, winding roads, and unpaved surfaces.
40 ft chassis for sale are specifically designed for transshipping standard 40-foot dry vans and 40-foot high cube containers (HQ) between container terminals (such as Kingston Port KCT in Jamaica), container yards, and inland logistics parks.
The single tires (such as the 385/65R22.5 wide base tire) of the 40 ft chassis for sale have lower rolling resistance and are lighter than traditional dual tires, which can significantly reduce overall fuel consumption during long-distance driving of hundreds of kilometers on main roads, making it extremely economical.
40 ft Chassis Trailer for Sale In Jamaica
40 ft Chassis Trailer for Sale In Jamaica
40 ft Chassis Trailer for Sale In Jamaica

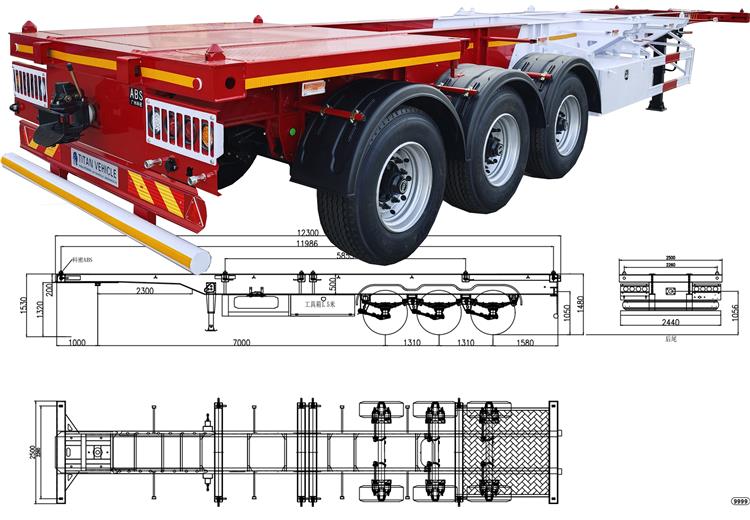

Dimension(mm): 12500x2500x1500mm
Loading capacity(ton): ≤60T
Axles: 3 axle
Tire: 6 units, 385R65R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Twist Locks: 4,8,12 sets (lifting or screw type)

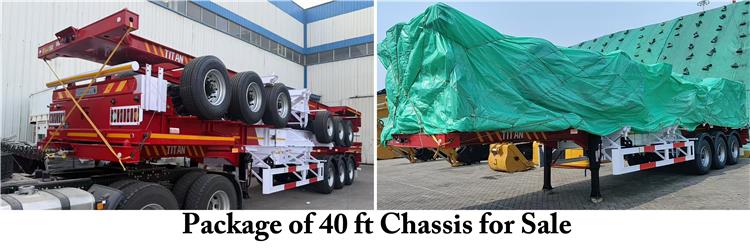

In international shipping, 40-foot chassis for sale are typically transported by bulk carriers or Rolls-Royces, requiring prolonged exposure to the high-salt, high-humidity environment of the sea. Proper tarpaulin packaging and rust and moisture protection measures are crucial for ensuring the chassis trailer for sale is delivered intact to the destination port (such as Kingston, Jamaica).

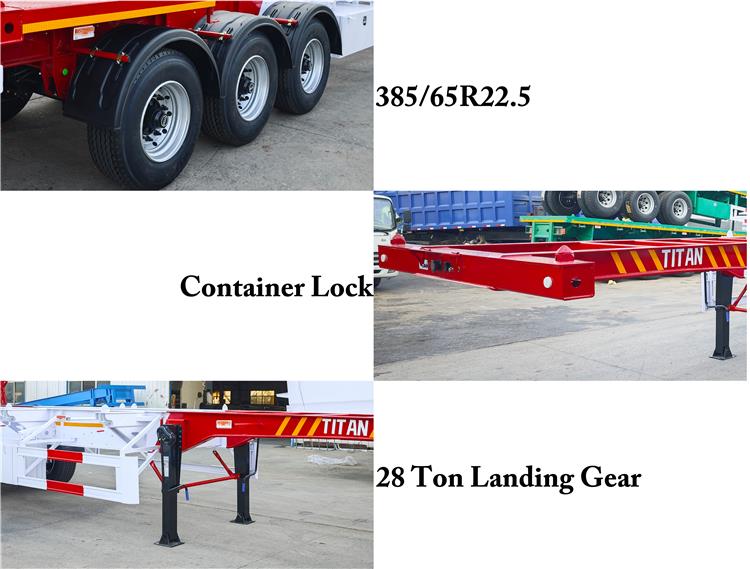

The 40 ft chassis for sale is a container transport vehicle that combines a three-axle loading structure with single/wide-base tires (Super Single Tires, such as 385/65R22.5). The chassis trailer for sale uses six wide tires instead of the traditional twelve tires in a dual-tire configuration, and is widely used in port and highway logistics. The 40 ft chassis for sale is used for loading and transferring standard 40-foot dry cargo containers and 40-foot high cube containers.

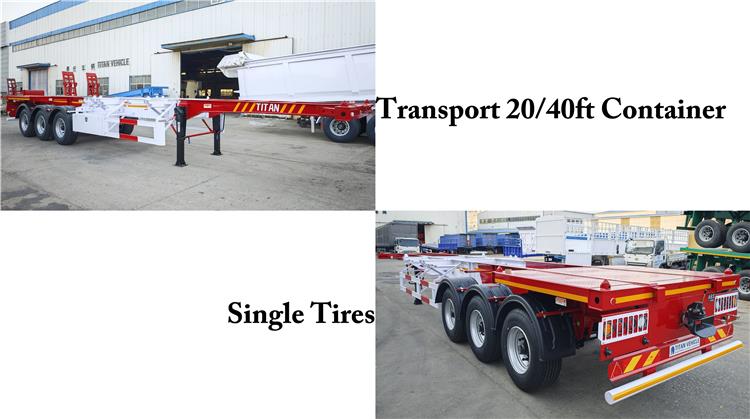

The chassis trailer for sale can also be configured with multiple sets of interlocks to accommodate the transport of a single 40-foot container or two 20-foot containers. The three-axle structure for heavy-duty and large-tonnage cargo transport provides a stronger load-bearing limit (typically designed for a load capacity of 40–60 tons).
The 40 ft chassis for sale is suitable for heavy, high-density containerized cargo such as agricultural products, ores, heavy machinery, and chemical raw materials. Long-haul trunk road transport is suitable for trunk delivery from container terminals and logistics parks to inland warehouses, factories, or inter-regional freight stations.
The chassis trailer for sale uses six wide-base single tires instead of twelve traditional dual tires, significantly reducing the weight of the entire wheel hub, tires, and suspension spare parts (by 200–400 kg). This reduces maintenance and replacement costs.
Halving the number of tires significantly reduces fleet time and spare parts expenditure on tire pressure checks, wear monitoring, tire changes, and brake system maintenance. Optimized axle load distribution and a compliance-compliant tri-axle design effectively distribute heavy loads across three axles, reducing unit pressure on the road surface and avoiding fines or road damage caused by single-axle overloading.

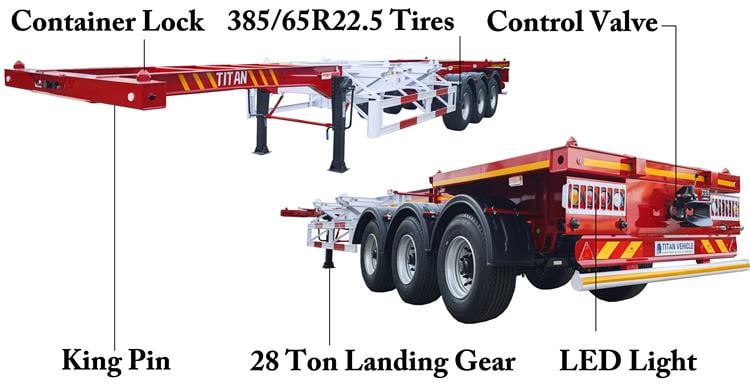

The 40-foot chassis for sale is welded from Q345B or T700 high-strength steel, offering strong bending and torsional resistance. The chassis trailer for sale is equipped with ISO standard cast steel turnlocks to ensure container stability during high-speed driving or cornering.
The chassis trailer for sale is highly adaptable to the local conditions and meets the transportation needs of Kingston Port. Kingston Container Terminal (KCT) has a large throughput and requires a large number of efficient 40-ft chassis for sale to distribute ocean-going containers to inland cities such as Montego Bay and Spanish Town.
The chassis trailer for sale is adapted to the complex terrain and road conditions of Jamaica's inland roads, including hilly and winding sections. Its 3-axle design, combined with heavy-duty mechanical suspension (or air suspension) and high-performance shock absorbers, provides excellent driving stability and passability.
The chassis trailer for sale's main beam surface is sandblasted to remove rust and coated with epoxy zinc-rich primer and UV-resistant polyurethane topcoat. The chassis trailer for sale features sealed LED lights and a 24V corrosion-resistant air circuit system (such as WABCO brake valves), extending its service life in coastal environments.
