Side loader trailers are widely used in the connection of railway, waterway and empty container transportation. In addition to the basic use of loading and unloading containers, they can also use pallets to load and unload and transport various equipment and materials, perform container stacking operations, and cooperate with railway flat cars to deliver containers.

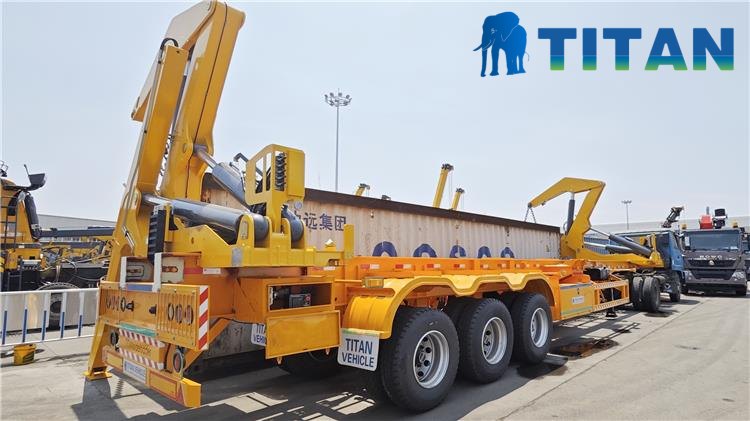

The 40 foot side loader trailer can independently complete the self-loading and unloading of 20-foot and 40-foot containers, as well as vehicle-to-vehicle transfer and other operations.
The maximum lifting weight of the 40 foot side loader trailer is 37 tons, and the maximum operating range is 4 meters. In order to meet the working conditions of customers, many new structures and technologies are adopted.
The 40 foot side loader trailer adopts the patented technology of the sliding container self-loading and unloading transport vehicle, the upper and lower double lifting chain technology, the base bidirectional guide structure, the parallel staggered layout of the sliding cylinder, and the action interlocking technology of the boom and the outrigger, realizing the advanced, leading and reliable product technology.

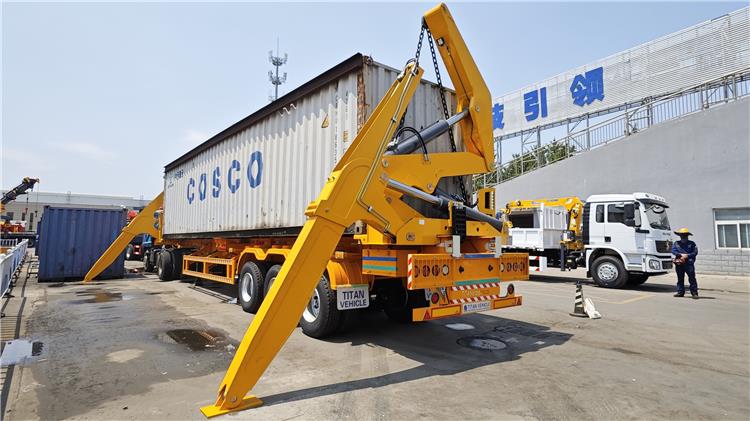

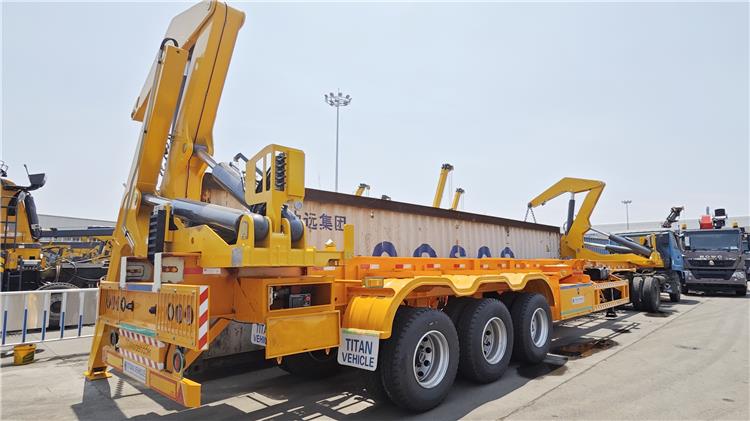

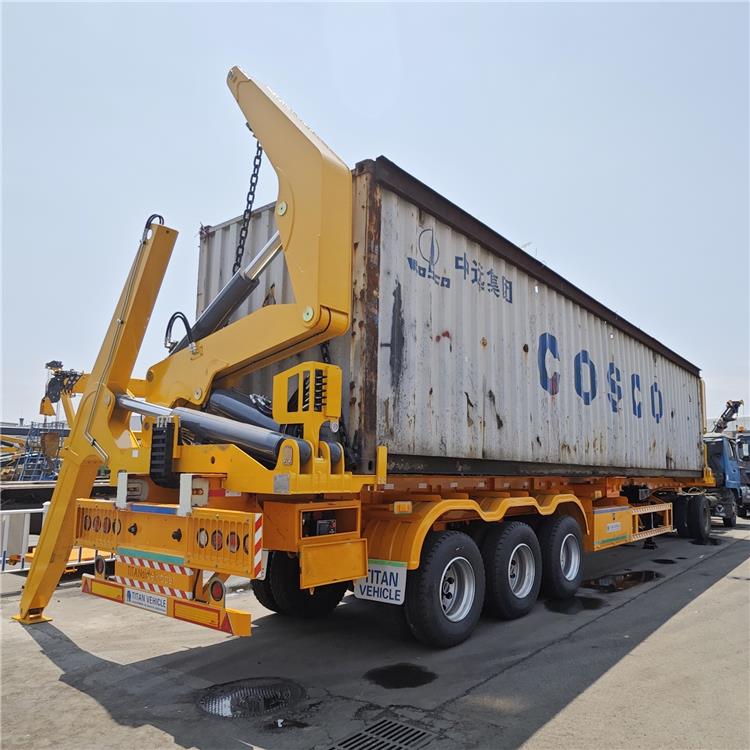

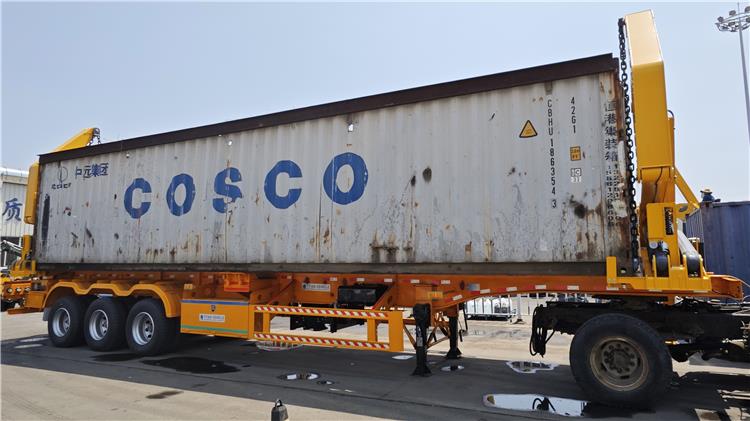

40 foot Side Loader Trailer with 37 Ton Capacity Crane
40 foot Side Loader Trailer with 37 Ton Capacity Crane
40 foot Side Loader Trailer with 37 Ton Capacity Crane
40 foot Side Loader Trailer with 37 Ton Capacity Crane
40 foot Side Loader Trailer with 37 Ton Capacity Crane
40 foot Side Loader Trailer with 37 Ton Capacity Crane
40 foot Side Loader Trailer with 37 Ton Capacity Crane
40 foot Side Loader Trailer with 37 Ton Capacity Crane
40 foot Side Loader Trailer with 37 Ton Capacity Crane

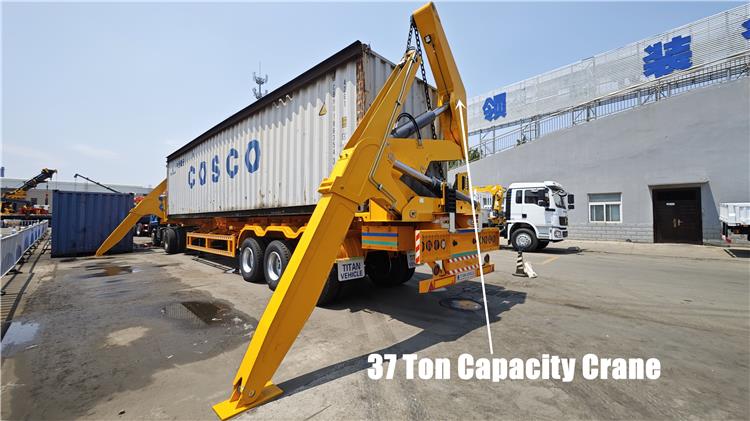

Max. lifting capacity: 37Ton

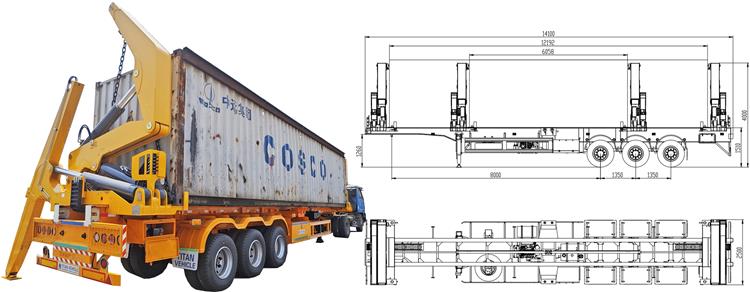

Dimension(L*W*H): 14100*2500*4200mm
Axle: 3 axle* 13 ton (220mm brake pads)

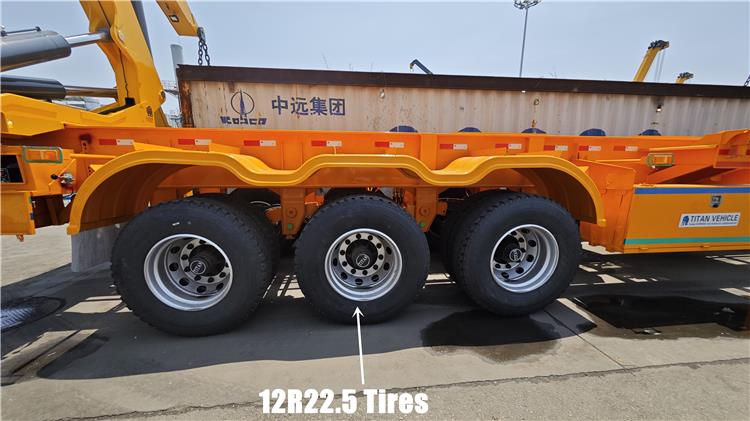

Tire: 12 pcs, 12R22.5

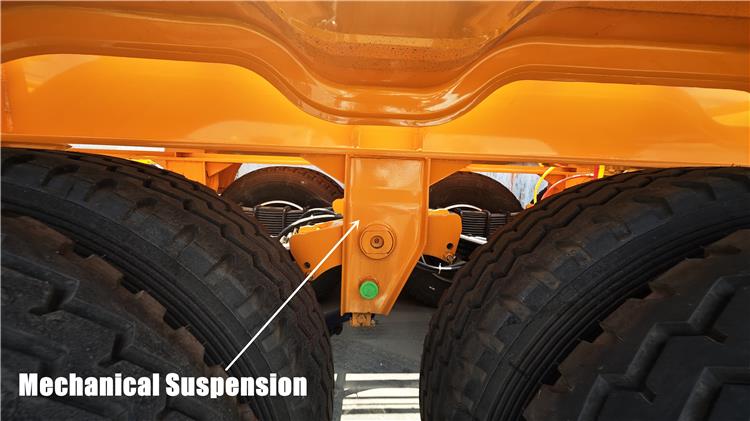

Suspension: Heavy-duty type mechanical spring suspension
Kingpin: 3.5-inch bolted type

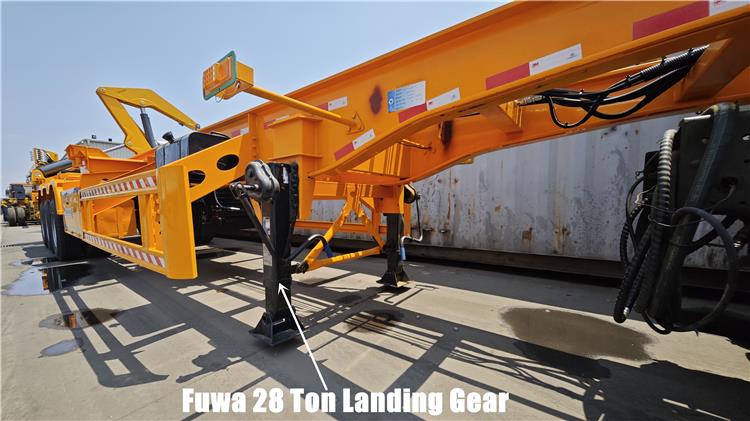

Landing gear: Fuwa
Power source: Power take-off (equipped)
The 40 foot side loader trailer adopts the application of multi-camera image monitoring technology, which provides strong support for safe driving and accurate positioning and parking.
The bidirectional traction technology of the 40 foot side loader trailer bottom vehicle makes the vehicle's U-turn operation in a narrow space more flexible.

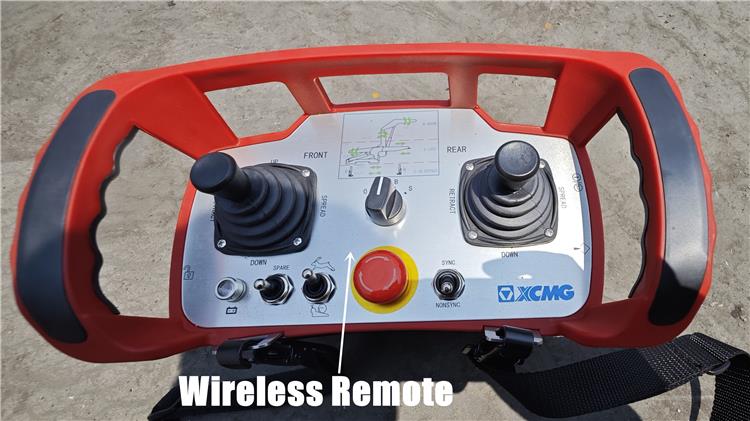

The 40 foot side loader trailer is equipped with a wireless remote control system.
During operation, one side of the outrigger is equipped with an intelligent anti-rollover protection system to monitor the stability of the whole machine in real time. If there is a risk of tilting, it can automatically alarm and effectively lock. The other side of the outrigger is protected by a baffle to prevent the container from entering the dangerous area.
High-quality hydraulic seals, high-level electrical protection, safe and reliable locking mechanism, and practical and safe emergency stop function also increase safety.
