4 Line 8 Axles Extendable Low bed Trailer

4 Line 8 Axles Extendable Low bed Trailer Description:

4 line 8 axles extendable low bed trailer usually are over-length goods which make it difficult to transport them. The extendable telescopic trailer is an economic and convenient way to transport those long blades.

Some huge wind mill’s height near 200m, tower’s length reaches 135m, weighs over 6,000t in total, diameter over 5 meters, our trailer and adapter will be your reliable equipment to move them.

During the wind tower’s transportation, the front and rear trailers are in front and back positions, and the windmill tower will be directly placed on the floating deck of the front trailer module and rear trailer module. The front trailer module is driving by the tractor in front, and the posterior module is towing by the friction generated by the dead weight of the wind power tower.

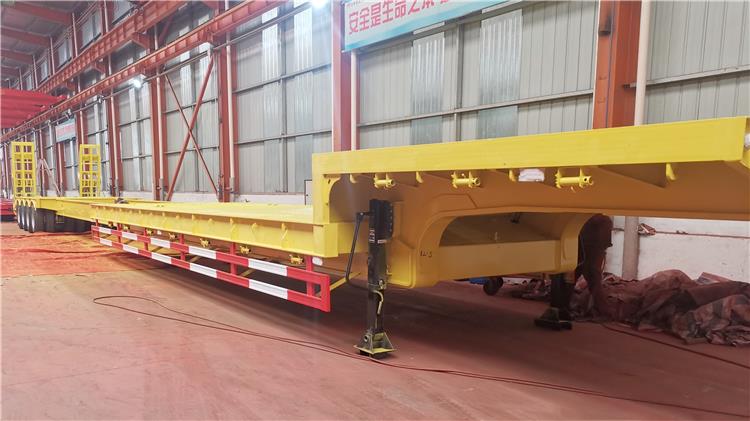

4 Line 8 Axles Extendable Low bed Trailer | Extendable Drop Deck Trailers for Sale Near Me

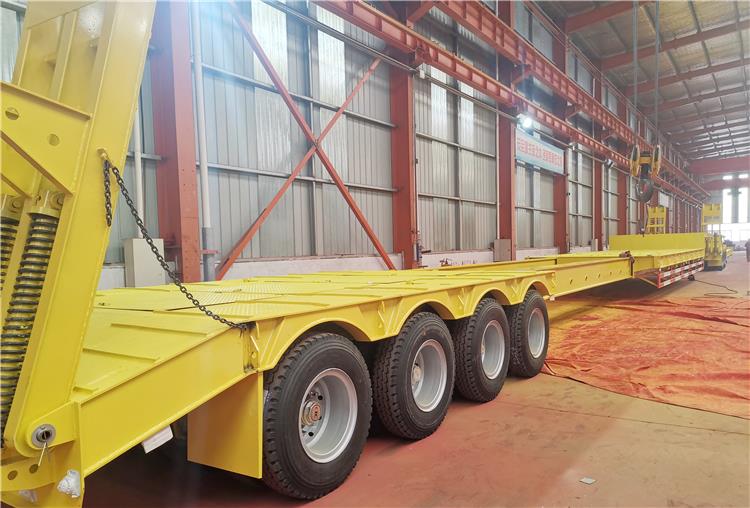

4 Line 8 Axles Extendable Low bed Trailer | Extendable Drop Deck Trailers for Sale Near Me

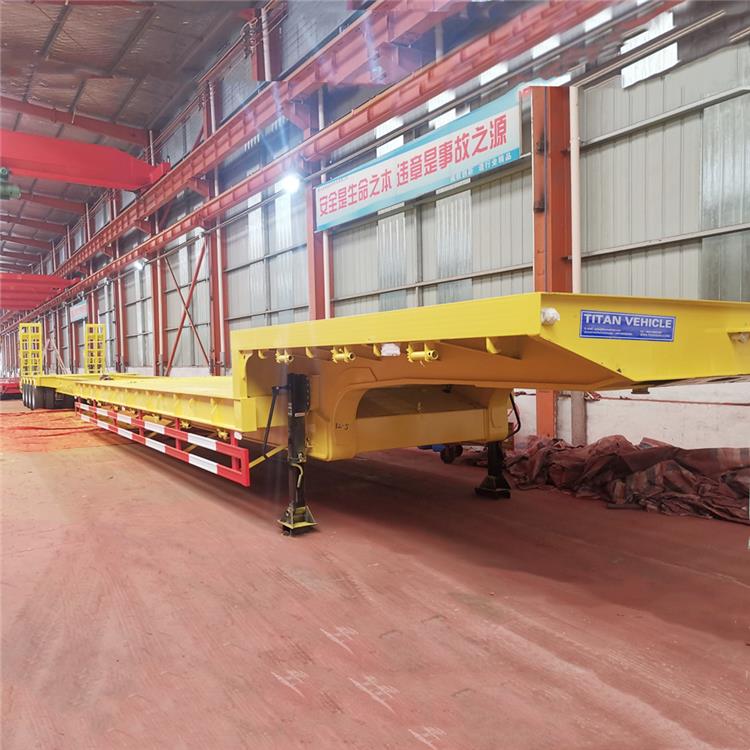

4 Line 8 Axles Extendable Low bed Trailer | Extendable Drop Deck Trailers for Sale Near Me

4 Line 8 Axles Extendable Low bed Trailer Specification：

Dimension(L*W*H): 34180mm X 3500mm X 1714mm ( closed state)

Brand: TITAN 100 ton Extendable low bed trailer

Dimension: Customized

Loading Capacity: 100 Ton

Axle: 4 line 8 axles

Tire: 32 units

Suspension: Heavy duty Rigid Suspension

Landing Gear: JOST brand or Chinese brand 28 Tons

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded type)

Brake Chamber: WABCO (brake system)

Accessories: 1 tool box, 2 tire carrier, LED light

Extendable Lowbed Trailer details display video

Please click "TITAN Wind Blade Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
