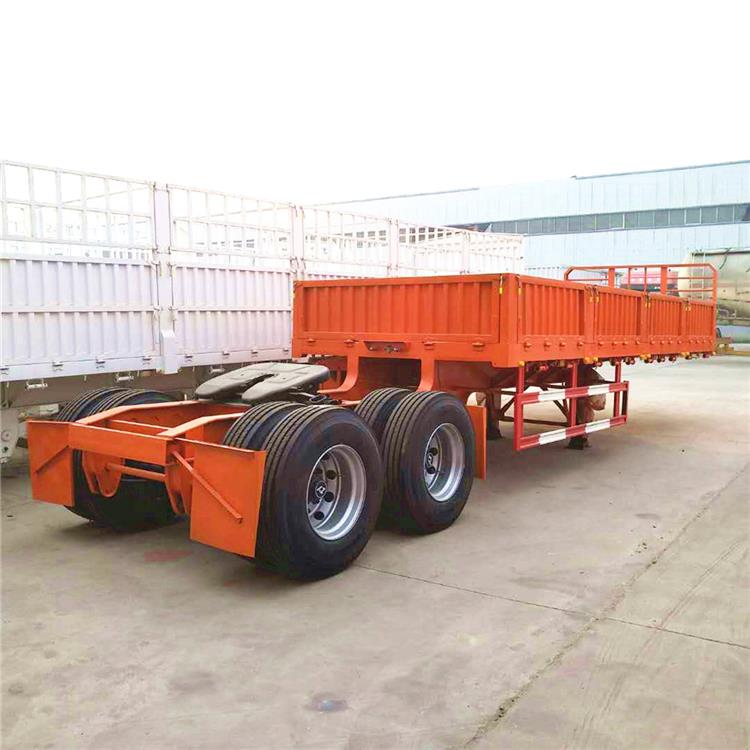

Interlink Drop Side Trailer

Product Description：

Interlink Drop Side Trailers are used to transport many types of load and examples include tanks for flat-beds and curtain-siders for deck-loads, bulkers for aggregates and wood residuals, vans for dry goods, logging trailers for forestry work and cattle liners for livestock.

According your needs, wo can choose BPW axle or FUWA axle,air suspension or leaf spring suspension. We adopt 6 big double air chamber. According to your needs,we can choose 4,8,or 12 container twist locks.

4 Axle Interlink Drop Side Trailer for Sale - TITAN Vehicle

4 Axle Interlink Drop Side Trailer for Sale - TITAN Vehicle

Specification：

Model: Interlink Drop Side Trailer

Overall dimension: 10500*2500*1550mm

Loading capacity(ton): ≤60T

Axles: 4 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 16 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
