4 Axle Dropside Trailer
4 Axle Dropside Trailer

4 Axle Dropside Trailer

10000 USD

Different Parameters, Different Price. Price Reference Only.



4 axle dropside trailer has a sidewall structure design. Customizable side wall height.

SKU: 4 Axle Dropside Trailer
MPN: TITAN9404028
Brand: TITAN

Product Description:

4 axle dropside trailer was popular by logistics companies as its multipurpose application.It use to load a wide range of products and materials, like sand, bags, poultry etc. Also the some bulk cargo, very widely used in the transportation industry.

TITAN Vehicle adopts high strength steel material to manufacture the 3 axle side wall trailer, it can make the trailer have a higher loading capacity and a longer service life. And trailers floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff. The side wall flatbed trailer can be use to load the containers after adopt the contianer locks for it.

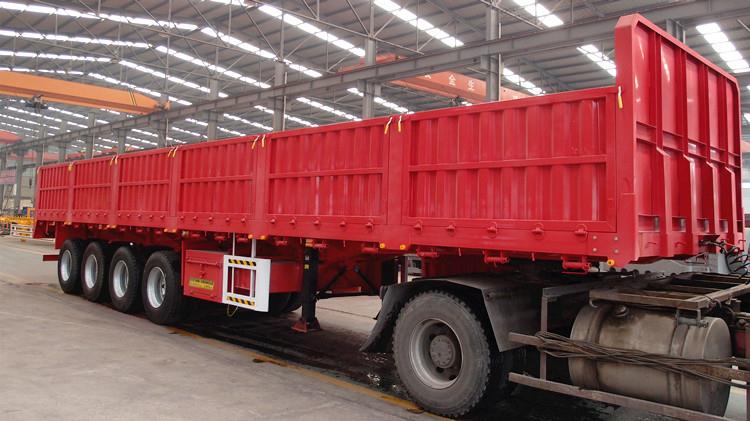

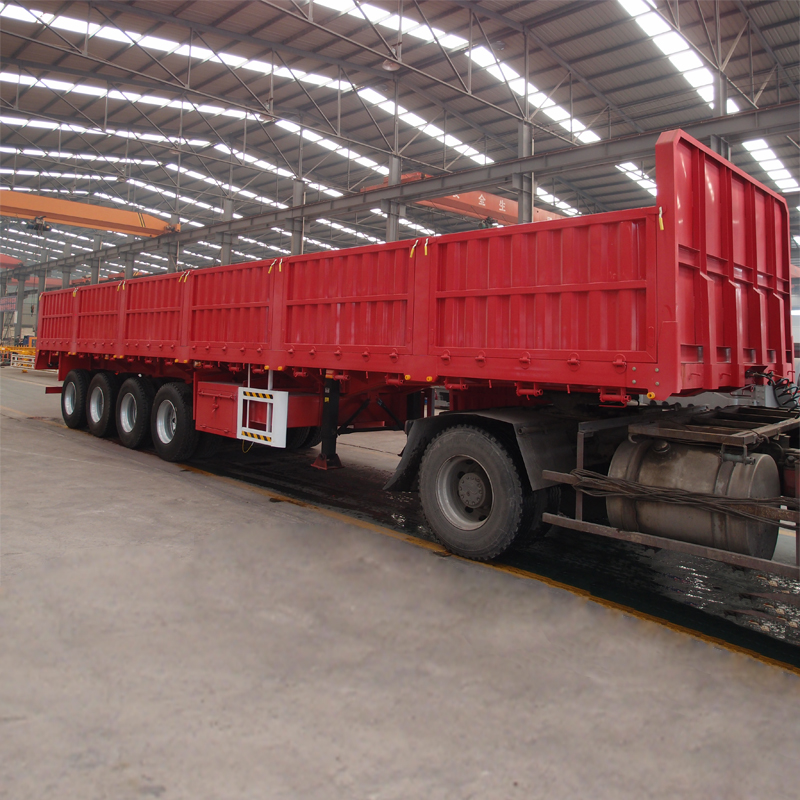

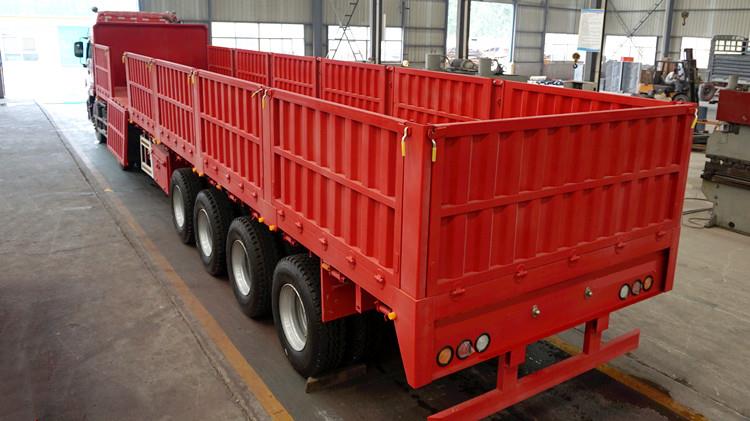

4 Axle Dropside Trailer for Sale - TITAN Vehicle

4 Axle Dropside Trailer for Sale in Guyana - TITAN Vehicle

4 Axle Dropside Trailer for Sale - TITAN Vehicle

4 Axle Dropside Trailer for Sale in Guyana - TITAN Vehicle

4 Axle Dropside Trailer for Sale - TITAN Vehicle



Specifications:

Tare Weight: About 7.8T

Dimension(mm): 13000x2500x2750mm

Trailer Sides: 1200mm

Loading capacity(ton): ≤60T

Axles: 4 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 16 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical and airbag suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Bottom Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats



Advantages:

1. TITAN Vehicle adopts high strength steel material to manufacture the side wall semi trailer, it can make the sidewall trailer have a higher loading capacity and a longer service life.

2. TITAN Vehicle uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.

3. Hight quality side wall, make sure the stable and safety of the loads.

4. Durable mechanical widened spring suspension, make sure the stable and safety. Also we can offer you the air bag suspensions, The airbag suspension can provide a good shock absorption effect for the vehicle and more fuel-efficient.

5. We use famous German WABCO braking valve will definitely shorten the Braking Distance, to make the safety of the trailers and the drivers.



Welcome to leave your inquiry!

We will provide quotation and more details, drawings, pictures, videos for you!
