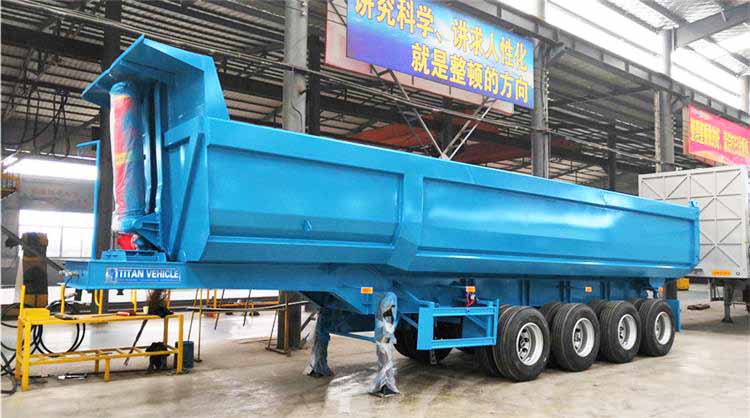

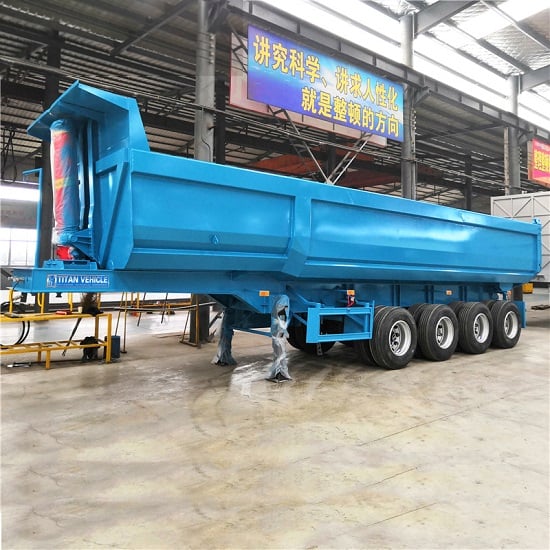

4 Axle 80 Ton End Dump Trailer
4 Axle 80 Ton End Dump Trailer

4 Axle 80 Ton End Dump Trailer

17500 USD

Different Parameters, Different Price. Price Reference Only.



4 Axle 80 Ton End Dump Trailer is very efficient at transporting and unloading coals and other loose materials in bulk, 4 Axle 80 Ton End Dump Trailer can design the tipper trailer according to customer requirements.

SKU: 4 Axle 80 Ton End Dump Trailer
GTIN: 6975766111298
MPN: TITAN9407061
Brand: TITAN

Product description:

4 Axle 80 Ton End Dump Trailer is very efficient at transporting and unloading coals. Limestone, sand, and other loose materials in bulk. 40T Tipper Trailer Manufacturers can design the tipper trailer according to customer specific requirements.

4 Axle 80 Ton End Dump Trailer cylinders is available to allow the trailer to carry more loads. Customers also can choose either left - or right -or side dumping configuration.

4 Axle 80 Ton End Dump Trailer for Sale In Senegal Dakar

4 Axle 80 Ton End Dump Trailer for Sale In Senegal Dakar

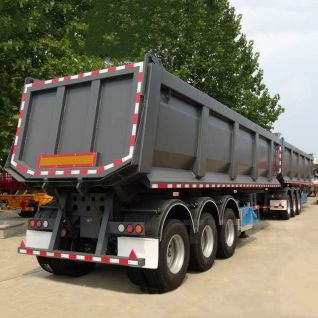

4 Axle End Dump Truck Trailer for Sale

4 Axle End Dump Truck Trailer for Sale



Specifications:

Dimension: 8500mmx2500mm x3950mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Sidewall thickness: 4mm

Total volume(m³): 25m³

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set



Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.





Please click " TITAN Tipper Semi Trailer" to get detailed videos!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!

Review

Simpson - 2021-06-21T13:06:15+0800
So far this dump trailer has worked great. I like it, I have used it a couple of times and it has done everything that I needed it to do.
