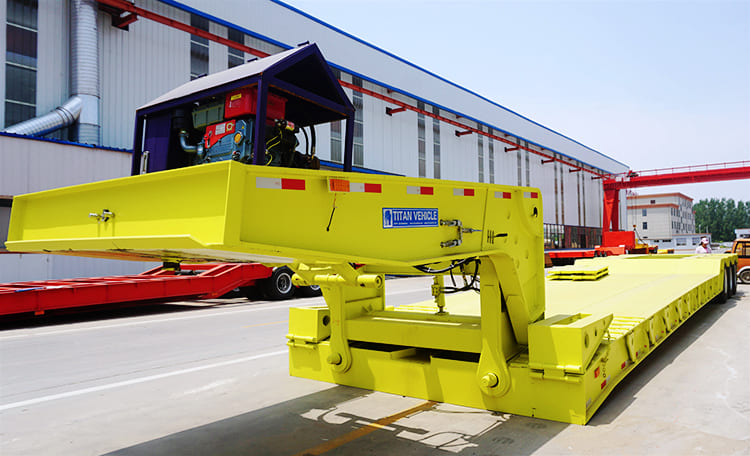

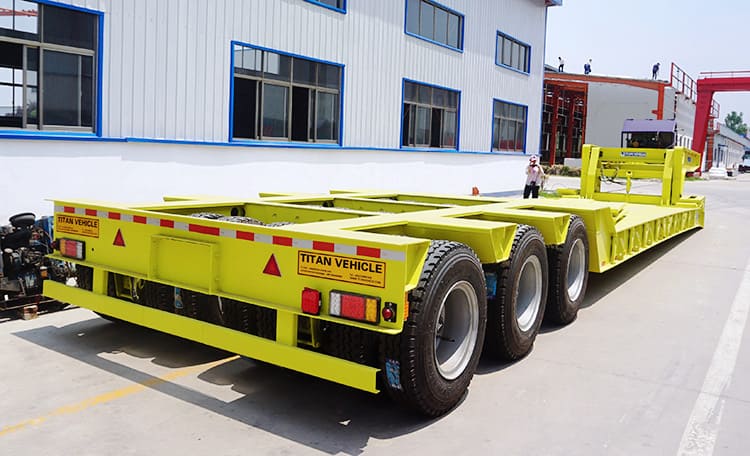

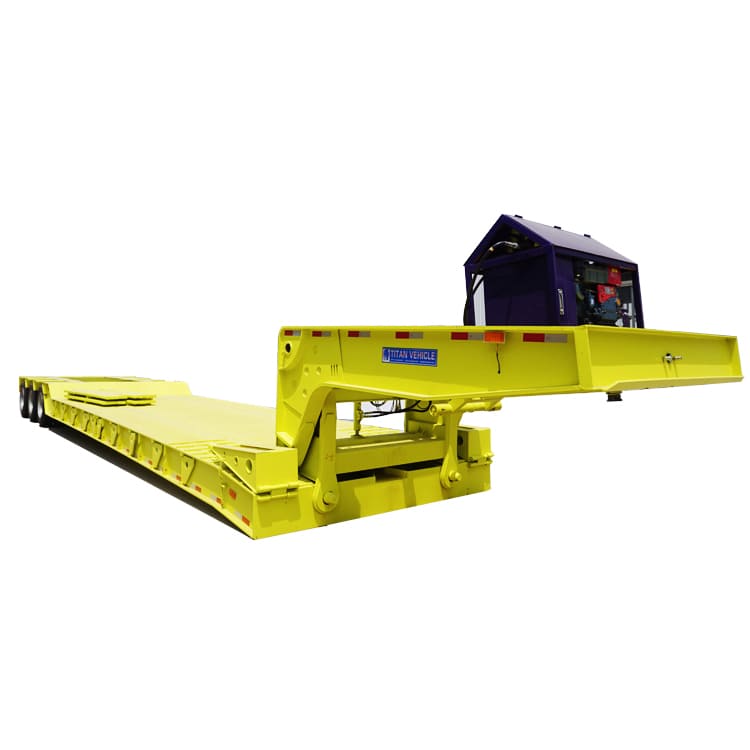

3 Lines 6 Axles 130T Removable Gooseneck Trailer Removable Gooseneck Trailer is used to transport excavators and construction equipment,and large machinery transport.We can produce 60/80/100/120 tons 2/3/4 axle gooseneck trailers.
The main beam of Titan 3 Lines 6 Axles 130T Removable Gooseneck Trailer is made of HG60 high strength structural steel. HG60 steel has a yield strength of ≥620Mpa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times than the trailer made of Q345 steel.
The side beam adopts "H" shape design and is welded with HG 60 steel and it is designed H shape with a height of 300mm, width of 140mm and thickness of 8mm. Its bearing capacity is twice that of other steel, and it will not deform after ten years of use.
3 Lines 6 Axles 130T Removable Gooseneck Trailer for Sale
3 Lines 6 Axles 130T Removable Gooseneck Trailer for Sale
Overall dimension：17000mm * 3000mm *2500mm
Loading capacity(T): 50-150T
Axle: 3 line 6 axle
Tire: 24 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
1. The lower working platform height for the transport of high and voluminous loads.
2. TITAN lowboy trailer is with high tensile structure steel with tensile and durable construction.
3. Main beam adopts submerged arc welding technology, improve the loading capacity and meet load requirements on bad road condition.
4. The loading ramps are made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.
5. The suspension ensure its have high loading capacity, and increase its capacity to twisting forces, shock, bump.
6. World famous brand spare part, ensure high quality and save costs.
Through this video, you can learn about different types of lowboy semi trailers, as well as the process, testing, packaging and customer feedback, etc.
