3 Line 6 Axle Wind Tower Adapter Trailer

Product Description:

3 lines 6 axles Wind Tower Adapter Trailer, transporting large blades of model 121-156, length 59.5-76 meters, maximum 80 meters, weight within 13-23.5 tons, the center of gravity within 23.5 meters.

Wind Tower Adapter Trailer can move the latest wind turbine blades in such a way that they can be transported safely and efficiently in wooded or built-up areas, in the mountainous areas in narrow streets. Rotor blades can be picked up, raised up to an angle of almost 60°, swiveled and rotated by 360° around their own axis using this adapter, which is mounted on a self-propelled vehicle or between modular axle lines.

Wind Tower Adapter Trailer mainly includes wind blades, nacelles, hubs and towers, and each component is an over-limit item for ordinary road transportation, which requires professional wind turbine blade transport trailer for transportation and assemble a wind turbine. So wind turbine transportation companies need it.

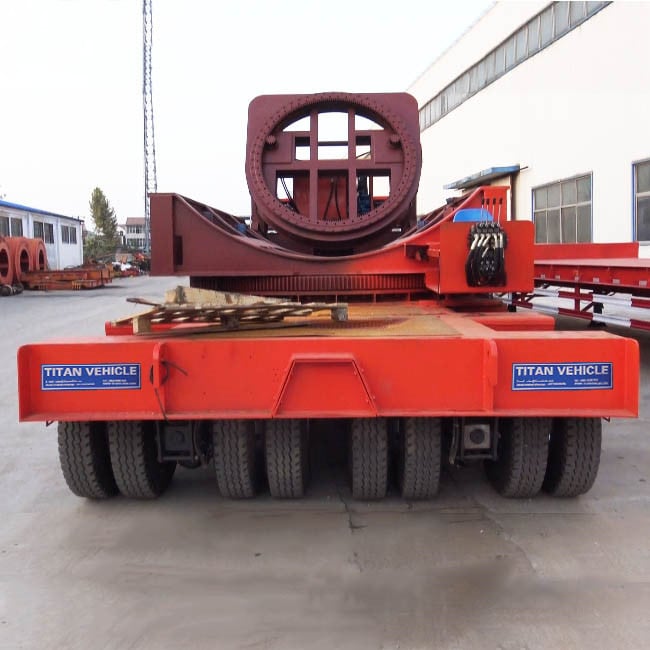

3 Line 6 Axle Wind Tower Adapter Trailer

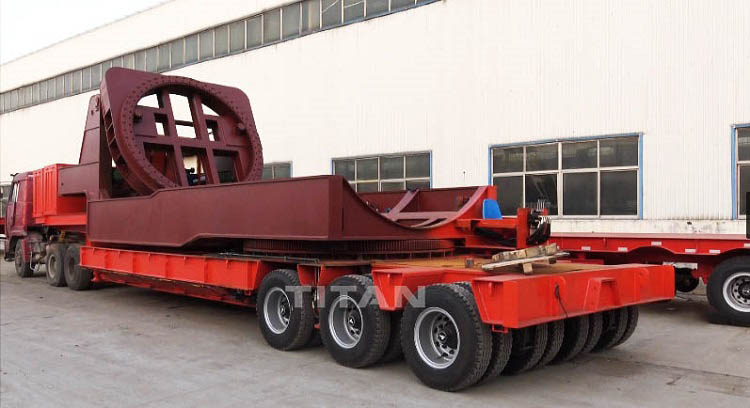

wind turbine blade transport

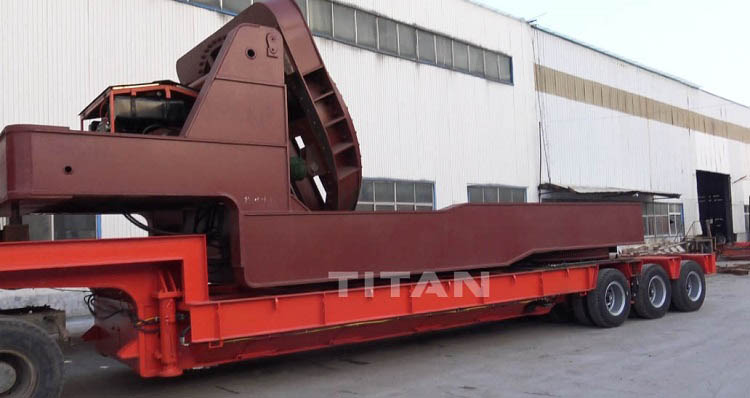

Wind Tower Adapter Trailer for Sale

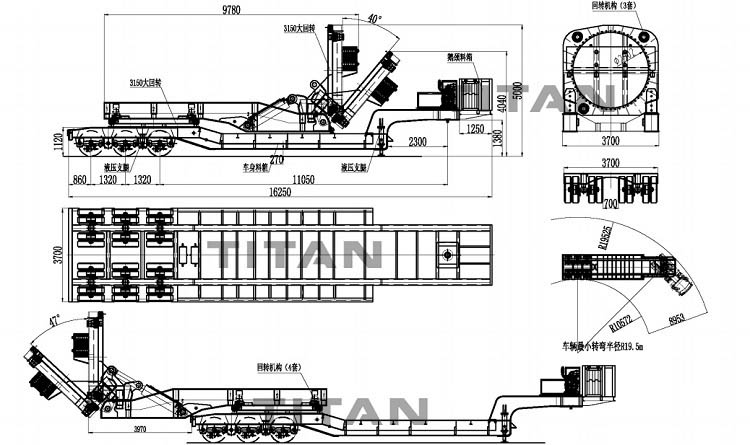

3 Line 6 Axle Wind Tower Adapter Trailer drawing

Specification:

Brand: TITAN 3 Line 6 Axle Wind Tower Adapter Trailer

Dimension: 16250mm*3700mm*5000mm

Transport: 80m, 121-156 model windmill blades

Loading capacity: 23.5 Tons

Axle: 3 lines 6 axles

Max rotation angle: 360°

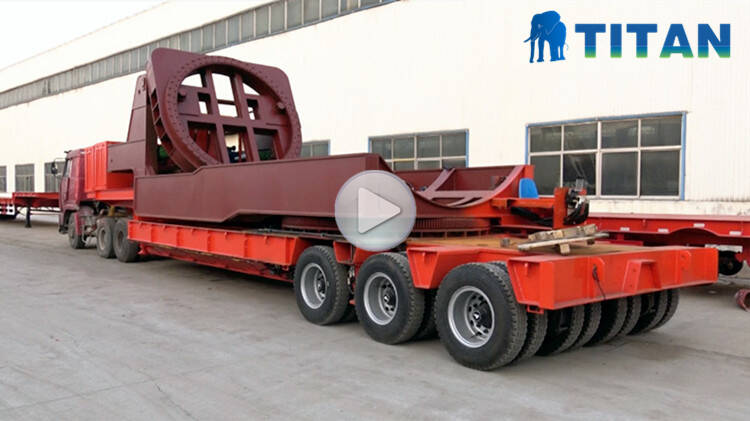

3 Line 6 Axle Wind Tower Adapter Trailer details display video

Please click "TITAN Wind Blade Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
