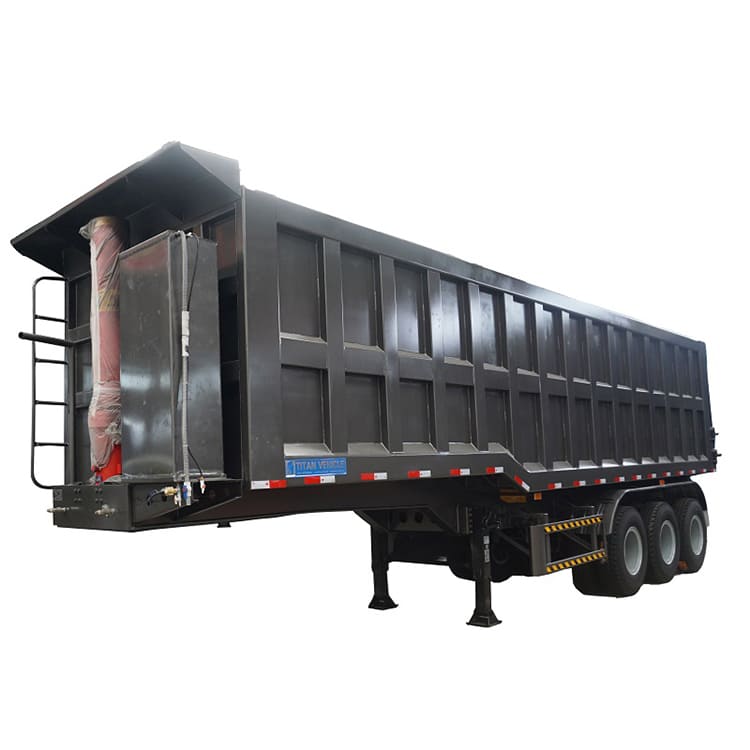

3 Axle Tipper Trailer

3 Axle Tipper Trailer Description:

TITAN adopts double-plate main beam for 3 axle tipper trailer; for 3 axle tipper trailer, the main beam is designed with double plates, which have stronger carrying capacity; it is not easy to damage. The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

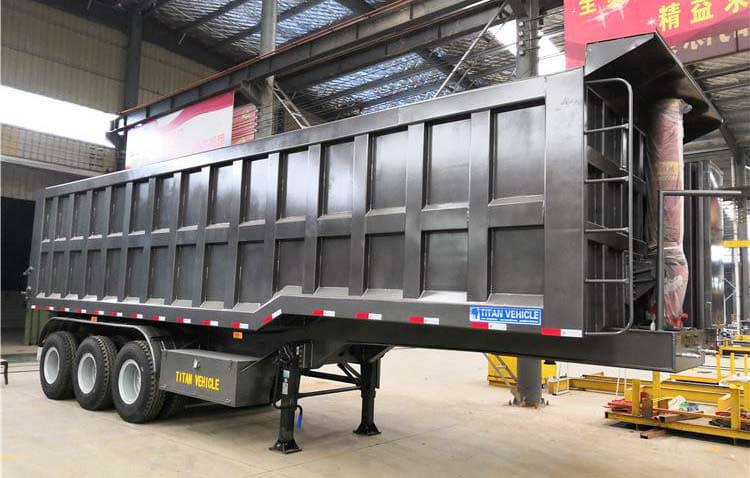

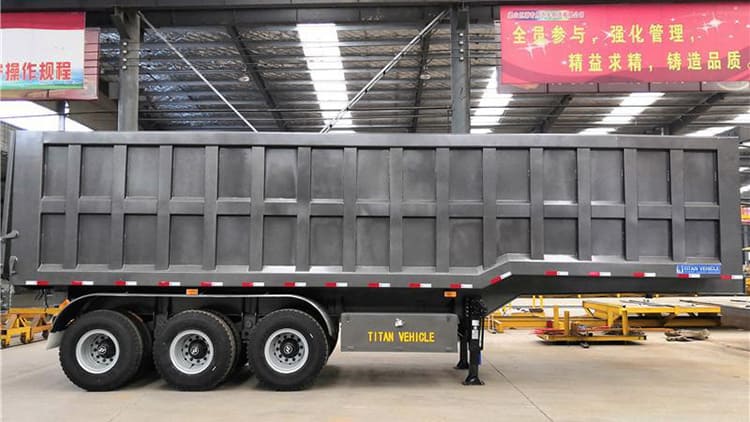

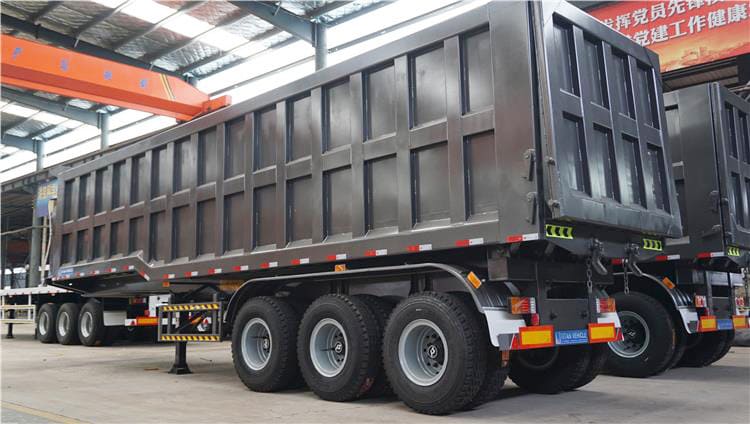

3 Axle Tipper Trailer for Sale with Lower Price Near Me in Tanzania

3 Axle Tipper Trailer for Sale with Lower Price Near Me in Tanzania

3 Axle Tipper Trailer for Sale with Lower Price Near Me in Tanzania

3 Axle Tipper Trailer for Sale with Lower Price Near Me in Tanzania

3 Axle Tipper Trailer Specification:

Dimension: 8500mmx2500mm x3950mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(m³): 35m³

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

3 axle tipper trailers details video

Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click " TITAN Tipper Semi Trailer" to get detailed videos!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
