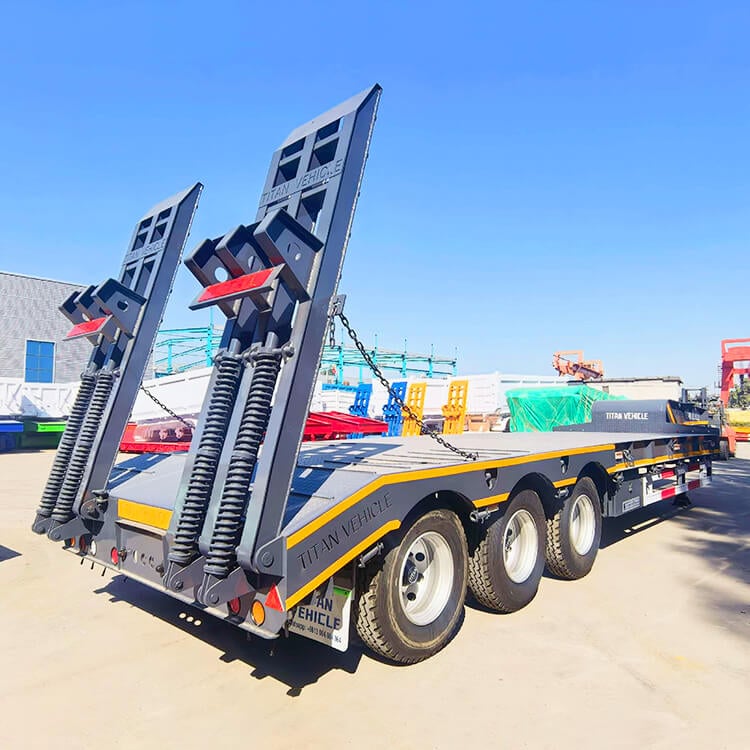

3 Axle Lowbed Trailer

Video of 3 Axle Lowbed Trailer

Description of 3 Axle Lowbed Trailer

We have an industry-leading automated semi-trailer production line, combined with exquisite craftsmanship and strict quality control standards, ensuring that every Titan 3 axle lowbed trailer in Cameroon delivers exceptional quality and durability. Thanks to our efficient standardized production process and ample stock of spare parts, we can offer highly competitive factory prices and fast delivery services to help your transport projects get started on time and run efficiently.

With outstanding load-bearing performance and ultra-high reliability, our 3 axle lowbed trailer has been successfully exported to many countries and regions worldwide, earning the widespread trust of international customers. We deeply understand the strict demands of heavy-haul transport for equipment stability, which is why we provide up to a 5-year after-sales warranty and professional technical support throughout the entire process, completely relieving your worries.

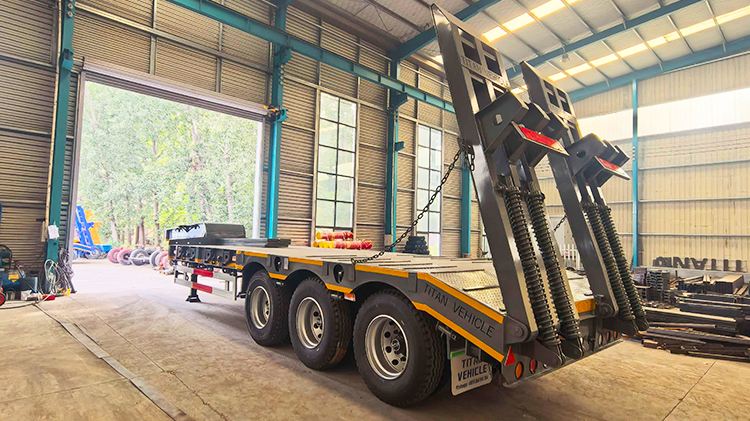

Titan 3 Axle Lowbed Trailer in Cameroon

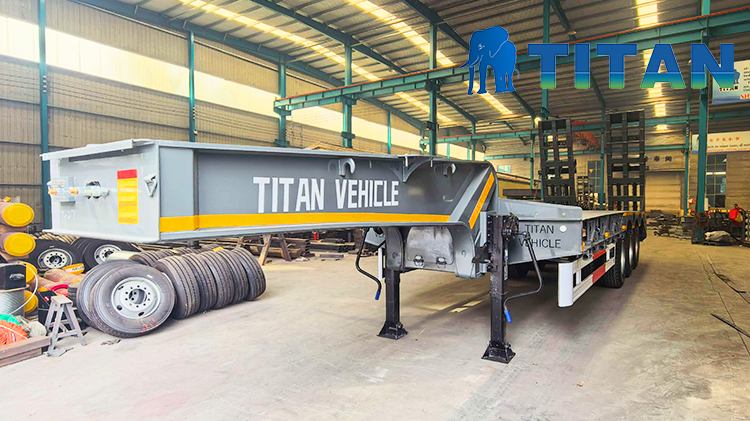

Titan 3 Axle Lowbed Trailer in Cameroon

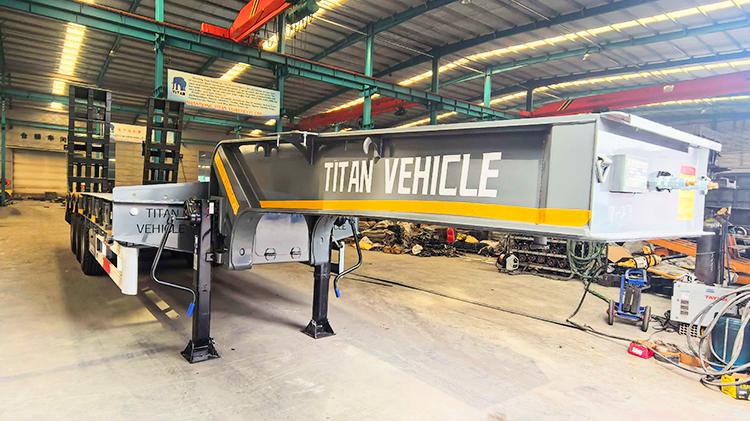

Titan 3 Axle Lowbed Trailer in Cameroon

Titan 3 Axle Lowbed Trailer in Cameroon

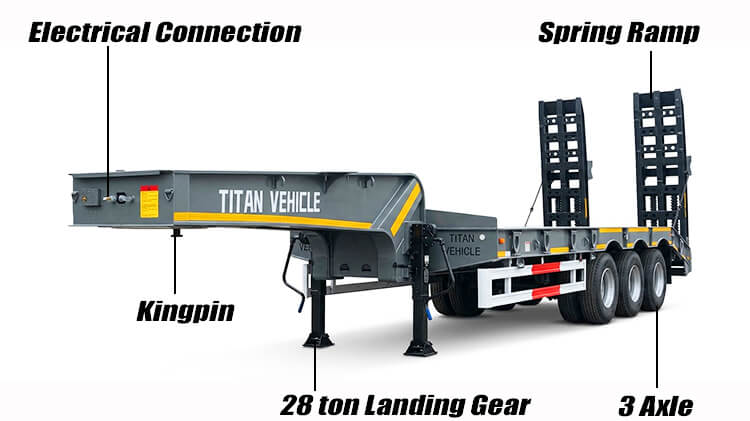

Specification of 3 Axle Lowbed Trailer

Loading capacity: 60-80 ton

Overall dimension: 13000mm*3000mm*3750mm

Axles: 3 axles, TITAN brand

Tire: 12 units, 12R22.5

Suspension: Mechanical suspension

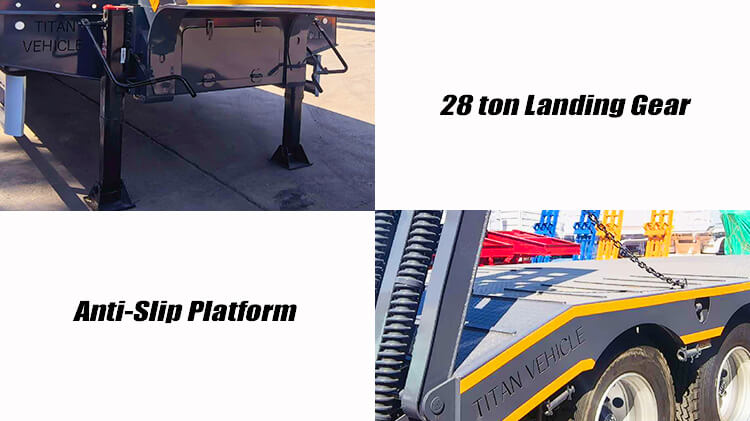

Landing gear: 28 ton

Ramp: Spring ramp

Kingpin: JOST brand 2.0 or 3.5 inch

Valve: WABCO valve

Light: LED light

Advantages of 3 Axle Lowbed Trailer

1. This Titan 3 axle lowbed trailer in Cameroon is welded using high-quality, high-strength steel. We have added extra reinforcements to key stress areas such as the gooseneck and chassis to ensure high load capacity and prevent deformation when transporting heavy equipment, thus extending the trailer's service life. Even under a full 60-ton payload and harsh conditions on bumpy roads, the overall vehicle structure remains solid and stable.

2. This Titan 3 axle lowbed trailer in Cameroon is equipped with three high-quality 13-ton heavy-duty axles, paired with a mechanical suspension system specifically optimized for rough road conditions. This system scientifically and evenly distributes cargo weight across all axles and tires, effectively absorbing strong impacts from uneven surfaces. This not only improves the trailer's off-road trafficability on unpaved roads, but also significantly extends the service life of both tires and axles.

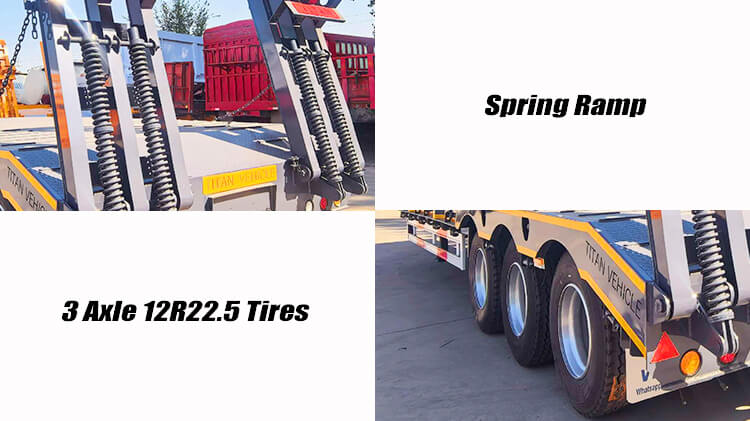

3. This Titan 3 axle lowbed trailer in Cameroon comes with widened and reinforced heavy-duty spring ramps. The internal structure is specially reinforced to withstand concentrated loads when heavy machinery climbs up, preventing rear-end deformation. Additionally, the spring ramps can be easily operated by a single person, and their length is specially designed to create a gentle slope with the ground for smooth equipment loading and unloading.

4. The loading platform of this Titan 3 axle lowbed trailer in Cameroon is paved with high-strength, anti-skid checkered steel plates. High-density heavy-duty lashing rings and rope hooks are fitted on both sides of the cargo deck to securely lock down various irregular heavy loads, ensuring safe and worry-free transport.

Send us a message now to chat with our specialists and get FOB/CIF price!
