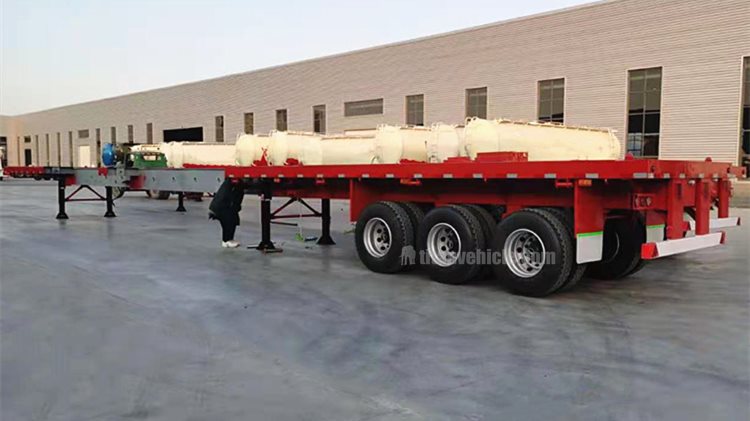

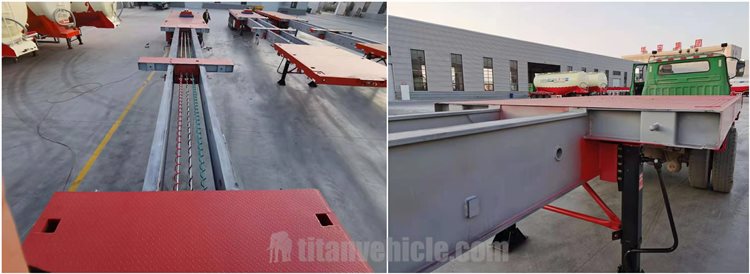

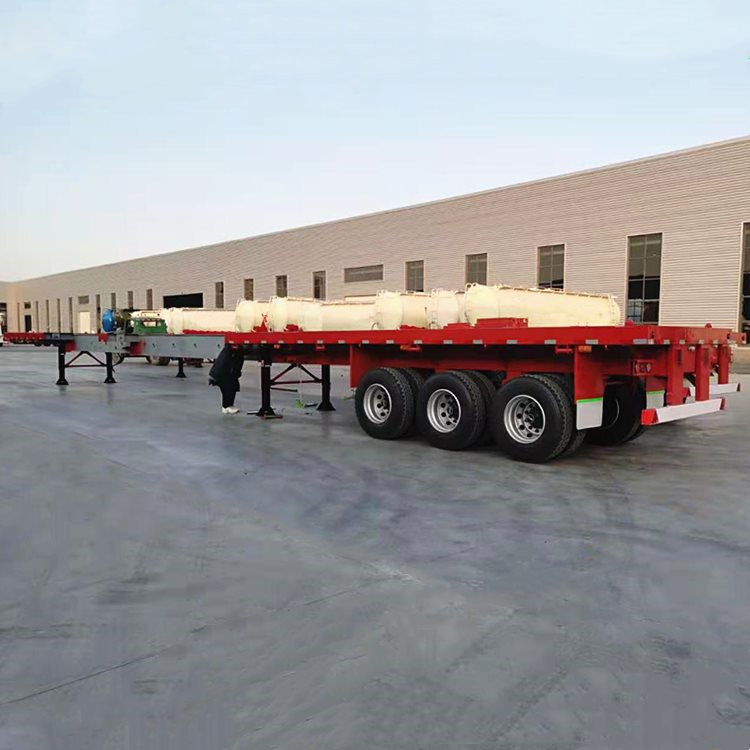

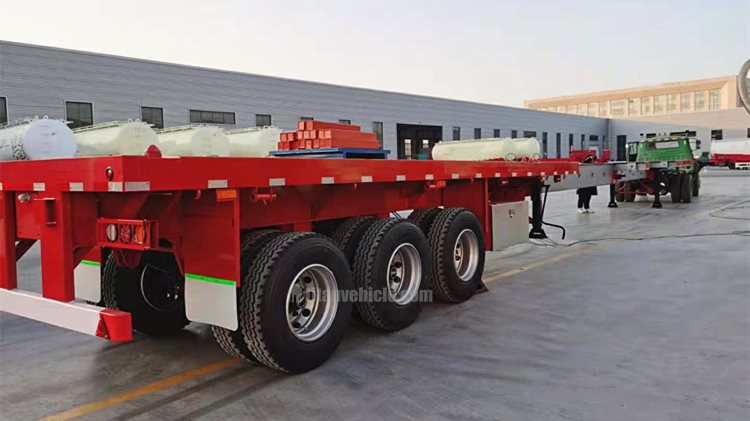

An extendable flatbed trailer configuration is a trailer mechanism that is designed and adapted to be towed through the use if a tractor truck travelling along a roadway.
Longitudinally extendable flatbed trailer is commonly used to transport very long cargo, like tanks and windmill blades and bridge sections among other similar-like cargo.
To take these loads, the trailer is extended lengthwise. When it is not carrying any load, it needs to be adjusted back to a short length. Its application and use should, however, be based on the stipulated local laws and driving safety.
Transport :long rails, pipes, 20/40ft container
Extend: 12.5m to 24m
Floor : 3 mm checkered plate
Axles:3 axles
Suspension:Mechanical spring suspension
Tire:12pcs
King pin:2" (50#) or 3.5"(90#) high tensile steel bolted type
Landing gear:JOST
Brake system: WABCO
1. Strong trailer frame was made from T700 steel.
2. All cross beams are completely reinforced
3. Heavy duty type suspension
4. Strong container lock stand
5. Mechanical, airbag and bogie suspension to meet your demand transportation demand.
