Different Parameters, Different Price. Price Reference Only.
TITAN 3 Axle 60 Ton Lowbed Trailer for Sale is a heavy-duty vehicle that is to transport heavy, wide, and tall cargo. 60 Ton Lowbed Truck Trailer are used in different industries. We can customize the Lowbed for Sale according to your needs.
We TITAN produce very durable 3 Axle 60 Ton Lowbed Truck Trailer for Sale with high strength to meet the transport needs. We use high strength steel material to ensure the capacity, the load can be up to 60 to 100 ton payload. The loading ramps are made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.
60 Ton Lowbed Trailer for Sale is a heavy-duty vehicle that is to transport heavy, wide, and tall cargo. 3 Axle 60 Ton Lowbed Trailer for Sale are used in different industries: heavy vehicles, rail vehicles, mining machinery, forestry machinery, construction, agricultural, etc.
We can customize the Lowbed Trailer for Sale according to your needs.
3 Axle 60 Ton Lowbed Truck and Trailer for Sale in Nigeria Lagos
3 Axle 60 Ton Lowbed Truck and Trailer for Sale in Nigeria Lagos
3 Axle 60 Ton Lowbed Truck and Trailer for Sale in Nigeria Lagos
1. Main beam adopts HG high strength steel, with high loading capacity.
2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.

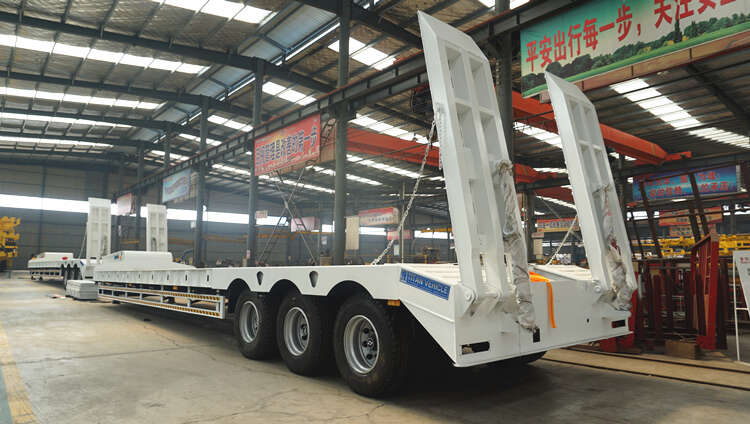

3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.
4. polyurethane paint, with long service lift, and avoid the vehicle get rust.
5. World famous brand spare part, ensure high quality and save costs.
Overall dimension: 13000mm * 3000mm *3400mm
Loading capacity(T): 60 Ton
Axle: 16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: Spring ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Tri axle lowbed trailer details display video
Through this videos, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
