3 Axle 60 Ton Fence Truck Trailer
3 Axle 60 Ton Fence Truck Trailer

3 Axle 60 Ton Fence Truck Trailer

12000 USD

Different Parameters, Different Price. Price Reference Only.



TITAN can customize the fence semi trailer for you. 3 axle 60 tons fence trailer is the most popular model in Sudan.

SKU: 3 Axle 60 Ton Fence Truck Trailer
GTIN: 06975766111731
MPN: TITAN9405042
Brand: TITAN

Product Description:

Fence semi trailer was popular by logistics companies as its multipurpose application. It uses to load a wide range of products and materials, like sand, bags, poultry, etc. Also some bulk cargo, very widely used in the transportation industry.

TITAN cargo fence trailer deeply loved by foreign customers due to main material used high quality steel-Q345. It has high-strength,strong and sturdy features, stability and safety when operating in harsh road conditions.

In addition, the trailer accessories and configuration all adopt international famous brand and China famous brand, this makes the trailer not only increase long serivce life but aslo improve operating efficiency and save maintenance costs.

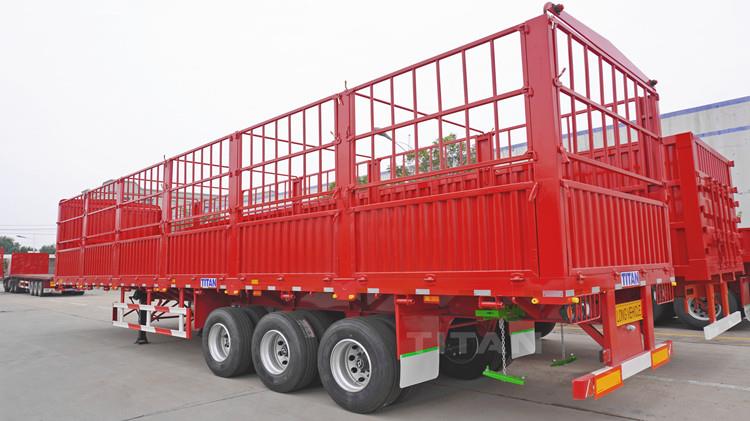

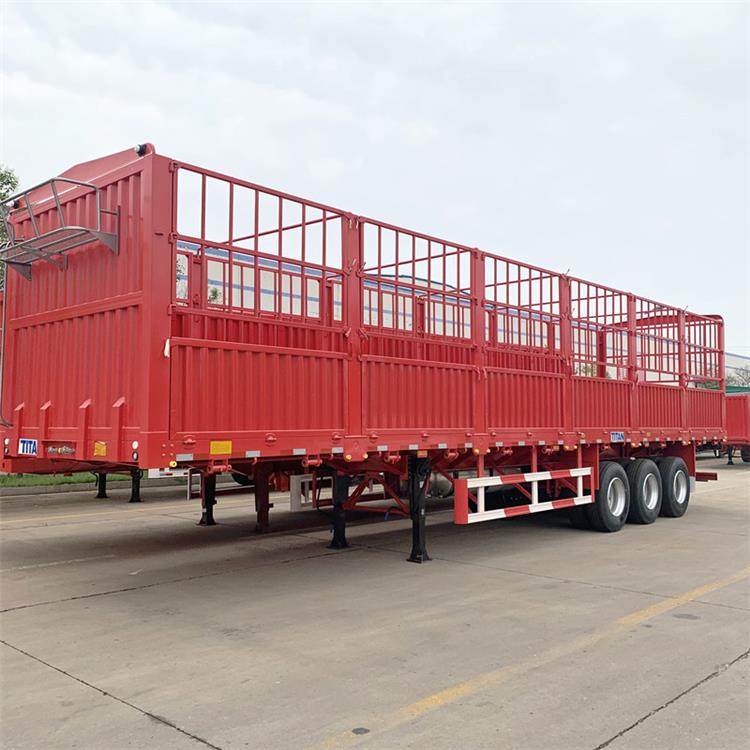

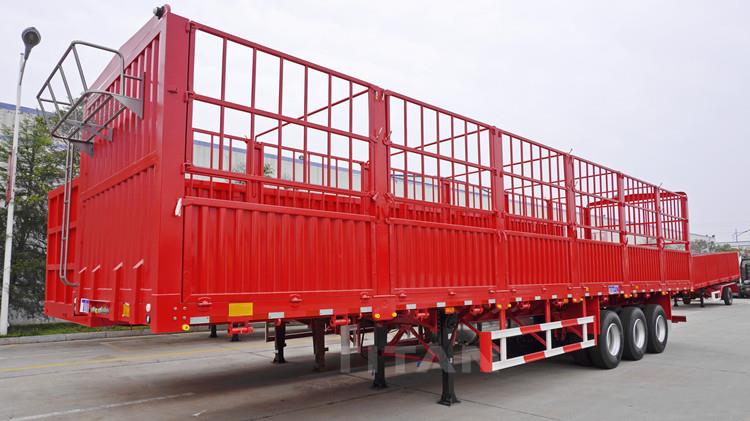

3 Axle 60 Ton Fence Cargo Truck Trailer for Sale - TITAN Vehicle

3 Axle 60 Ton Fence Cargo Truck Trailer for Sale - TITAN Vehicle

3 Axle 60 Ton Fence Cargo Truck Trailer for Sale - TITAN Vehicle

3 Axle 60 Ton Fence Cargo Truck Trailer for Sale - TITAN Vehicle

3 Axle 60 Ton Fence Cargo Truck Trailer for Sale - TITAN Vehicle



Specification:

Tare Weight: About 8.3T

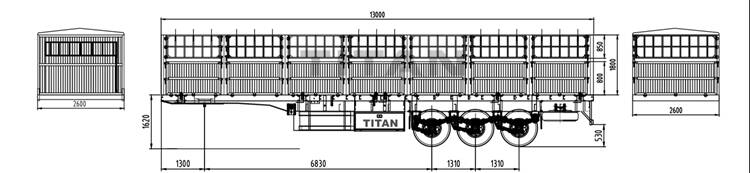

Dimension(mm): 13000x2600x3420mm

Trailer Sides: 1800mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

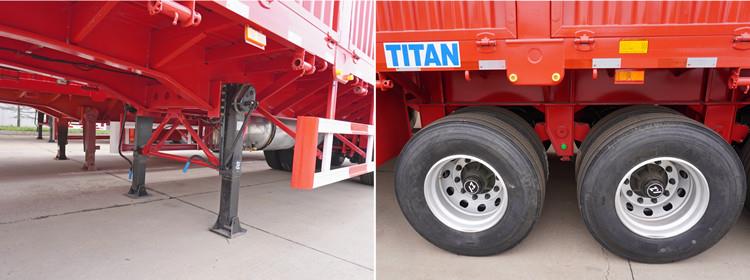

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

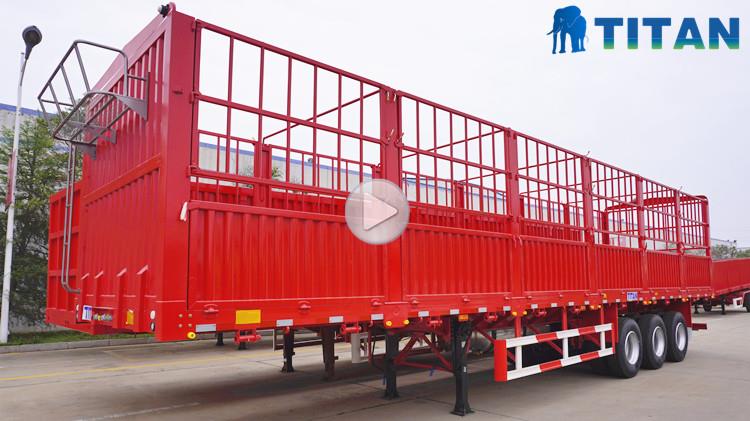

Video of tri axle 60t fence cargo truck trailer



Through this video, you can learn about different types of fence semi-trailers, as well as the process, testing, packaging and customer feedback, etc.



Please click "TITAN Fence Trailer" to get detailed video!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
