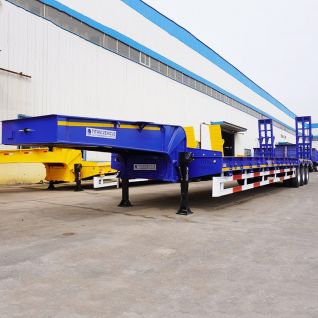

3 Axle 80 Ton Low Bed Trailer can carry 80 tons of goods. Has Heavy duty mechanical spring suspension, with a high loading capacity. Its main cargo platform is low, which ensures the stability of transportation.
TITAN 3 axle 80 ton low bed trailers are widely used in heavy machines transportation.
TITAN low bed semi trailer can satisfy the concentrated force, the anti bump, the distortion resistance and adopts HG60 High Strength Steel Material. we use it to make sure that our TITAN Excavator Trailers is with a long service life and to avoid unnecessary maintenance.
1. Main beam adopts HG high strength steel, with high loading capacity.
2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.

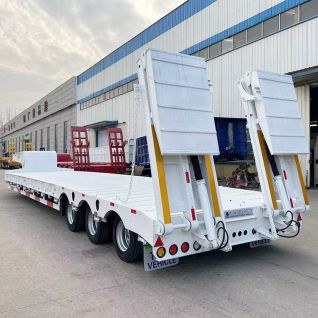

3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.
4. polyurethane paint, with long service lift, and avoid the get rust.
5. World famous brand spare part, ensure high quality and save costs.
3 Axle 80 ton LowBed Trailer frame
Overall dimension: 16000mm * 3000mm *3400mm
Loading capacity(T): 40-100T
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: Spring ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
3 Axle Lowbed trailer details display video

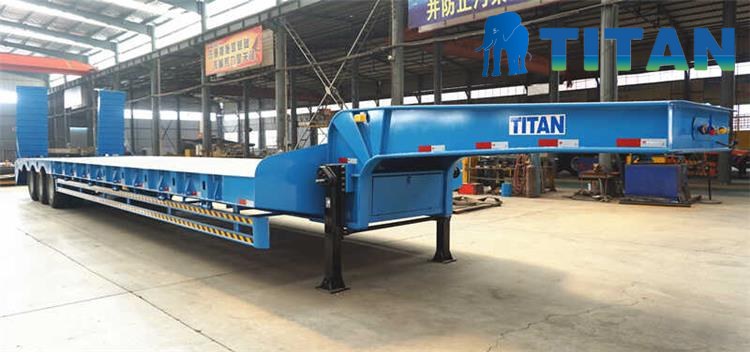

Lowbed trailer in production
 |
 |
 |
 |
