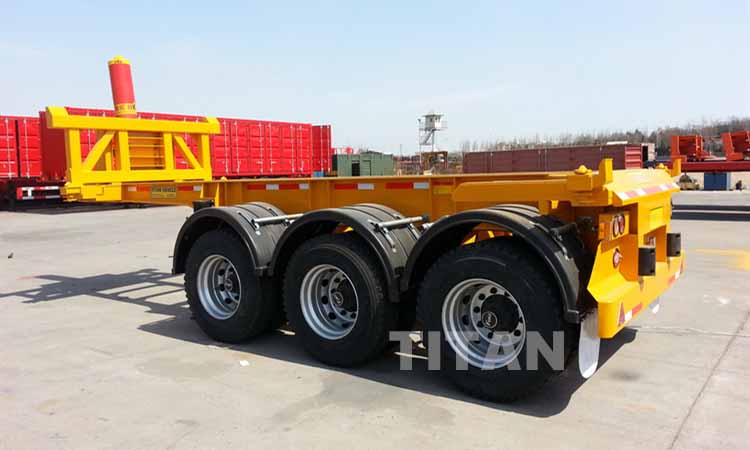

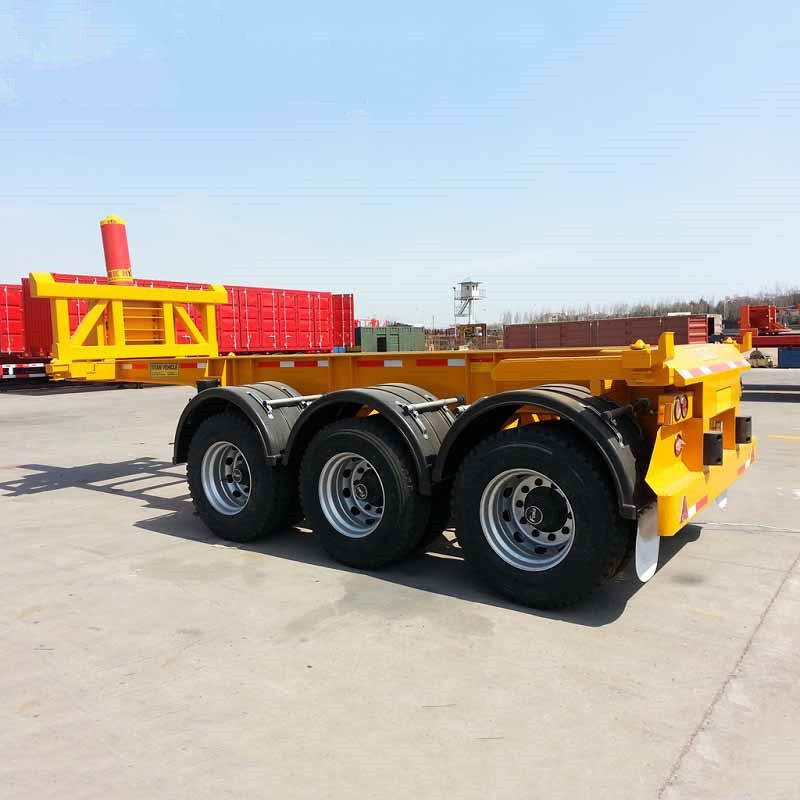

20ft Tipping Container Chassis

Product Description：

The 20ft Tipping Container Chassis comes with a hydraulic lifting cylinder that contracts longitudinally to facilitate loading and on the other hand, they extend in an outward manner to enhance the offloading process.

TITAN adopts high strength steel, offering all the durability of high-tensile-strength steel and unique structure design to maximize payload to increase your profitability. Main parts, especially the stress point, 20ft Tipping Container Chassis for Sale adopt the reinforced design.

The 20ft Tipping Container Chassis could bear the bad road conditions. We reinforce the sides with high tensile strengthening rip and the channel steel reinforced enclosure shape design. The sides are welding molding which increasing the loading capacity. This 20ft Tipping Container Chassis could be used for nearly 10 years.

20ft Tipping Container Chassis for Sale in Uganda

Specification:

Overall dimension: 6700mm * 2500mm *2900mm

Loading capacity:  40T

Suspension：Heavy duty mechanical suspension

Tipping system: 196 hydraulic cylinder

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click " TITAN Tipper Semi Trailer" to get detailed videos!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
