Different Parameters, Different Price. Price Reference Only.
Titan uses Q345 high strength steel to produce the fuel tank trailer,which is the best material to fuel tank trailer.We use the best oil tank production machines, our manufacturing can make the tank body of the oil tank produced at one time.
TITAN is a brand specialized in making 2 axle 43000 litres fuel tanker, we have a history of many years, we have used the most suitable tires, which have good shock absorption and ensure driving safety,2 axle 43000 litres fuel tanker is a motor vehicle used to transport liquid and gas fuels on the road. It is mainly used for the transportation and storage of petroleum derivatives such as gasoline, diesel oil, crude oil, lubricating oil and coal tar. Generally, the capacity is relatively large, and it is divided into thermal insulation or non-thermal insulation, pressure-resistant or non-pressure-resistant.
For 2 axle 43000 litres fuel tanker ,our company has always been based on the principle of quality,and we care about the details like:Before spray-painting, the whole tank trailer for many times sandblasting rust, spray anti-rust paint, spray primer, spray top paint, three layers of paint spraying. The paint will last five years.

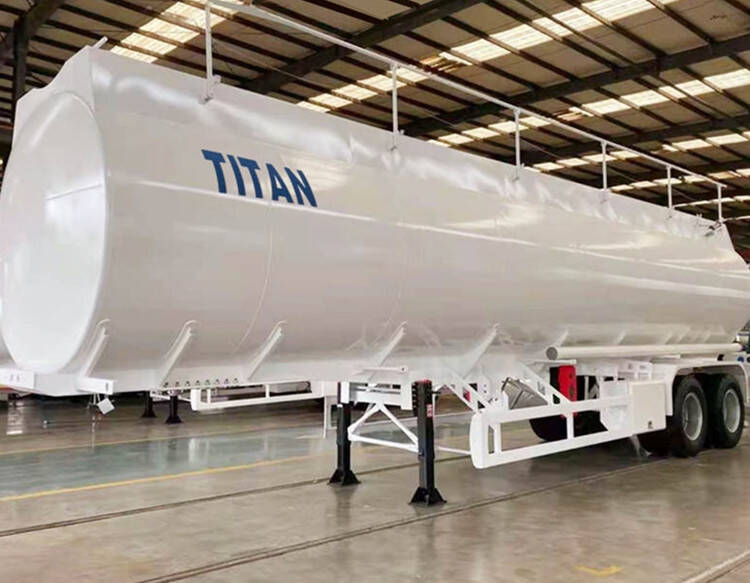

2 axle 43000 litres fuel tanker for sale
2 axle 43000 litres fuel tanker for sale
2 axle 43000 litres fuel tanker for sale
Dimension: 11500mm * 2500mm *3700mm
Tare Weight (semi trailer): About 8000-12800kg
Total volume(m³): 25-60m³
Tank Body Material: 5mm or 6mm/Q235 carbon steel
End plate: 5mm or 6mm/Q235 carbon steel
Manhole Cover: Carton steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Compressor: BOHAI 10m³/12m³ or other brands
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Optional
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 2 axles,13T,BPW brand
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers
1. With safety devices: the manhole is an explosion-proof large cover. The bottom outlet of the tank is equipped with an emergency shut-off valve.
2. The tank body is automatically welded by an advanced large-scale special welding machine.
3. The TITAN tanker body is longitudinally welded. Ensure the safety of the tanker and increase the service life.
4. Water filled test equipment Water tank: To ensure the high sealed of tank body and avoid the leaks oil.
5.There are ladders at the front and rear of the vehicle, and there are guardrails and anti-skid plates above the walking platform to ensure the safety of the staff.
Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
