4 Axle 100 Tons Equipment Lowboy Trailers
4 Axle 100 Tons Equipment Lowboy Trailers

4 Axle 100 Tons Equipment Lowboy Trailers

4 axle 100 tons equipment gooseneck lowboy trailers are with high tensile structure steel with tensile and durable construction.

Product Description:

TITAN gooseneck lowboy trailers for transport excavator and construction equipment, large machinery transportation .We can make the 2/3/4 axles lowboy trailers, with the capacity of 60/80/100/120 ton.

To meet your transport needs and your local regulations, we can customize different configuration Hydraulic removable detachable goose neck lowboy for you.

4 Axle 100 Tons Equipment Lowboy Trailers

100 ton lowboy trailer for sale

4 Axle 100 Tons Equipment Lowboy Trailers

4 axles rgn lowboy semi trailer

4 Axle 100 Tons Equipment Lowboy Trailers

4 Axle 100 Tons Equipment Lowboy Trailers



Specification:

Dimension: 16500mm x 3000mm x 2500mm

Loading capacity(T): 50-150T

Axle: 4 axle

Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust



Advantage:

1. The lower working platform height for the transport of high and voluminous loads.

2. TITAN lowboy trailer is with high tensile structure steel with tensile and durable construction.

3. Main beam adopts submerged arc welding technology, improve the loading capacity and meet load requirements on bad road condition.

4. The loading ramps are made by high strength steel, with high loading capacity, which will not happen to the deformation when carrying heavy equipment.

5. The suspension ensures its have high loading capacity, and increase its capacity to twisting forces, shock, bump.

6. World-famous brand spare part, ensure high quality and save costs.

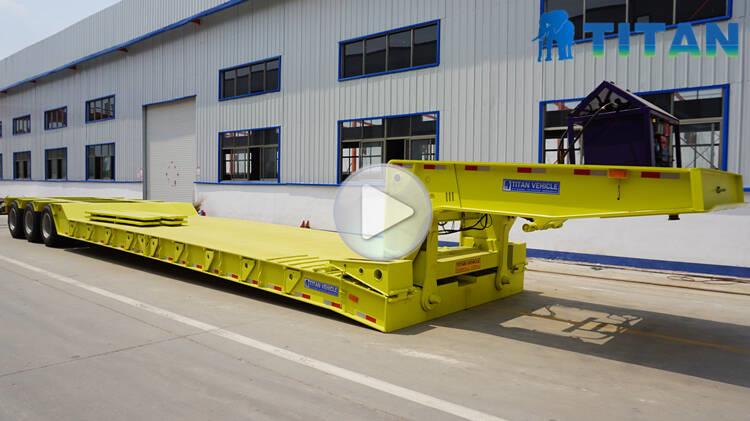

Detachable Gooseneck Trailer 4 Axle details display video

Through this video, you can learn about different types of lowboy semi trailers, as well as the process, testing, packaging and customer feedback, etc.

3 line 6 axle Lowboy Trailers

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
