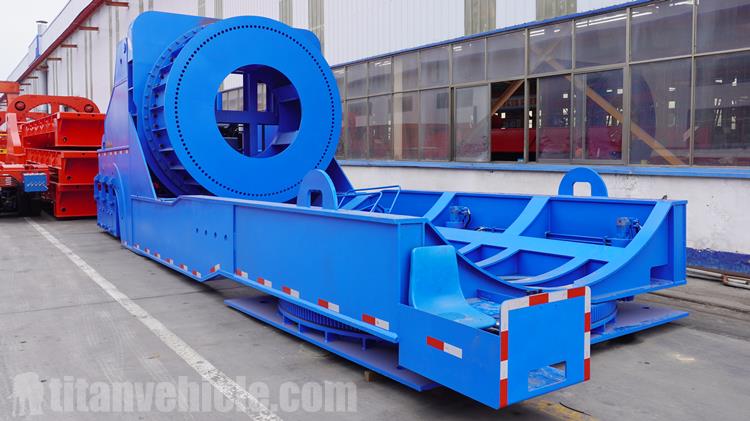

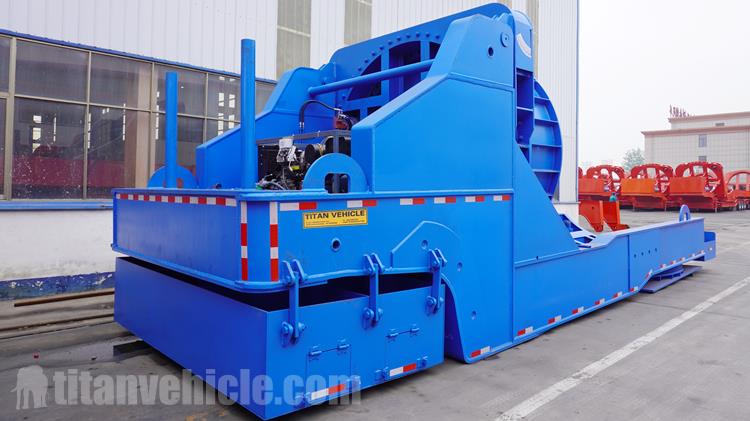

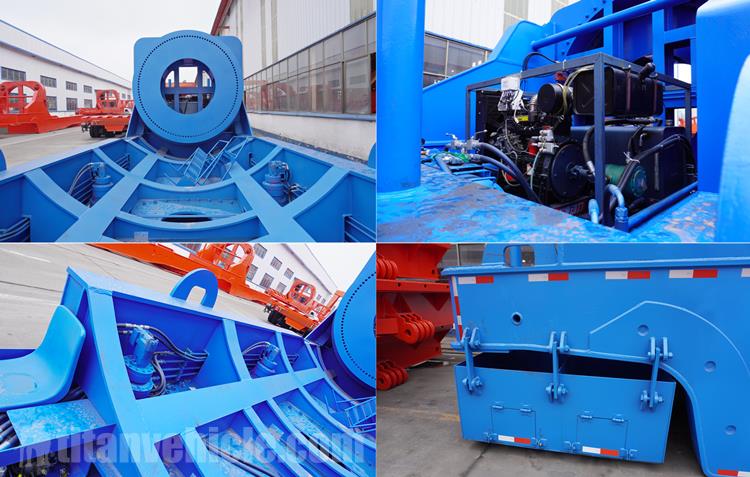

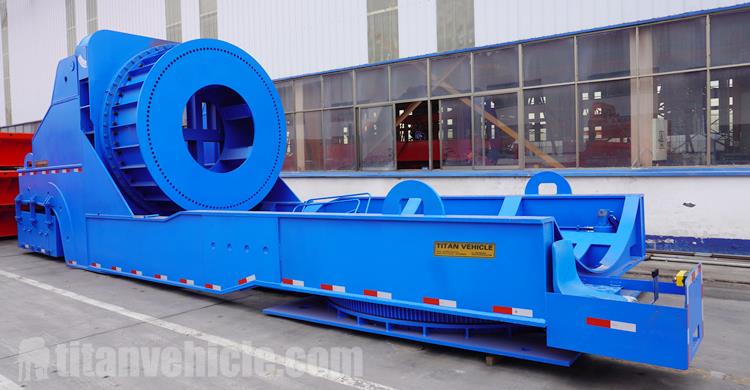

70M Windmill Blade Adapter for Sale In Vietnam

Our Vietnamese client purchased 5 untis Windmill Blade Trailer last year for their transportation project. Due to customer project requirements, it is now necessary to purchase another Windmill Blade Adapter. According to the needs of customers, they have a great need for Windmill Blade Adapter to transport the blades. So found Jacky and wanted to buy the windmill blade adapter.

These types of windmill blade adapters are used to transport turbine blades on mountain roads and curved roads as well. Because of the fact that extendable trailers are too long, when it comes to a mountain road, it is hard to steer hence the need for the special blade trailer.

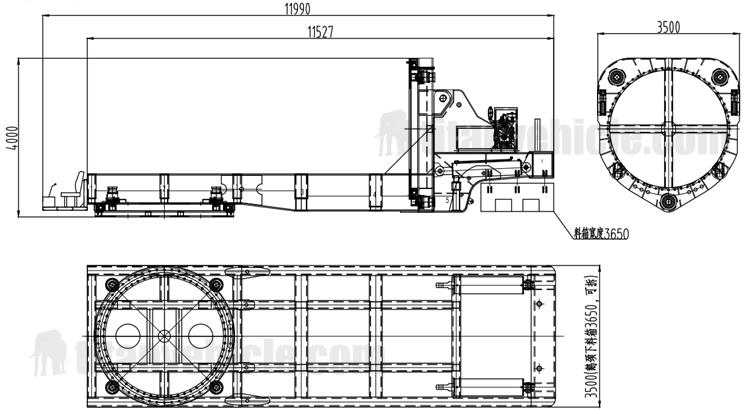

70M Windmill Blade Adapter for Sale In Vietnam

The design is made in such a way that the blade adaptor can lift up and down making it easier for the trailer to steer easily. So many types of wind blade lifter adaptors, wind blade adaptor, windmill blade adapter worldwide.

The transportation of windmill blade adapter equipment belongs to super long and indecomposable large objects. It is technically difficult to protect safety protection equipment without damage and injury. To prevent rear running vehicles from back end collision is a safety difficulty in transportation; Besides nacelle, wind tower section, and other windmill parts, the wind blade is long and lightweight, also fragile and tender.

How to make a safe and efficient transport for those blades is our trailer’s purpose. If you want to transport the wind blade to mountain areas or pass narrow roads with U-turns, you may need a wind blade lifter adapter to solve the problem.

Analysis and comparison of windmill blade adapters transportation and ordinary flat vehicle transportation

70M Windmill Blade Adapter for Sale In Vietnam

The advantages of windmill blade adapters transportation compared with ordinary flatbed vehicle transportation

When the blade length is 51m and the height is 35°, the non-interference height is 32.28m, and the area is 641㎡; while the horizontal transportation is only 2m without interference, the area is 62.6m³; the area of the renovation project involved in the curve is reduced by 10 times.

Transporting the blades by lifting can better avoid high mountains and cliffs, or houses and buildings, so as to realize the rapid transportation of blades. At the same time, this method can also reduce the cost of road reconstruction and house demolition, and help improve the efficiency of blade transportation and engineering benefits.

70M Windmill Blade Adapter for Sale In Vietnam

The disadvantages of windmill blade adapters transport compared to ordinary flatbed transport

Due to the restrictions of expressways and most grade roads, wind turbine equipment can only be transported by ordinary flatbed trucks on the national public transportation network. Therefore, when mountain wind farms use special vehicles for transportation, it is necessary to choose a suitable location near the wind farm area to set up a midway transfer site. With reference to previous mountain wind power projects, if a wind farm with an installed capacity of 50MW uses special transportation, the transportation cost will need to be increased by about 3.5 million yuan.

After the blade is lifted, the height increases to more than 30m, which will increase the net height requirements along the line. Compared with ordinary flatbed truck transportation, it will increase the removal of height-restricted objects (such as crossing highway cables, pipes, branches, etc.). Secondly, since the center of gravity of the vehicle rises after the blade is lifted, which is not conducive to the stability of transportation, it is necessary to place a counterweight at the front of the windmill blade trailer, and at the same time, avoid transportation in strong winds.

70M Windmill Blade Adapter for Sale In Vietnam

Here is the Extendable Windmill Blade Trailer transportation details display video. This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
