Wind Blade Adaptor will be sent to Vietnam.

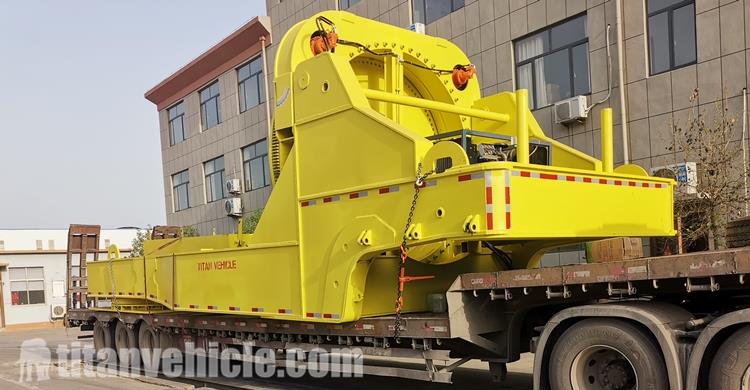

Wind Blade Adaptor for Sale In Vietnam

This is a Wind Blade Adaptor purchased by a Vietnamese customer. Because the customer has a base for the wind blade adaptor, the customer only purchased the wind blade adaptor. The sales manager and Jacky discussed it on WeChat for a long time. The customer chose us because the quality of TITAN is better than other manufacturers. Many local customers are using TITAN semi trailer. In addition, the wind blade adaptor requested by the customer can be customized in TITAN. Below is the picture of the shipment.

The large turning angle of the ant is 45°, the cargo platform is a modular cargo platform, and the cargo platform can be combined longitudinally; the wind blade adaptor a dual-pipe air-cut brake system, and is equipped with a hand brake device, which can be parked independently by a supporting device.

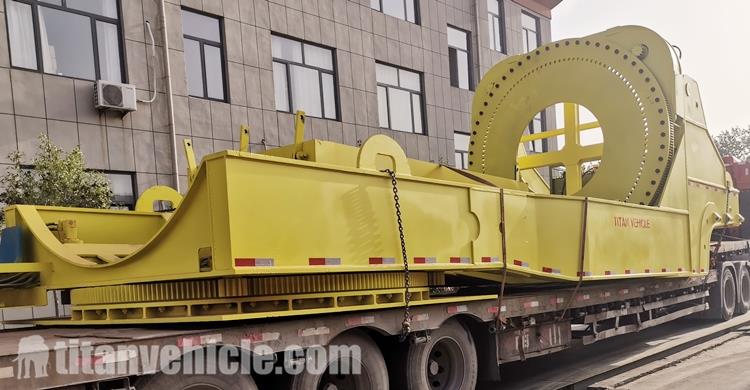

Wind Blade Adaptor for Sale Price

Hydraulic suspension system

The lifting of the entire cargo platform is realized by the hydraulic suspension. The hydraulic suspension is composed of a cantilever, a swing arm and a suspension cylinder. The cantilever and the swingarm and the suspension cylinder are connected by a ball joint.

When the cargo platform is lifted, the suspension cylinder is extended under the action of hydraulic pressure, the angle between the cantilever and the swing arm increases, and the cargo platform is raised to the highest position. When the cargo platform is lowered, the suspension cylinder is suspended under the action of the cargo platform and the weight of the cargo.

The size is reduced, the cargo platform is lowered to the lowest, and its lifting stroke is 400mm. When driving, it can adapt to the uneven road surface through the telescopic movement of the cylinder. In addition to the functions of lifting and leveling of the whole Wind Blade Adaptor, each suspension, more importantly, the expansion and contraction compensation function of the hydraulic cylinder ensures the uniform load of the wheelset during operation and avoids slipping, so as to adapt to uneven road conditions and maintain safe operation reliable.

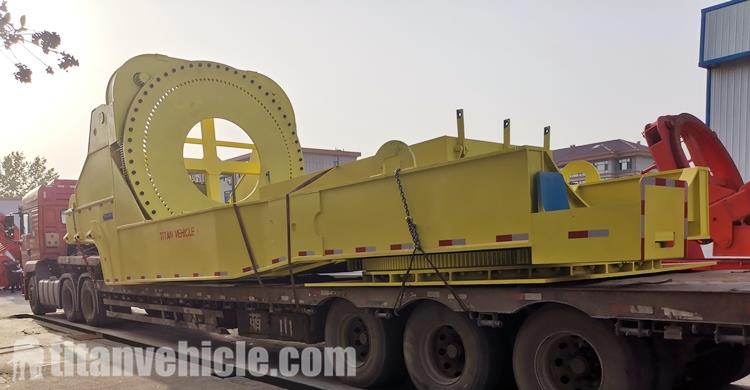

Wind Blade Adaptor for Sale Manufacturer

Cargo platform

The cargo platform is composed of three parts: the front cargo platform, the middle cargo platform and the rear cargo platform. Each part of the cargo platform can be combined and spliced with fork joints. The entire cargo platform is a frame structure. The cargo platform is welded by weighing and longitudinal beams.

The longitudinal beams use an I-shaped structure, which has the characteristics of high strength and simple technology. The cross beams are made of square steel and channel steel; There are seamless steel pipes welded under the lower wing plate of the main longitudinal beam.

The seamless steel pipes are distributed in a truss shape. The purpose of welding seamless steel pipes is to increase the rigidity of the cargo platform and reduce the amplitude of the up and down vibration of the cargo platform during driving.

Because the cargo bed is long, the turning radius of its driving is large, and the passability is not good. Therefore, in the no-load state, the front cargo bed and the rear cargo bed are directly cross-connected to improve the passability of the whole Wind Blade Adaptor

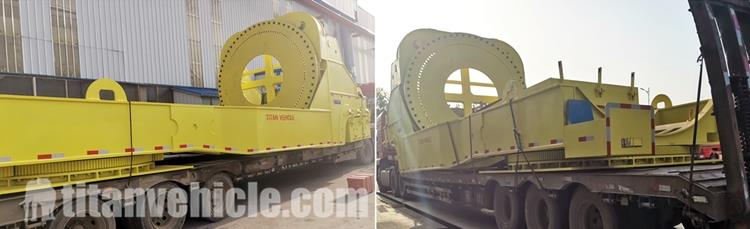

Windmill Rotor Blade Lifter for Sale

Steering system

The steering system is the key to the entire design. It is related to the safety of the vehicle and the stability of the operation. The steering system of the vane transporter is composed of a central bogie, a transverse tie rod, a longitudinal tie rod, a transverse steering arm, a longitudinal steering arm and a steering cylinder.

The steering system of the windmill blade trailer adopts mechanical-hydraulic combined steering, that is, the steering handle of the hydraulic valve block is manually manipulated to allow the hydraulic oil to enter the steering cylinder to control the expansion and contraction of the cylinder piston rod.

The push and pull force of the cylinder piston rod acts on the central bogie and horizontal The pull bar, the transverse steering arm, the longitudinal steering arm, and the longitudinal tie rod realize the steering of the whole Wind Blade Adaptor for sale, and the maximum steering angle is 45°. It should be noted that because the overall dimensions of the vane transporter are nearly 62m long and the turning radius is large, it is necessary to slow down when encountering special road conditions such as bends and narrow roads, and require specialized personnel to operate at the rear of the vehicle. The steering valve handle realizes manual steering.

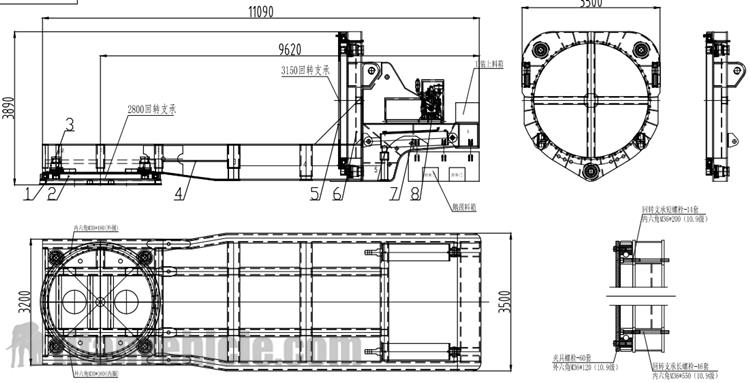

Drawing of Windmill Rotor Blade Lifter for Sale

Here is the Extendable Windmill Blade Trailer transportation details display video.

This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
