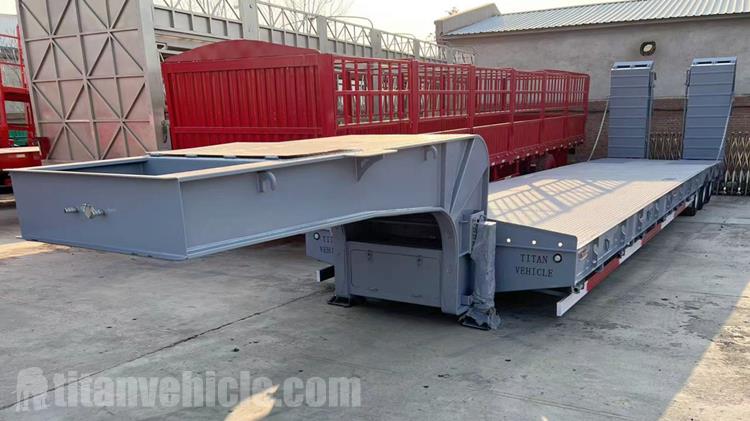

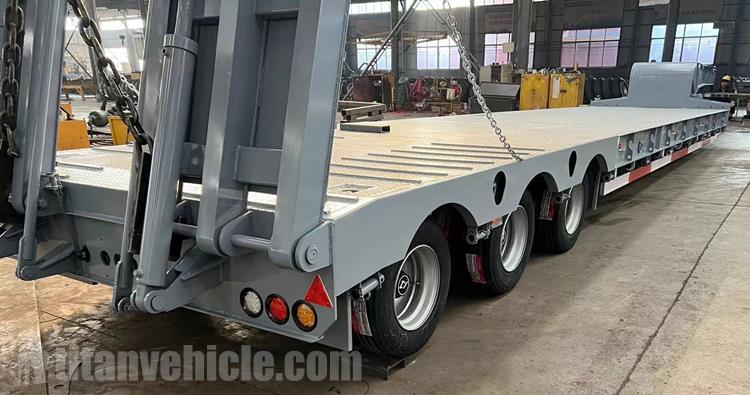

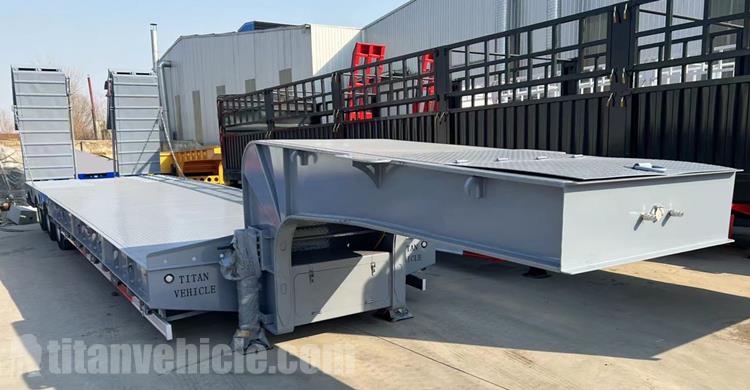

Tri Axle Low Bed Trailer with Hydraulic Ladder for Sale In Philippines

Filipino customers saw our flatbed semi trailer locally. They liked TITAN's semi trailer very much. So they found Annie, the sales manager. The customer mainly transports tractors, so according to the customer's needs, we recommend tri axle 50 ton low bed trailer. To a lot of TITAN's low bed semi trailer. If there are friends who need it, customers will also recommend our company.

Tri axle 50 ton low bed trailer Features

1. The side beams are generally channeled steel or bending parts. At present, most trailers use channel steel, and there will be more side beams for light body hanging bending parts, because the requirements for strength are not too large. The supporting beam is the through-beam, and most of them are now W beams.

2. The traction pin is an important component that connects the tri axle low bed trailer with the tractor and bears the traction force, and is connected with the traction seat. It is generally forged from steel with a chrome alloy structure. There are 50# traction pins and 90# traction pins for different cargo tonnage. Generally, it is limited to the total weight of the 50T trailer and the cargo. The 50# pin is used below 50T, and the 90# pin is used for the above 50T. If it is above 90T, the 90# traction pin is used for insurance.

Tri Axle Low Bed Trailer with Hydraulic Ladder for Sale In Philippines

3. The general tri axle low bed trailer suspension adopts non-independent steel plate stamping rigid suspension, which is composed of tandem leaf springs and suspension supports, which are used to support the load and reduce the impact of the dynamic load of the vehicle. Due to the different uses of special vehicles, there are also different requirements for the design of the suspension.

There are four commonly used suspensions: tandem leaf spring balance suspension, single-point suspension, air suspension, and rigid suspension (one line and two axles).

4. The tri axle low bed trailer axle is the support axle, and the American and German axles are the most popular in China. The axle is connected to the frame through leaf springs and tie rods and suspension devices to support between the frame and the wheels and the force that transmits the load.

5. The electrical system of tri axle low bed trailer consists of seven-pin sockets, cables, air circuits, various lamps, etc., which are used for lighting, safety warnings and air supply for brakes. Generally, you can basically know the quality of the factory by looking at the regularity of the electrical circuit wiring. This is to see the big from the small.

Tri Axle Low Bed Trailer with Hydraulic Ladder for Sale In Philippines

6. The support device of the tri axle low bed trailer is mainly used to support the trailer when it is disengaged, and consists of outriggers, connecting brackets, etc.

7. The tri axle 50 ton low bed trailer protection device consists of side protection and rear protection to protect pedestrians and other vehicles from getting under the semi-trailer. This thing is also fuel-efficient when it is done well. It is called a side skirt if it is done to reduce the wind resistance. It can be done in foreign countries. If it is made into a side skirt in China, it is called "remodeling" and will be punished.

8. Other accessories on the tri axle low bed trailer include tool box, spare tire rack, gantry rack, stakes, etc. There are also some small accessories such as rope tighteners, rope hooks and other highly functional accessories, which should be selected according to the type of goods.

Tri Axle Low Bed Trailer with Hydraulic Ladder for Sale In Philippines

Low flatbed semi-trailer is also widely used for the transportation of various types of machinery and equipment, large objects, road construction equipment, large tanks, power station equipment and various steels.

1. The tri axle low bed trailer has flat plate type, concave beam type and tire exposed type structure, and the longitudinal beam adopts a straight type or gooseneck type. The frame is stepped, and the longitudinal beam section is I-shaped, which has the characteristics of high rigidity and high strength.

2. The main plane of the frame and platform is low, which ensures the stability of transportation and is suitable for carrying all kinds of construction machinery, large-scale equipment and steel.

3. It adopts three-axis balance type, two-axis balance type or rigid suspension, and a mass balance block is installed between the front and rear leaf springs, which can make the deflection of the front and rear leaf springs change in an equal amount so that the front and rear axles are balanced in force;

 4. Tri axle low bed trailer is suitable for the transportation of various mechanical equipment, large objects, road construction equipment, large tanks, power station equipment and machines, with a wide range of uses, high efficiency and speed. The whole vehicle adopts advanced computer-aided design software, and the optimization design is flexible and diverse, and the frame bearing surface is designed according to user requirements to meet the transportation of various special goods.

5. Tri axle low bed trailer is divided into two types: two axles and three axles. Both come with front outriggers. Generally below 13 meters. It used to be 17.5 meters. The load of the full trailer is fully borne by itself, and is only connected with the locomotive by hooks. The locomotive only provides power to help the trailer overcome the frictional resistance of the road.

The full suspension can stand upright on its own tires. Generally about 6.5 meters. Semi-trailer trucks and low-bed trucks must have a water spray system before leaving the factory, because in long-distance transportation, long-term braking will cause the wheels to heat up. Failure to take cooling brakes will reduce the effect or even fail, reducing the impact of wheels, axles, and tires. service life.

Tri Axle Low Bed Trailer with Hydraulic Ladder for Sale In Philippines

You can download video, you can learn about different types of lowbed semi-trailers, like 2axle, 3axle, 4axle lowbed semi trailer, hydraulic ladder lowbed semi trailer, etc. As well as the process, testing, packaging and customer feedback, etc.

This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
