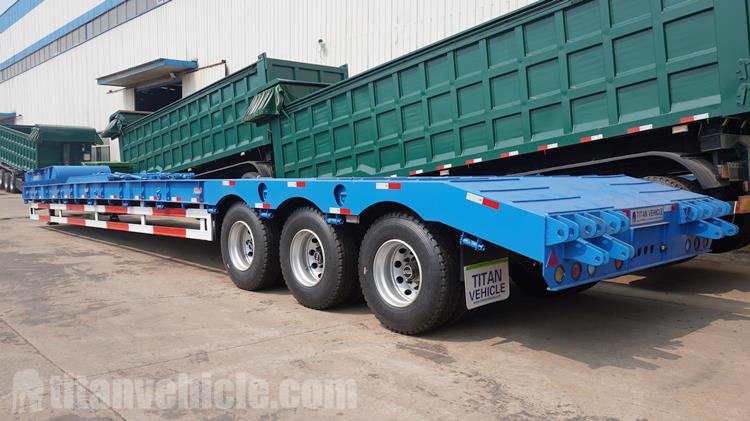

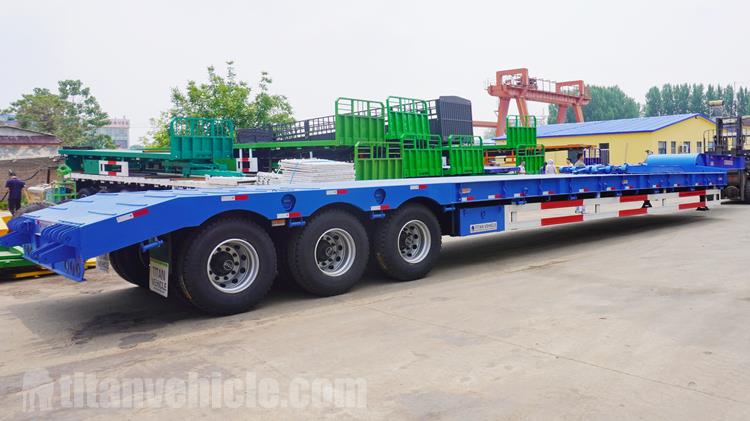

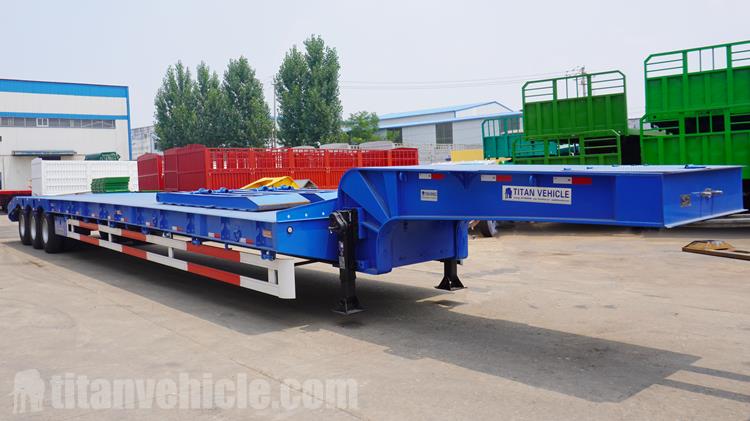

Tri Axle 80 Ton Low Bed Trailer for Sale In Tanzania Dar es salaam

Sales Manager Sophia addresses the needs of client Adamu Ibrahim, who needs to transport machinery and equipment. And the customer expressed the lowbed semi trailer with stable load. The sales manager recommended TITAN's most popular tri axle 80 ton low bed trailer, and introduced the advantages and features of this semi trailer to the customer.

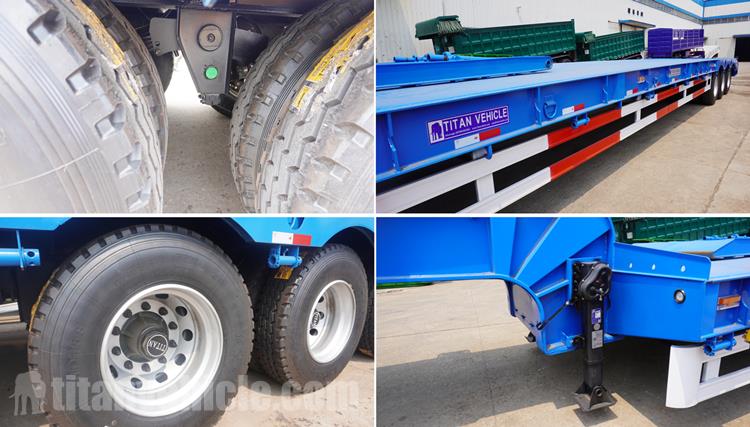

The bottom plate of the tri axle 80 ton low bed trailer is a 5mm thick tread plate, which is thicker than the 4mm bottom plate on the market. The checker plate can also increase the friction between the cargo and the bottom plate, so that the cargo can be more stable.

The tri axle 80 ton low bed trailer uses 6mm thick high strength steel. Moreover, at the welding place with the beam, the reinforcement vertical plate is added, which can effectively prevent the deformation of the vertical plate caused by pressing down on both sides.

The diagonal support of the side beam is a 6mm thick manganese plate, which adopts the "H" shape high-strength steel welding process, and there is one every 50cm. The top of the beam is 20mm thick and 200mm wide; the bottom is 20mm thick and 200mm wide; the middle height is 550mm and 14mm thick.

Tri Axle 80 Ton Low Bed Trailer for Sale In Tanzania Dar es salaam

That's under the bottom plate is the beam. As for the girders, the TITAN 80 ton tri axle low bed trailer is made of Q460C high-strength manganese steel, which has good toughness and has a bearing capacity that is 5 times that of a trailer made of Q345 steel, with a service life of more than ten years.

The side beams are made of T700 high-strength steel, and the side beams of the low plate are of "H" type design with a height of 300mm, a width of 140mm and a thickness of 8mm. The bearing capacity is twice that of other steels, and it will not deform for 10 years.

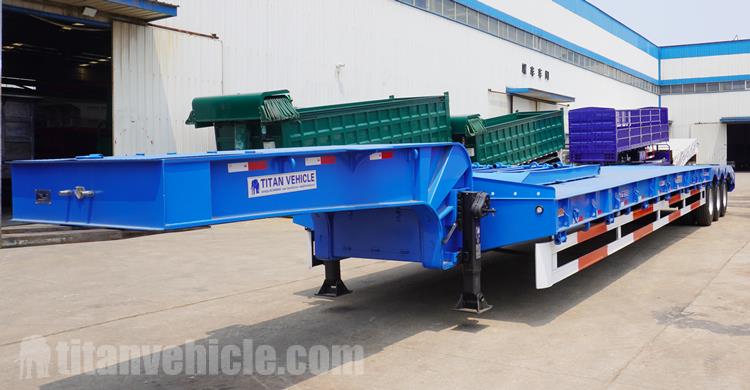

That other factory produced upper and lower wings may only be 140mm wide. Then we can see that the gooseneck has a downward pressure design, which effectively prevents the vehicle from tilting when the vehicle is loaded, and makes it easier to climb.

Moreover, a double-layer vertical plate is used under the gooseneck to reinforce, so that the deformation amplitude will be relatively small when the vehicle is heavily loaded.

Tri Axle 80 Ton Low Bed Trailer for Sale In Tanzania Dar es salaam

Different types of Low bed Trailer

Common Low Bed Trailer

The common low bed trailer has a flat plate type, the cargo plate is a flatbed. There is a ramp at the end of the low bed trailer. The tri axle 80 ton low bed trailer is used to transport normal heavy cargo. It cannot transport cargo with a high height as other low bed trailers.

One of the benefits of using the ordinary low bed trailer for sale is that it is cost-effective. The lowbed trailer is cheaper than other heavy-duty trailers. Another advantage is that the cargo platform is longer. The second half of the ordinary low bed trailers can be used as a cargo platform.

This type of trailer has a higher working platform than other low bed trailers because of the flat plate type. The position of the working platform explains its limitations in transporting cargo with a high height.

Tri Axle 80 Ton Low Bed Trailer for Sale In Tanzania Dar es salaam

Concave Beam Type Low Bed Trailer

The low bed cargo platform is concave and has the lowest load-bearing plane. It is generally suitable for transporting large or ultra-high equipment.

The main advantage of a low bed truck trailer is high stability. The staircase structure lowers the height of the cargo center, which increases stability during transportation. A low bed trailer is commonly used to move heavy equipment and cargo at a high height. It is best suited in countries that have strict height restrictions.

Removable Gooseneck Trailer

Also known as a removable gooseneck trailer. The trailer frame has a stepped shape, and the plane of the cargo platform is behind the gooseneck, so that the main plane of the cargo platform is lowered, which is convenient for loading and unloading and transportation of goods. Our split gooseneck semi-trailer has a detachable gooseneck design on the front, which avoids overturning the body when transporting heavy equipment and ensures the safety of the vehicle and the driver.

Tri Axle 80 Ton Low Bed Trailer for Sale In Tanzania Dar es salaam

You can learn about different types of lowbed semi-trailers, like 2axle, 3axle, 4axle lowbed semi trailer, hydraulic ladder lowbed semi trailer, etc. As well as the process, testing, packaging and customer feedback, etc.

This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
